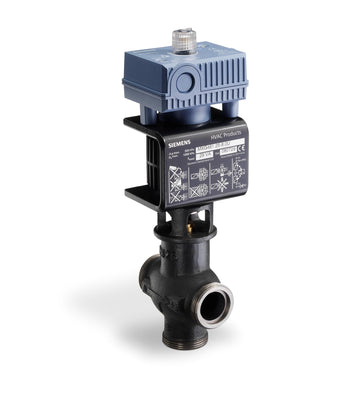

Siemens MXG461.50-30U MAGNETIC VALVE, 2", 2-WAY OR FLOATING, 35.1 CV, 0-10V CONTROL, W/ NPT UNIONS

Product Description

Siemens - MXG461.50-30U Magnetic Valve, 2", 2-way or floating, 35.1 Cv, 0-10V control, w/ NPT unions

This MX Control Valve with Electronic Modules is designed for 0 to 10V control of chilled water and low-pressure hot water, especially in HVAC systems. This 2" valve can be configured for straight-through or floating applications and has a 35.1 Cv and 43 psi close-off. This valve has 1000:1 resolution and a positioning time is ≤ 1 second, manual override, auto calibration, dip switch selectable signal input and flow characteristic, and built-in position feedback. The valve includes NPT union fittings and blanking flange. UL and cUL listed.
