manufacturer:
Siemens
mpn:
POL648.10/RTU-P74
Product Description

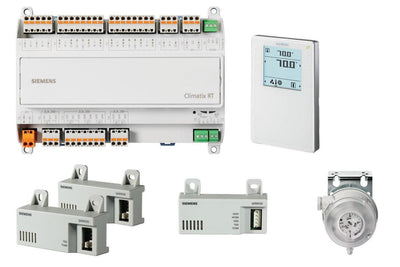

Siemens - POL648.10/RTU-P74 POL648.10/RTU-P74 Climatix QMX3.P74 KITKit containing a Climatix RTU controller with a pre-defined Rooftop application, Differential Pressure switch, Duct temperature sensors, Relative Humidity Temperature sensor and room unit with display, Temp, RH and IAQ.NOTE: A POL903.00/100 (S55803-Y130-A100) WLAN Adapter is needed for WLAN connectivity during commissioning workflow with mobile devices.
Additional Information
Analog outputs, number8
Operating voltage24 Vac +/- 20 %, 24 Vdc +/- 10 %
Frequency45 to 65 Hz
Power consumption39 VA / 24 W
Degree of protectionIP20
Analog inputs, number3
Digital inputs, number4
MountingDIN rail
Dimensions (W x H x D)7.09 W x 5.3 H x 6.83 D in
Digital outputs, number6
