manufacturer:
Siemens
mpn:
SAS81.33U
Product Description

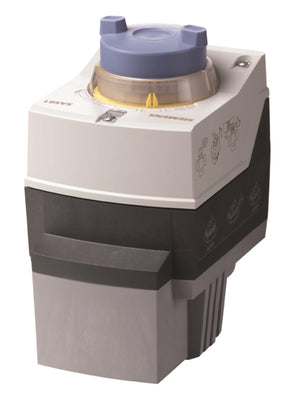

Siemens - SAS81.33U Powermite 599 MT Series SAS Electronic Valve Actuator, SR, 24V, Float Control
The Powermite 599 MT Series SAS Electronic Valve Actuator requires a 24V supply and receives a floating control signal to provide three-position control of a valve. The spring return actuator works with Powermite 599 MT Series terminal unit valves with a 7/32 in. stroke.
Additional Information
Fail SafeYes
Spring return functionSpring return functionality
Position feedbackDC 0...10 V (SA..6..)
Power consumption2 VA
Mounting positionUpright to horizontal
Ambient temperature, operation-5…55 °C
Ambient humidity, operation95 % r.h.
Operating voltage24 VAC/DC
Supply Voltage24 VAC
Stroke5.5 mm
Stroke, mm5.5 mm
Dimensions (W x H x D)3.66 x 5.94 x 3.15 in
Degree of protectionIP54
