manufacturer:
Siemens
mpn:
SAV61.00U
Product Description

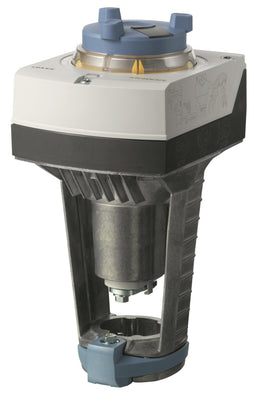

Siemens - SAV61.00U PICV Actuator, 24 Vac, 0-10 Vdc or 4-20 mA Prop Control, Non-Spring Return
The SAV Valve Actuator is used with PICV Valves with 1-1/2-inch stroke. This electronic valve actuator requires 24 Vac supply to provide 0 to 10 Vdc or 4-20 mA proportional control of the valve. Other features of this valve actuator include UL listed for plenum installations, direct-coupled installation requires no special tools or adjustments, manual override with visual postion indication, non-spring return, and 360 lb (1600N) nominal force with 120 sec run time.
Additional Information
Fail SafeNo
Spring return functionNon-spring return functionality
Position feedbackDC 0...10 V (SA..6..)
Power consumption9.5 VA
Mounting positionUpright to horizontal, up to 150 °C with horizontal mounting position
Operating voltage24 VAC/DC
Stroke40 mm, 1.5 " mm
Positioning time120 s
Stroke, mm40 mm
Auxiliary switchOptional
Ambient temperature, operation-5…55 °C
Degree of protectionIP54
