manufacturer:
Siemens
mpn:
SAX81.03U
Product Description

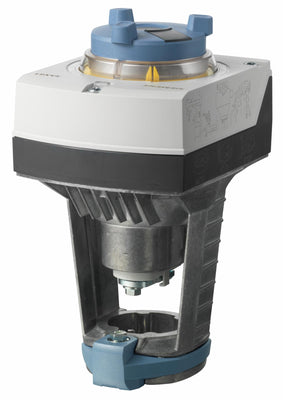

Siemens - SAX81.03U Flowrite Actuator, 24 Vac, Floating Control, Non-Spring Return
The Flowrite SAX Valve Actuator is used with Flowrite Valves with 3/4-inch stroke. This electronic valve actuator requires 24 Vac supply to provide floating control of the valve. Other features of this valve actuator include UL listed for plenum installations, direct-coupled installation requires no special tools or adjustments, manual override with visual postion indication, non-spring return, and 180 lb (800N) nominal force with 30 sec run time.
Additional Information
Fail SafeNo
Positioning signal3-position
Position feedbackDC 0...10 V (SA..6..)
Power consumption5 VA
Mounting positionNema 1 (interior only), Upright to horizontal
Ambient humidity, operation95 % r.h.
Operating voltage24 VAC/DC
Supply Voltage24 VAC
Frequency50/60
Stroke20 mm
Positioning time30 s
Stroke, mm20 mm
Ambient temperature, operation-5…55 °C
Dimensions (W x H x D)9.53 x 4.88 x 6.02 in
Degree of protectionIP54
Spring return functionNon-spring return functionality
