manufacturer:
Siemens
mpn:
SAY61.03U
Product Description

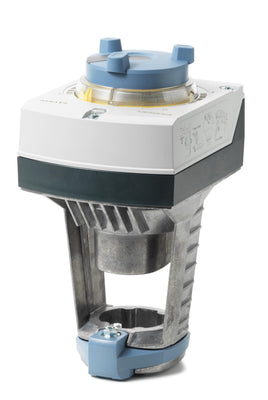

Siemens - SAY61.03U SAY Electronic Valve Actuator, 0-10V or 4-20 mA, NSRThe SAY Non-spring Return (NSR), Electronic Valve Actuator requires a 24 Vac supply and receives a 0 to 10 Vdc or a 4 to 20 mA control signal to proportionally control a valve.
Additional Information
Fail SafeNo
Spring return functionNon-spring return functionality
Ambient temperature, operation-5…55 °C; 23…131 ºF
Ambient humidity, operation95 % r.h.
Operating voltage19.2…28.2 V24 V#AC/DC
Supply Voltage24 VAC
Frequency50/60
Dimensions (W x H x D)4.88 x 9.53 x 5.91 in
Degree of protectionIP54
