Product Description

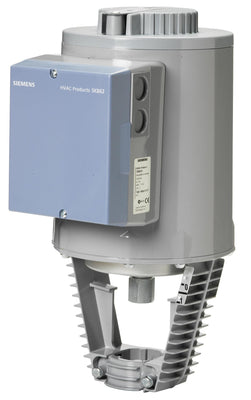

Siemens - SKB62U Flowrite Electro-Hydraulic Actuator, 24Vac, Proportional, SR, 3/4" Stroke
The Flowrite SKB Valve Actuator is used with Flowrite and other standard valves with a 3/4-inch stroke. This electronic valve actuator requires a 24 Vac supply to provide a 0 to 10 Vdc or 4 to 20 mA proportional control signal to the valve. Other features of this valve actuator include automatic stroke calibration, manual override, die-cast aluminum housing, 1000 lb (4000N) thrust, and spring return functionality.
Additional Information
Ambient temperature, operation-15…55 °C
Degree of protectionIP54
Dimensions (W x H x D)14.84 x 7.01 x 8.94 in
Medium temperature-25…220 °C; 5…130 ºF
Mounting positionNEMA 1 (interior only), Upright
Operating voltage19.2…28.2 V24 V#AC
Position feedbackDC 0…10 V, 4…20 mA
Positioning signalDC 0...10 V, 4...20 mA, 0...1000 Ohm
Positioning timeOpen:120 s, Close:10 s
Spring return functionSpring return functionality
Stroke20 mm
