Product details

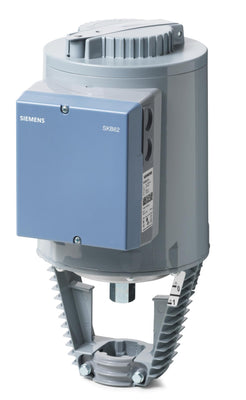

Flowrite Electro-Hydraulic Actuator, 24Vac, Proportional, SR, 3/4" Stroke
The Flowrite SKB Advanced Feature Valve Actuator is used with Flowrite and other standard valves with a 3/4-inch stroke. This electronic valve actuator requires a 24 Vac supply to provide a 0 to 10 Vdc or 4 to 20 mA proportional control signal to the valve. Other features of this valve actuator include automatic stroke calibration, manual override, die-cast aluminum housing, 1000 lb (4000N) thrust, and spring return functionality. Advanced features include selectable operating direction (direct or reverse acting), adjustable start and span, stroke limit control, choice of linear or equal-percentage flow characteristics.
