manufacturer:
Siemens
mpn:
SKB82.50U
Product Description

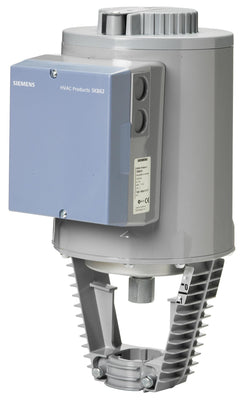

Siemens - SKB82.50U Flowrite Electro-Hydraulic Actuator, Float Control, NSR, 3/4" Stroke
The Flowrite SKB Valve Actuator is used with Flowrite and other standard valves with a 3/4-inch stroke. This electronic valve actuator requires a 24 Vac supply to provide floating control of the valve. Other features of this valve actuator include automatic stroke calibration, manual override, die-cast aluminum housing, 1000 lb (4000N) thrust, and non-spring return functionality.
Additional Information
Ambient temperature, operation-15…55 °C
Degree of protectionIP54
Dimensions (W x H x D)7.01 x 14.84 x 8.94 in
Medium temperature-25…220 °C; 5…130 ºF
Mounting positionNEMA 1 (interior only), Upright
Operating voltage19.2…28.2 V24 V#AC
Position feedbackNone
Positioning signal3-position
Positioning time120 s
Spring return functionNon-spring return functionality
Stroke20 mm
Positioning force4400 N
