Product Description

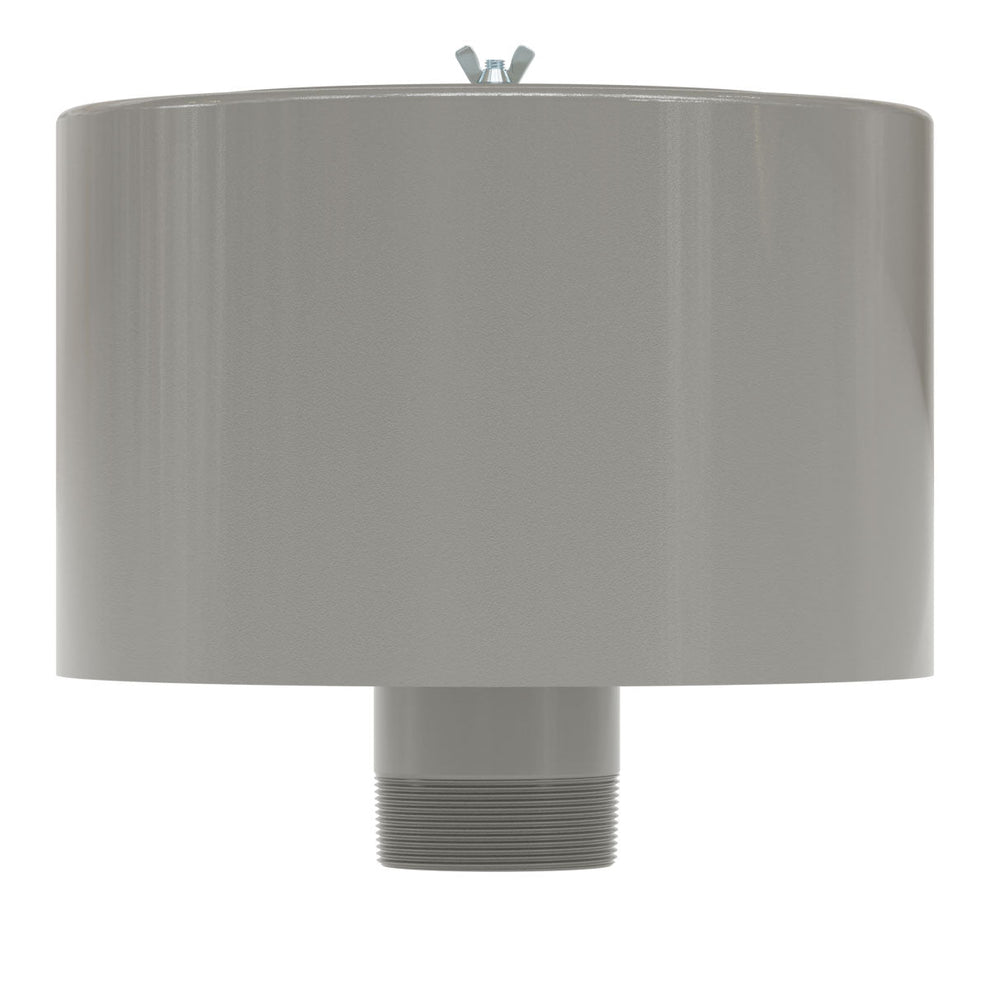

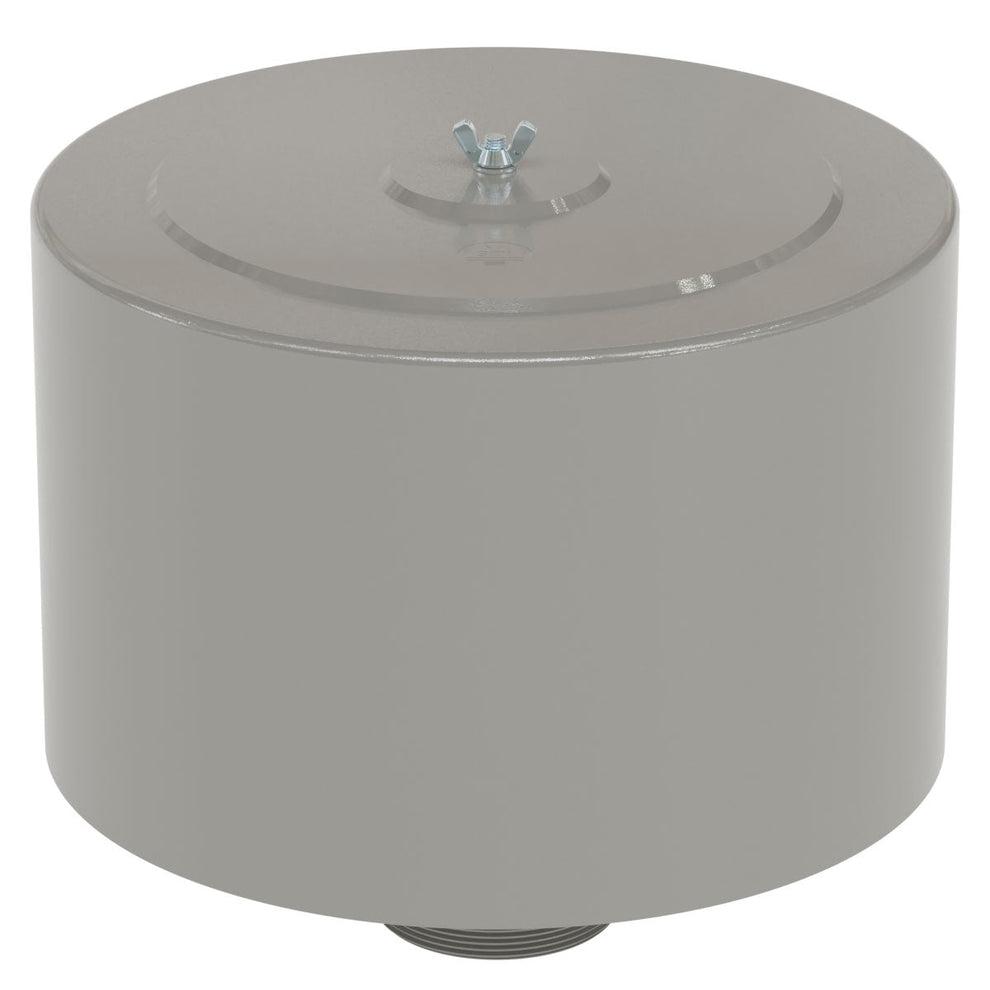

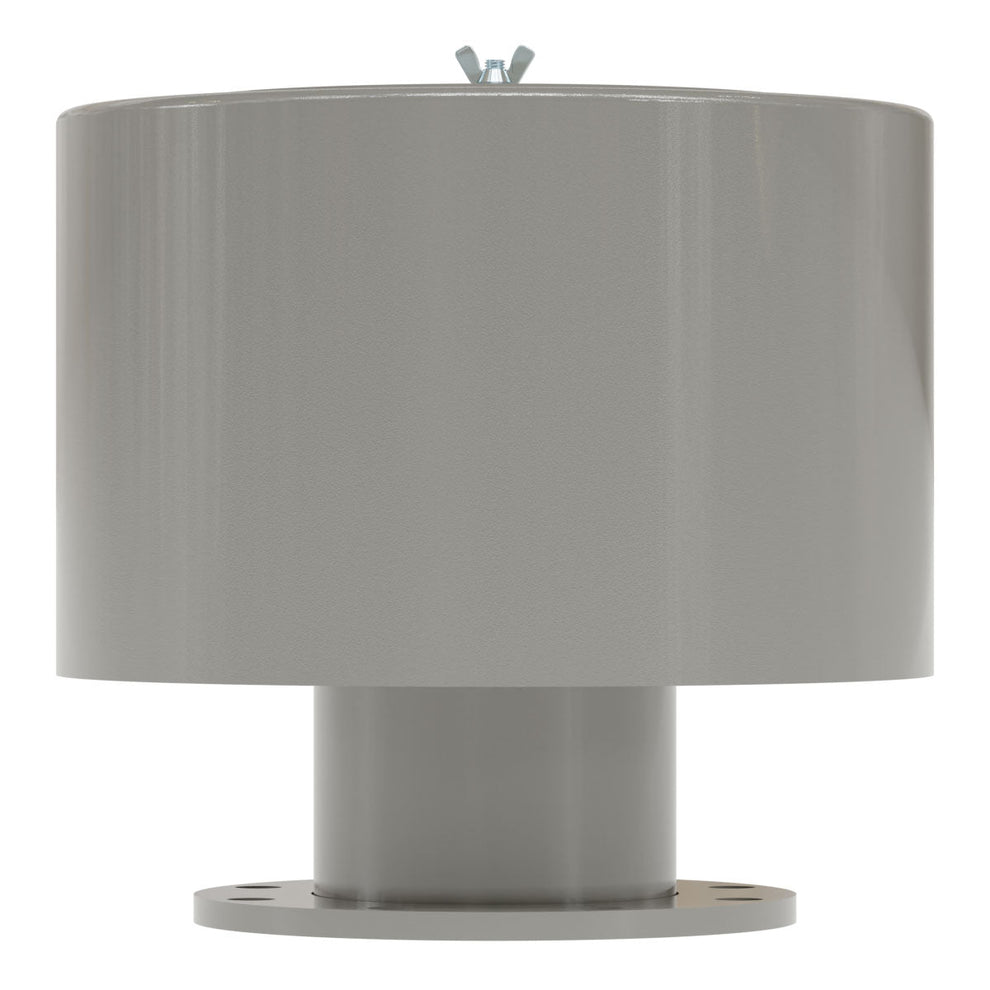

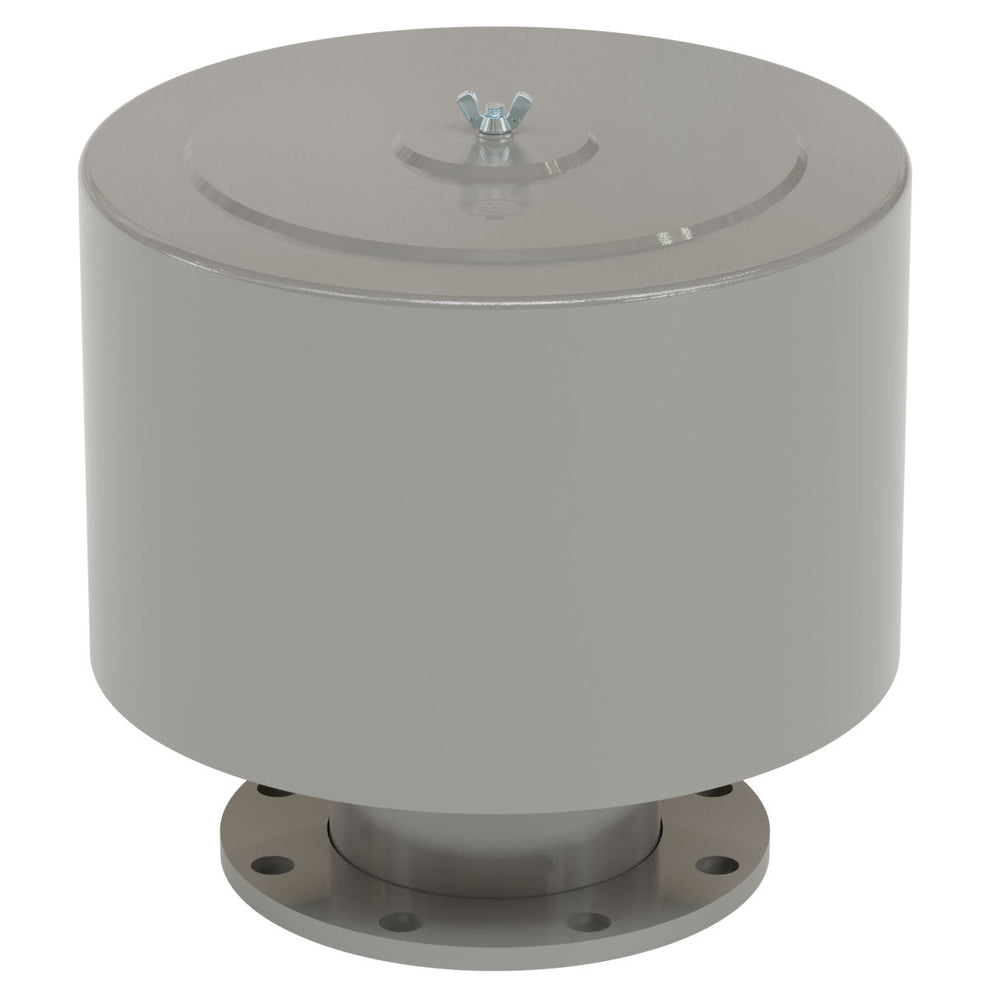

Solberg 2G-275P-600 Enhanced Inlet Filter Silencer
The Solberg 2G-275P-600 Enhanced Filter Silencer is a premium-grade industrial air intake filtration and sound attenuation solution engineered for blowers, compressors, fans, and regenerative vacuum systems. Designed with advanced multi-stage silencing technology, Quiet Band weatherhood support, and a high-efficiency polyester filter element, this compact assembly delivers exceptional intake noise reduction while protecting critical equipment from airborne contaminants in demanding industrial environments.
Key Features
- High-efficiency polyester filter media with 99%+ filtration efficiency at 5 microns
- Advanced multi-stage silencing technology helps reduce intake noise levels
- Quiet Band weatherhood support enhances sound suppression performance
- Internal center tubular silencer with layered absorptive media
- Fully drawn carbon steel weatherhood eliminates weld vibration and rust points
- Low pressure drop center bracket and outlet pipe design improves airflow efficiency
- Heavy-duty carbon steel construction with durable baked enamel finish
- Compact footprint reduces overall blower package size and installation space
- Interchangeable filter elements simplify servicing and maintenance
- Standard 1/8 Inch tap hole included for pressure monitoring accessories
Specifications
- Model: 2G-275P-600
- Series: 2G Series
- Connection Size: 6 Inch
- Connection Type: MNPT
- Maximum Flow Capacity: 600 SCFM
- Filter Media: Polyester Element
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%+
- Housing Material: Carbon Steel
- Finish: Baked Enamel Gray Finish
- Outside Diameter: 10 Inches
- Overall Height: 16 Inches
- Nipple Length: 6 Inches
- Approximate Weight: 30 lbs
- Replacement Element: 275P™
- Operating Temperature Range: -15°F to 220°F (-26°C to 104°C)
- Recommended Filter Change-Out: 10-15 in. H2O above initial pressure drop
Applications
- Centrifugal Blowers
- Regenerative Blowers
- Side Channel Blowers
- Piston Compressors
- Screw Compressors
- Pneumatic Conveying Systems
- Waste Water Aeration Systems
- Vacuum Pumps & Vacuum Lifters
- Ash Handling Systems
- Industrial & Severe Duty Applications
Benefits
- Protects critical equipment from airborne contaminants and debris
- Advanced silencing features significantly reduce intake noise
- Compact design minimizes overall system footprint
- Optimized airflow design lowers restriction and power consumption
- Weather-resistant construction supports harsh industrial environments
- Reusable polyester element helps reduce maintenance costs
- Heavy-duty construction ensures long operational service life
The Solberg 2G-275P-600 combines advanced intake filtration, enhanced sound attenuation, and rugged industrial durability into one compact assembly, making it an ideal solution for blower, compressor, and vacuum system intake applications requiring reliable filtration and quiet operation.
