Product Description

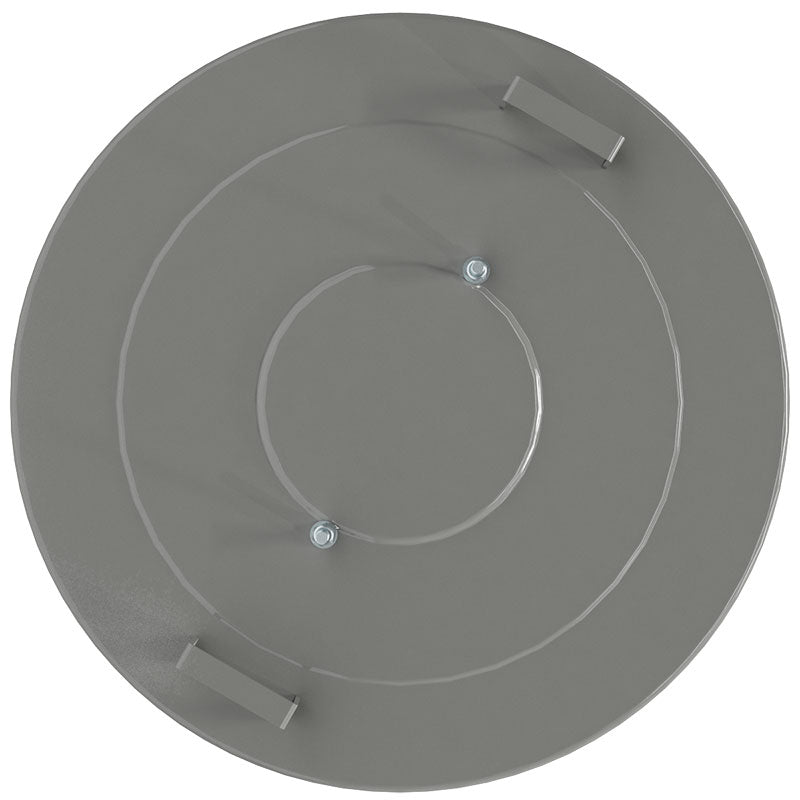

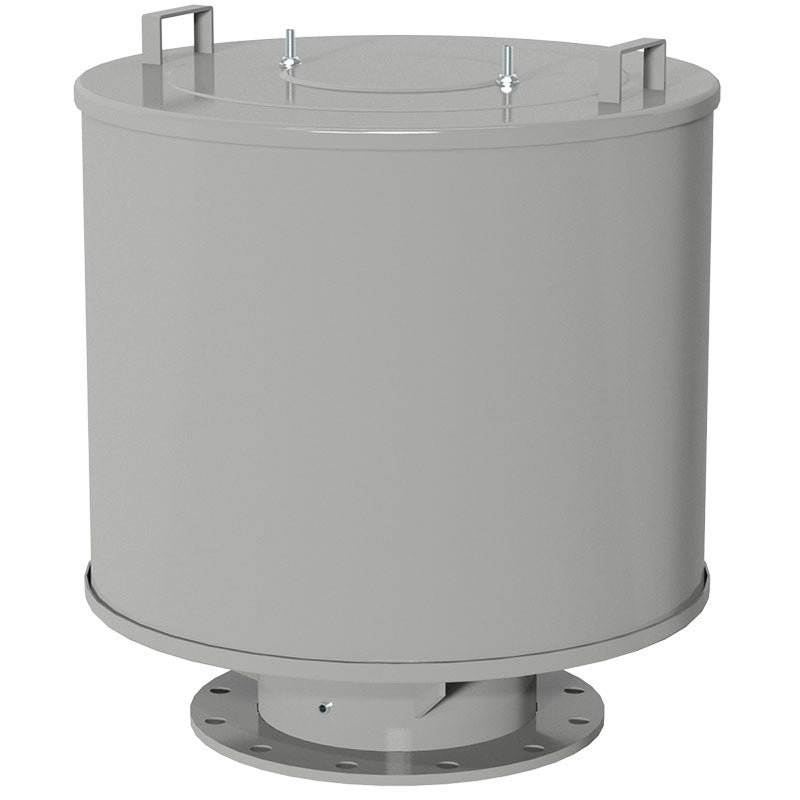

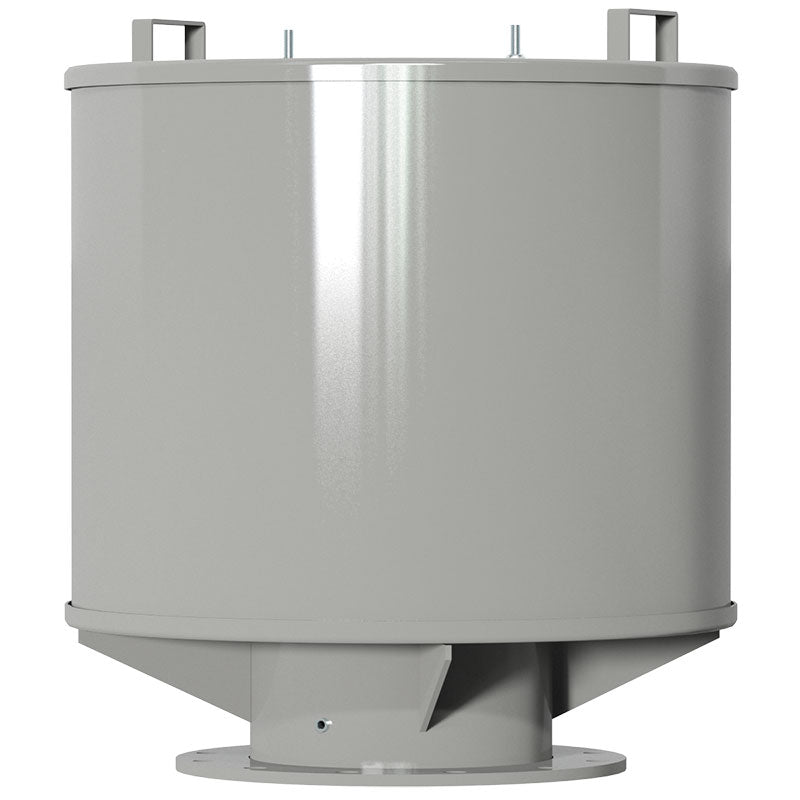

Solberg 2G-485P-1200F Heavy Duty Inlet Filter Silencer
The Solberg 2G-485P-1200F is a premium heavy-duty inlet filter silencer engineered for industrial blowers, compressors, regenerative blowers, side channel blowers, and vacuum systems. Built with advanced multi-stage silencing technology and a rugged carbon steel weatherhood, this industrial filter silencer delivers high airflow capacity, superior particulate filtration, and exceptional acoustic attenuation for demanding industrial applications.
Key Features
- Heavy-duty inlet filter silencer for industrial blower and compressor systems
- Durable carbon steel weatherhood with corrosion-resistant industrial finish
- Polyester filter media with 99%+ filtration efficiency to 5 micron
- Advanced tubular silencing system for enhanced sound attenuation
- Quiet Band technology minimizes inlet noise and vibration
- Internal center tubular silencer improves acoustic performance
- Low pressure drop airflow design for improved operational efficiency
- Replaceable and interchangeable filter element for simplified maintenance
- Standard 1/8 inch tap hole included on 2G series models
- Continuous operating temperature range from -15°F to 220°F (-26°C to 104°C)
Applications
- Centrifugal blowers
- Regenerative blowers
- Side channel blowers
- Industrial compressors
- Vacuum lifters
- Regenerative vacuum pumps
- Pneumatic conveying systems
- Wastewater aeration systems
- Industrial air intake systems
- Heavy-duty manufacturing facilities
Technical Specifications
- Model: 2G-485P-1200F
- Brand: Solberg
- Connection Size: 12 Inch Flange
- Filter Media: Polyester
- Filtration Efficiency: 99%+ to 5 micron
- Maximum Flow Rate: 4700 SCFM
- Element SCFM Rating: 4705 SCFM
- Housing Material: Carbon Steel
- Operating Temperature Range: -15°F to 220°F (-26°C to 104°C)
- Overall Height: Approximately 31 Inches
- Approximate Weight: 160 lbs
- Replacement Element: 485P
- Color: Gray
Benefits
The Solberg 2G-485P-1200F combines high-efficiency intake filtration with advanced sound suppression technology to improve equipment reliability, reduce operating noise, and optimize airflow performance. Its rugged industrial-grade construction and high airflow capacity make it ideal for severe-duty industrial environments requiring dependable filtration and acoustic control.
