Product Description

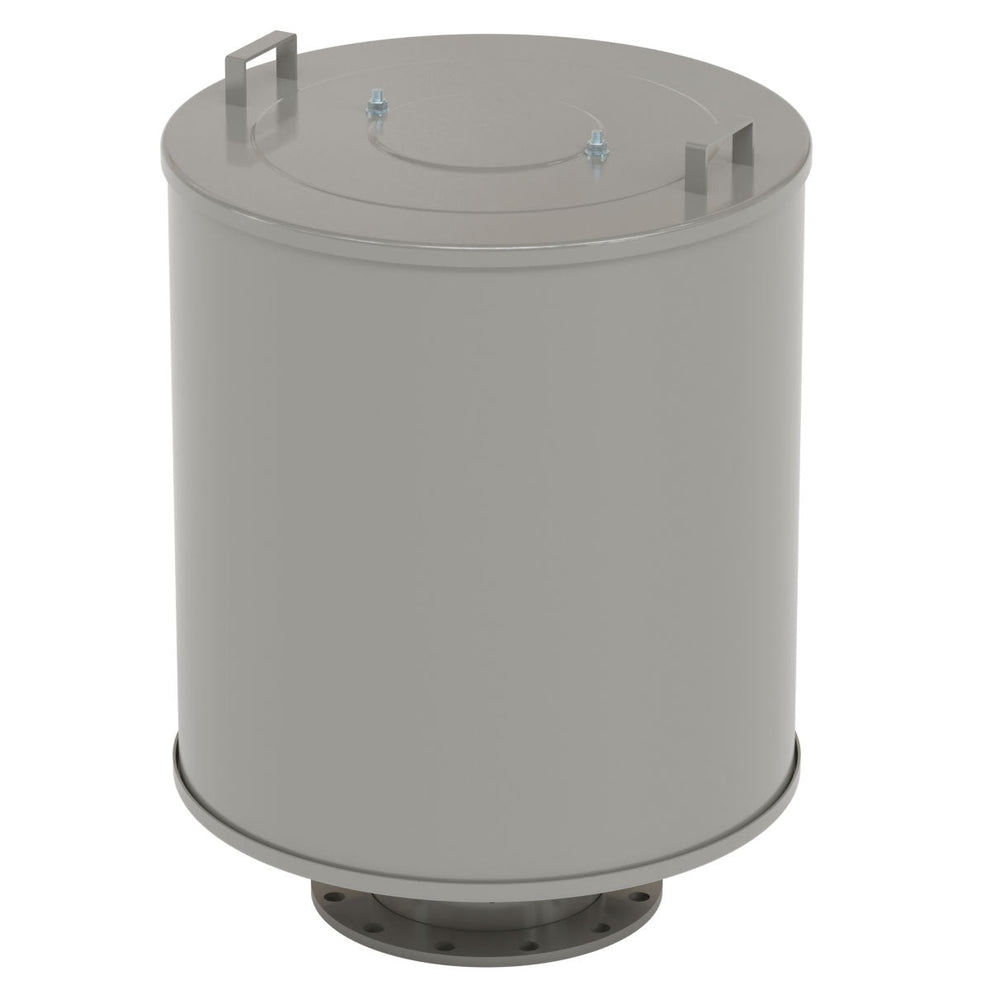

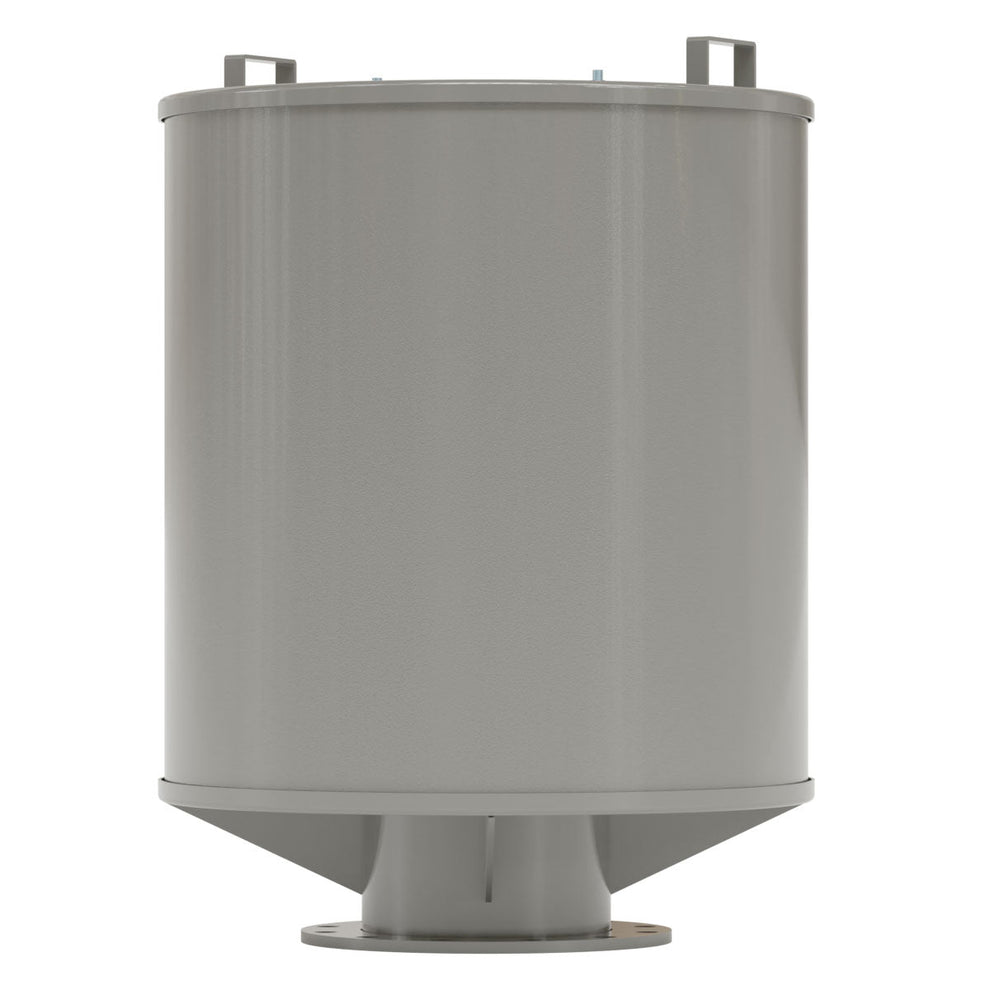

Solberg 2G-685P-1200F Heavy Duty Inlet Filter Silencer
The Solberg 2G-685P-1200F is a premium heavy-duty inlet filter silencer engineered for industrial blowers, compressors, regenerative blowers, side channel blowers, and high-capacity vacuum systems. Built with advanced multi-stage silencing technology and a rugged carbon steel weatherhood, this industrial filter silencer delivers superior airflow performance, high-efficiency particulate filtration, and exceptional acoustic attenuation for demanding industrial applications.
Key Features
- Heavy-duty inlet filter silencer for industrial blower and compressor systems
- Rugged carbon steel weatherhood with corrosion-resistant industrial finish
- Polyester filter media with 99%+ filtration efficiency to 5 micron
- Advanced tubular silencing system for maximum sound attenuation
- Quiet Band technology minimizes inlet noise and vibration
- Internal center tubular silencer enhances acoustic suppression performance
- Low pressure drop airflow design improves system efficiency
- Replaceable and interchangeable filter element for simplified servicing
- Standard 1/8 inch tap hole included on 2G series models
- Continuous operating temperature range from -15°F to 220°F (-26°C to 104°C)
Applications
- Centrifugal blowers
- Regenerative blowers
- Side channel blowers
- Industrial compressors
- Vacuum pumps and vacuum lifters
- Pneumatic conveying systems
- Wastewater aeration systems
- Industrial air intake systems
- Power generation facilities
- Heavy-duty manufacturing operations
Technical Specifications
- Model: 2G-685P-1200F
- Brand: Solberg
- Connection Size: 12 Inch Flange
- Filter Media: Polyester
- Filtration Efficiency: 99%+ to 5 micron
- Maximum Flow Rate: 6500 SCFM
- Element SCFM Rating: 6850 SCFM
- Housing Material: Carbon Steel
- Operating Temperature Range: -15°F to 220°F (-26°C to 104°C)
- Approximate Weight: 210 lbs
- Replacement Element: 685P
- Color: Gray
Benefits
The Solberg 2G-685P-1200F combines advanced intake filtration with powerful sound suppression technology to improve equipment protection, reduce operational noise, and optimize airflow efficiency. Its rugged industrial-grade construction and very high airflow capacity make it ideal for severe-duty industrial environments requiring reliable filtration and acoustic control.
