Solberg CT-274P-600C Inline Straight-Through Vacuum Filter – 6" FPT, 2 Micron Paper Element, Carbon Steel Bucket

Solberg CT-274P-600C Inline Vacuum Filter

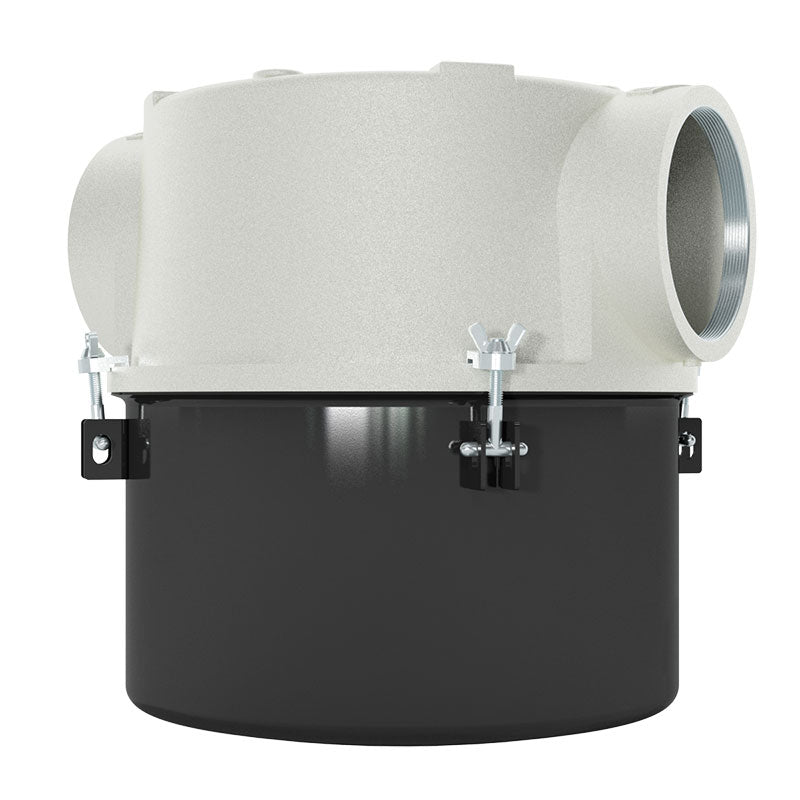

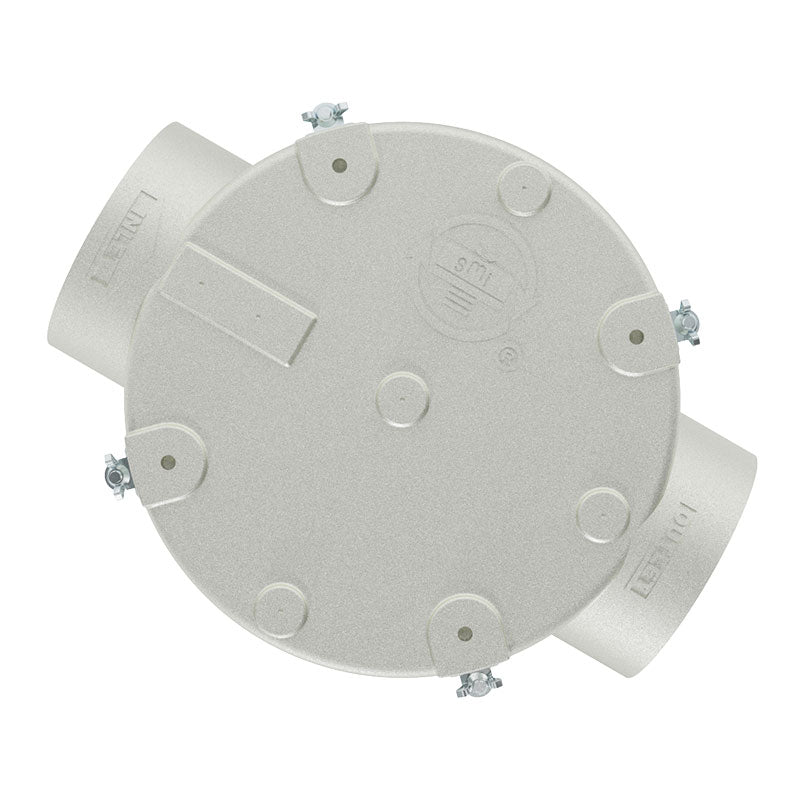

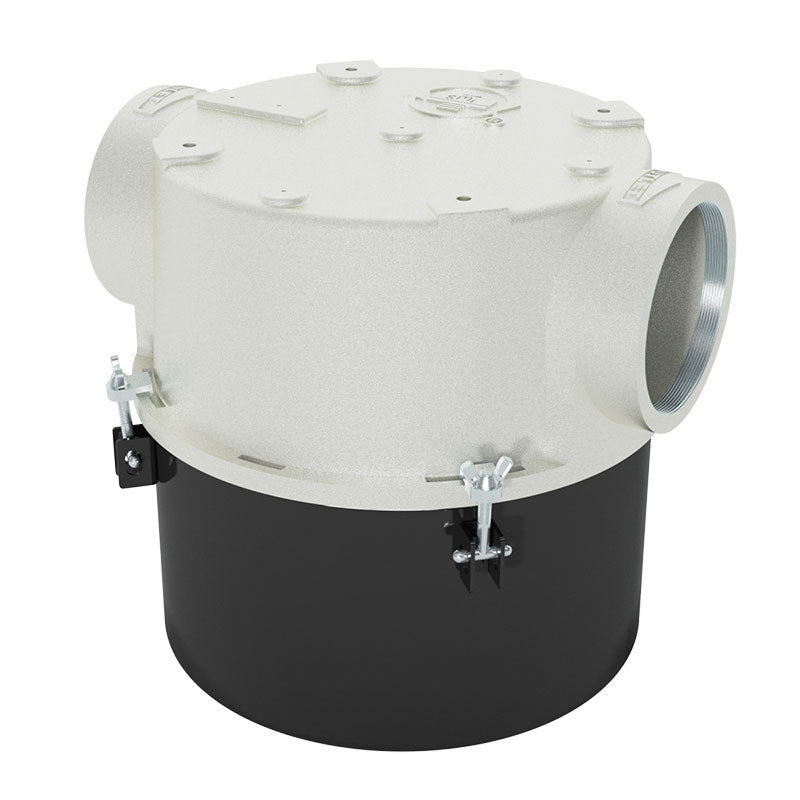

The Solberg CT-274P-600C is a heavy-duty inline straight-through vacuum filter engineered for high-flow industrial vacuum and pneumatic conveying applications. Featuring a high-efficiency 2 micron paper filter element, corrosion-resistant cast aluminum top, and durable black powder-coated carbon steel bucket, this filter delivers superior particulate protection, low restriction airflow, and reliable long-term performance in demanding operating environments.

Key Features

• Heavy-duty inline straight-through vacuum filter design
• 6" FPT threaded inlet and outlet connections
• High-efficiency paper filter element
• 2 micron filtration rating with 99%+ particulate removal efficiency
• High airflow capacity for industrial vacuum systems
• Corrosion-resistant cast aluminum top housing
• Black powder-coated carbon steel extended drop-down bucket
• Integrated internal baffle design for optimized airflow
• Inlet positioned above element for extended service intervals
• Compact design for installations with limited maintenance space
• Easy maintenance with removable bucket assembly
• Designed for medium and heavy-duty vacuum applications

Specifications

• Model: CT-274P-600C
• Connection Size: 6"
• Connection Type: FPT / NPT
• Assembly Flow Capacity: 1100 SCFM
• Element Flow Rating: 1100 CFM
• Filter Media: Paper Element
• Micron Rating: 2 Micron
• Filtration Efficiency: 99%+ removal efficiency
• Element Surface Area: 45.4 ft²
• Element Dimensions: 11.75" OD x 8" ID x 9.63" Height
• Housing Material: Cast Aluminum / Carbon Steel
• Bucket Finish: Black Powder Coat
• Approximate Dimensions: 19" OD x 18.2" Height
• Bucket Height: 9.82"
• Approximate Weight: 44 lbs
• Replacement Element: 274P Series
• Continuous Temperature Range: -15°F to 220°F (-26°C to 104°C)

Applications

• Industrial vacuum pump systems
• Pneumatic conveying systems
• Cement and ash handling operations
• Vacuum packaging equipment
• Paper processing machinery
• Factory automation systems
• Glass and ceramic vacuum applications
• Woodworking dust collection systems
• Wastewater aeration systems
• Central vacuum systems
• Remote piston and screw compressor installations
• Envelope manufacturing equipment

Optional Features

• Vacuum gauges
• Gauge and mounting bracket taps
• Swing bolt hardware for heavy-duty environments
• Drain ports
• Extended bucket configurations
• Alternative filter media options
• Reverse pulse configuration
• Various finish options

The CT-274P-600C inline vacuum filter is engineered to maximize equipment protection and airflow efficiency while minimizing maintenance requirements, helping extend the operational life of industrial vacuum and pneumatic conveying systems.
