Product Description

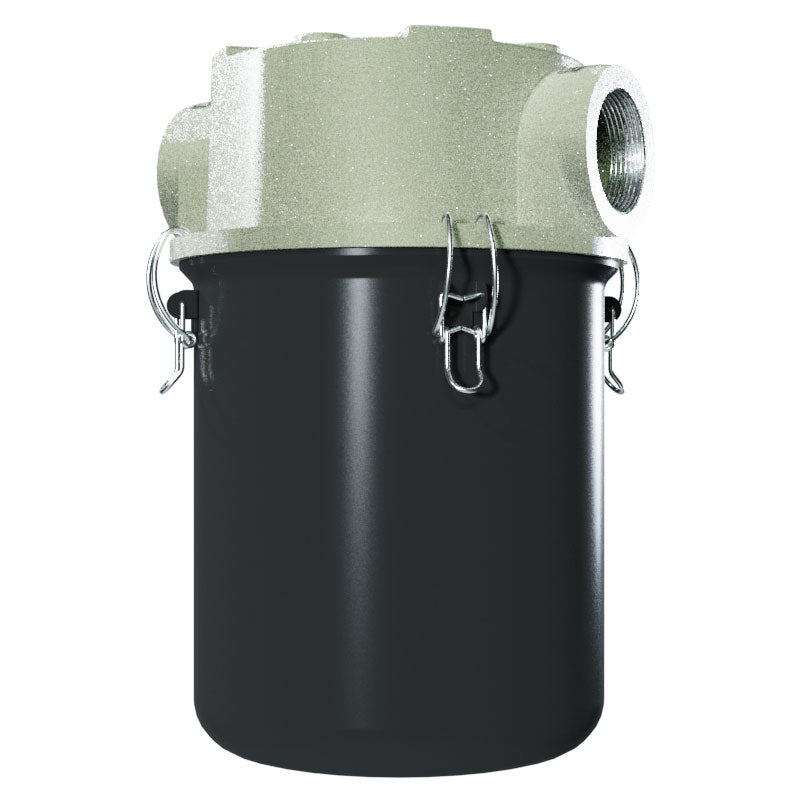

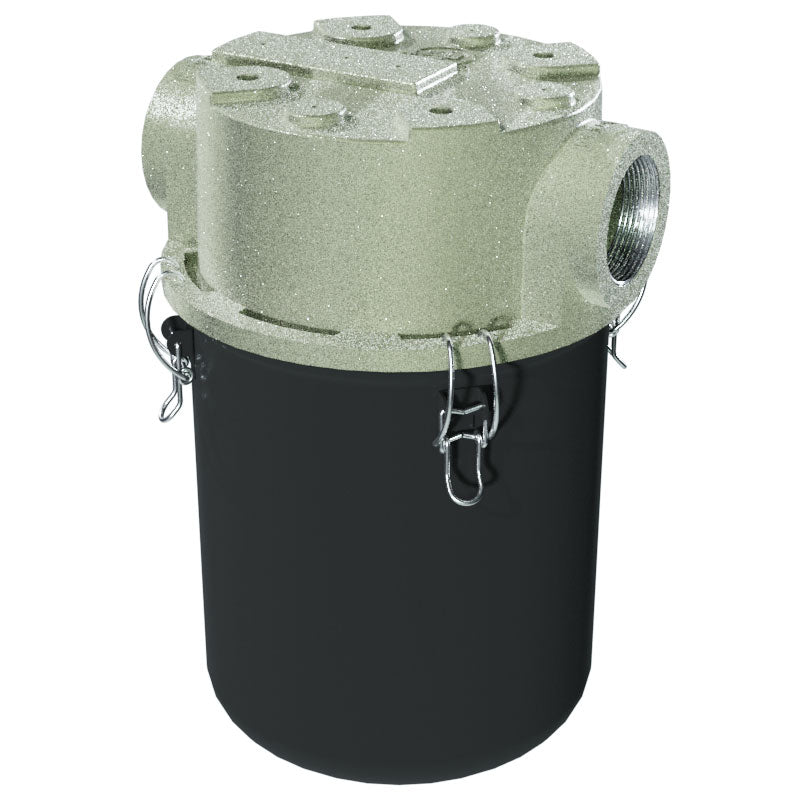

Solberg CT-SML235-200C SpinMeister® Inline Vacuum Filter
The Solberg CT-SML235-200C is an extreme-duty inline T-style vacuum filter engineered for high dust and heavy particulate environments. Featuring Solberg’s advanced SpinMeister® centrifugal precleaner technology, this filter delivers superior coarse particulate separation before air reaches the main filter element, helping extend filter life and improve system performance in demanding industrial applications.
Designed with a durable molded composite housing and black powder-coated carbon steel drop-down bucket, the CT-SML235-200C provides reliable filtration, reduced pressure drop, and excellent dirt holding capacity for vacuum pumps, pneumatic conveying systems, and industrial material handling operations.
Key Features
- SpinMeister® centrifugal precleaner technology
- Extreme-duty filtration for high dust environments
- 2" NPSC threaded inlet and outlet connections
- 85%+ precleaner efficiency at 15 microns
- 99%+ filtration efficiency with secondary paper element
- Excellent removal of short fibers and coarse particulate
- Reduced pressure drop compared to standard precleaners
- Durable molded fiber-filled composite construction
- Black powder-coated carbon steel drop-down bucket
- Large dirt holding capacity for extended service intervals
- Clip-release band for quick and easy maintenance
- Compact T-style inline filter configuration
Specifications
- Model: CT-SML235-200C
- Series: SpinMeister® ST/CT Series
- Connection Size: 2"
- Connection Type: NPSC
- Configuration: T-Style Inline Filter
- Airflow Range: 40–110 SCFM
- Secondary Element Rating: 175 SCFM
- Precleaner Efficiency: 85%+ at 15 Microns
- Paper Element Efficiency: 99%+ at 2 Microns
- Polyester Element Efficiency: 99%+ at 5 Microns
- Housing Material: Molded Fiber-Filled Composite
- Bucket Material: Black Powder-Coated Carbon Steel
- Overall Dimensions: 16.25" x 9" x 12.5"
- Approximate Weight: 18 lbs
- Replacement Element Kit: SML235 Series
- Vacuum Rating: Low Vacuum Service
Applications
- Vacuum pump systems
- Pneumatic conveying systems
- Woodworking operations
- Screw compressor systems
- Plastic processing equipment
- Material handling systems
- High dust industrial environments
- Fiber and particulate collection applications
Optional Features
- Polished aluminum SpinMeister® assemblies
- Alternative filter media configurations
- Spool piece extenders
- Gauge and mounting bracket taps
- Pressure drop gauges
- Additional carbon steel bucket options
The CT-SML235-200C SpinMeister® vacuum filter is designed to maximize filter life and equipment protection by removing large particulate before it reaches the primary filter media, helping reduce maintenance costs and improve operational efficiency in severe-duty industrial applications.
