Product Description

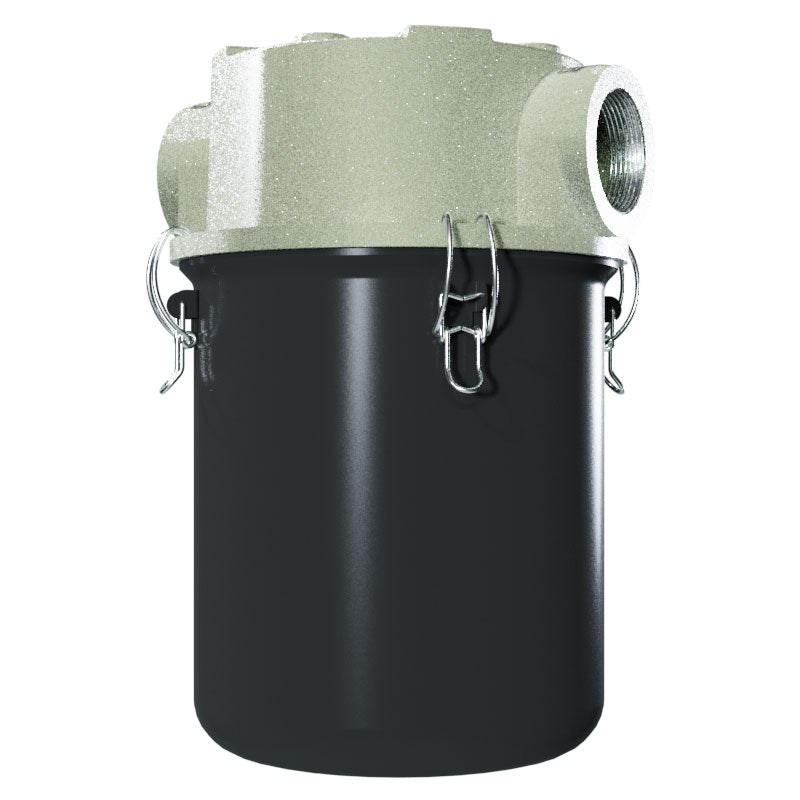

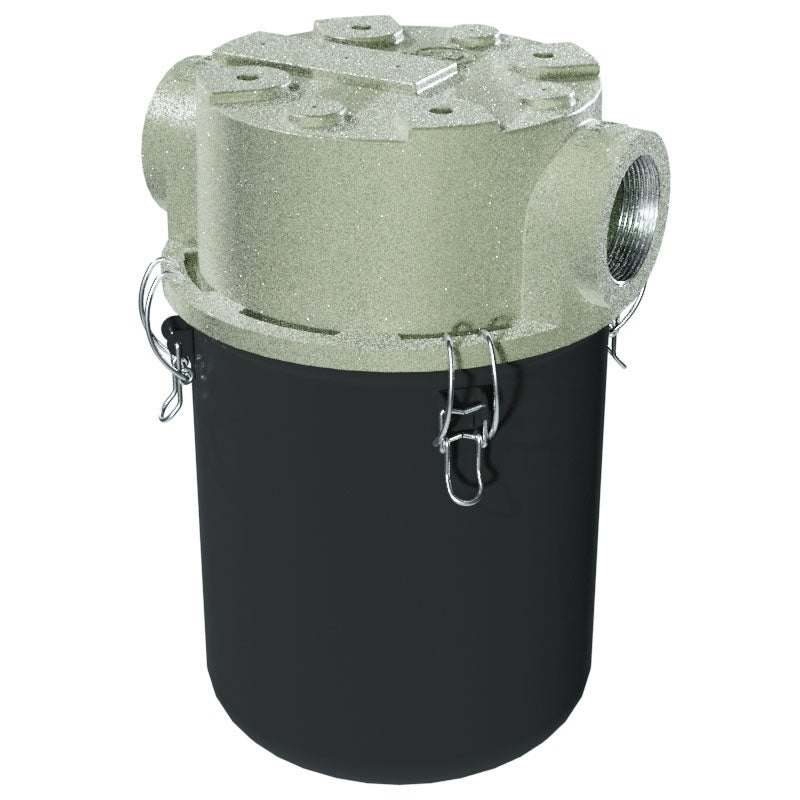

Solberg CT-SML235-250C SpinMeister® Inline Vacuum Filter
The Solberg CT-SML235-250C is a heavy-duty inline T-style vacuum filter designed for extreme-duty industrial environments with high dust and particulate loading. Featuring Solberg’s advanced SpinMeister® centrifugal precleaner technology, this filter separates large contaminants before they reach the primary filter element, extending filter life and improving overall system efficiency.
Constructed with a rugged molded composite housing and black powder-coated carbon steel drop-down bucket, the CT-SML235-250C delivers superior particulate handling, reduced maintenance requirements, and dependable airflow performance for vacuum pumps, pneumatic conveying systems, and industrial material handling applications.
Key Features
- Advanced SpinMeister® centrifugal precleaner technology
- Heavy-duty inline T-style vacuum filter design
- 2.5" NPSC threaded inlet and outlet connections
- 85%+ precleaner efficiency at 15 microns
- 99%+ final filtration efficiency with paper element
- Designed for high dust and heavy particulate environments
- Reduced pressure drop compared to conventional precleaners
- Durable molded fiber-filled composite housing
- Black powder-coated carbon steel drop-down bucket
- Excellent dirt holding capacity for longer service intervals
- Quick-release service clamp for easy maintenance
- Compact design suitable for restricted installation spaces
Specifications
- Model: CT-SML235-250C
- Series: SpinMeister® ST/CT Series
- Connection Size: 2.5"
- Connection Type: NPSC
- Configuration: Inline T-Style Filter
- Airflow Range: 70–175 SCFM
- Secondary Element Flow Rating: 290 SCFM
- Precleaner Efficiency: 85%+ at 15 Microns
- Paper Element Efficiency: 99%+ at 2 Microns
- Polyester Element Efficiency: 99%+ at 5 Microns
- Housing Material: Molded Fiber-Filled Composite
- Bucket Material: Black Powder-Coated Carbon Steel
- Overall Dimensions: Approx. 16.25" x 9" x 12.5"
- Approximate Weight: 18–20 lbs
- Replacement Element: SML235 Series
- Vacuum Rating: Low Vacuum Service
- Continuous Temperature Range: -15°F to 180°F (-26°C to 82°C)
Applications
- Vacuum pump systems
- Pneumatic conveying systems
- Woodworking operations
- Plastic processing equipment
- Material handling systems
- Industrial dust collection applications
- Fiber and particulate collection systems
- Remote compressor installations
- Bulk material transfer systems
Optional Features
- Polished aluminum SpinMeister® assemblies
- Alternative filter media options
- Pressure drop gauges
- Gauge and mounting bracket taps
- Spool piece extenders
- Additional bucket configurations
- Custom finish options
The CT-SML235-250C SpinMeister® vacuum filter is engineered to maximize filter life and protect industrial vacuum equipment by efficiently removing large particulate before it reaches the primary filter media, helping reduce maintenance costs and improve operational reliability in severe-duty environments.
