Product Description

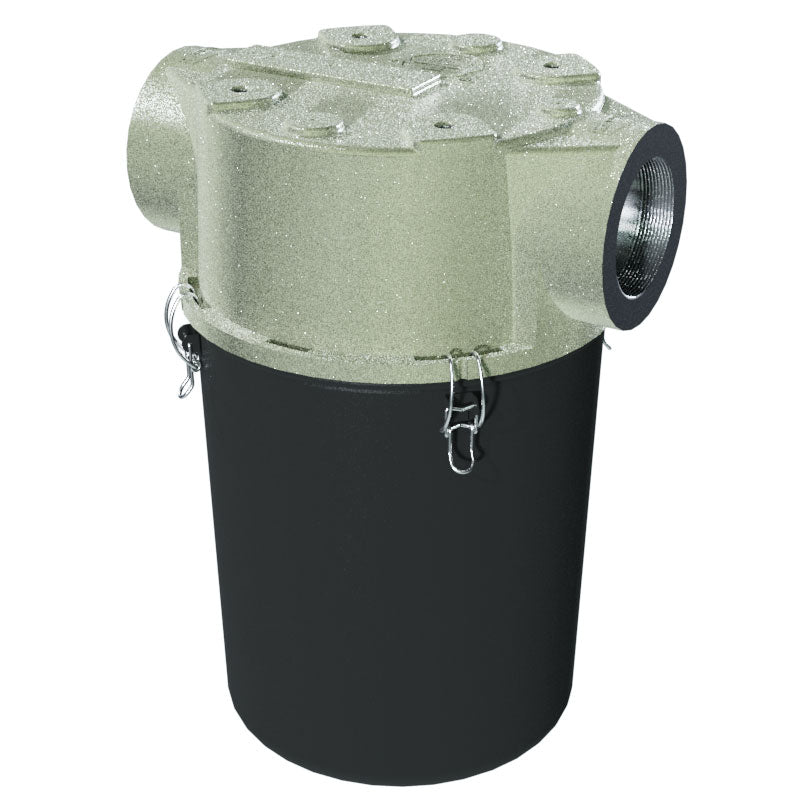

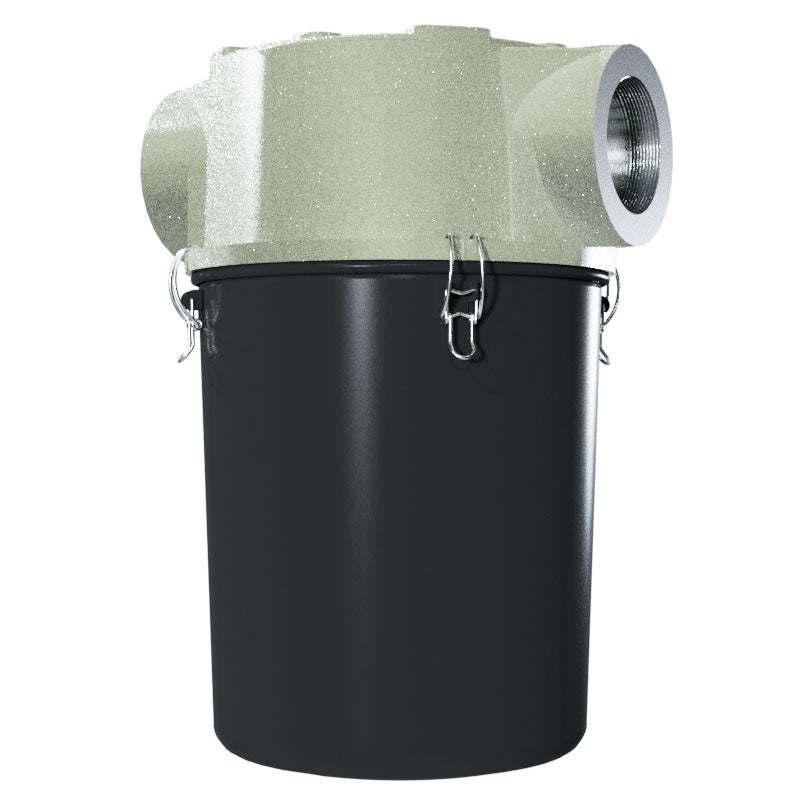

Solberg CT-SML345-400C SpinMeister® Inline Vacuum Filter
The Solberg CT-SML345-400C is a heavy-duty inline straight-through vacuum filter engineered for severe-duty industrial applications with high dust and particulate loading. Utilizing Solberg’s advanced SpinMeister® centrifugal precleaner technology, this filter efficiently removes large contaminants before they reach the primary filter element, helping extend filter life and improve overall system performance.
Constructed with a rugged cast aluminum top housing and durable black powder-coated carbon steel drop-down bucket, the CT-SML345-400C provides high dirt holding capacity, low pressure drop, and dependable filtration performance for vacuum pumps, pneumatic conveying systems, woodworking operations, and industrial material handling applications.
Key Features
- Advanced SpinMeister® centrifugal precleaner technology
- Heavy-duty inline straight-through vacuum filter design
- 4" FPT threaded inlet and outlet connections
- 85%+ precleaner efficiency at 15 microns
- 99%+ filtration efficiency with secondary paper element
- Extreme-duty filtration for high dust environments
- Excellent removal of short fibers and coarse particulate
- Integrated low-pressure SpinMeister® design
- Reduced pressure drop compared to conventional precleaners
- Cast aluminum top with built-in baffle design
- Black powder-coated carbon steel drop-down bucket
- Large dirt holding capacity for extended service intervals
- Clip-release band for quick and easy maintenance
- Positive sealing assembly for reliable filtration performance
Specifications
- Model: CT-SML345-400C
- Series: SpinMeister® ST/CT Series
- Connection Size: 4"
- Connection Type: FPT
- Configuration: Inline Straight-Through Filter
- Recommended Airflow Range: 100–200 SCFM
- Secondary Element Flow Rating: 520 SCFM
- Precleaner Efficiency: 85%+ at 15 Microns
- Paper Element Efficiency: 99%+ at 2 Microns
- Polyester Element Efficiency: 99%+ at 5 Microns
- Housing Material: Cast Aluminum / Molded Composite
- Bucket Material: Black Powder-Coated Carbon Steel
- Dimensions: Approx. 19.75" Height x 13.5" Diameter
- Suggested Service Clearance: 5.25"
- Approximate Weight: 25 lbs
- Replacement Element: 234P / 235P Series
- Continuous Temperature Range: -15°F to 220°F (-26°C to 104°C)
- Vacuum Rating: Coarse Vacuum Service
Applications
- Vacuum pump systems
- Pneumatic conveying systems
- Woodworking operations
- Material handling systems
- Plastic processing equipment
- Screw compressor systems
- Food processing vacuum applications
- Vacuum lifting systems
- Vacuum freeze drying systems
- Central vacuum systems
- Industrial dust collection applications
Optional Features
- Polished aluminum SpinMeister® assemblies
- Alternative filter media configurations
- Pressure drop gauges
- Gauge and mounting bracket taps
- Spool piece extenders
- Custom bucket configurations
- Additional inlet filter assembly options
The CT-SML345-400C SpinMeister® vacuum filter is designed to maximize filter life and protect industrial vacuum equipment by efficiently removing large particulate contaminants before they reach the primary filter media, helping reduce maintenance costs and improve operational uptime in demanding industrial environments.
