Product Description

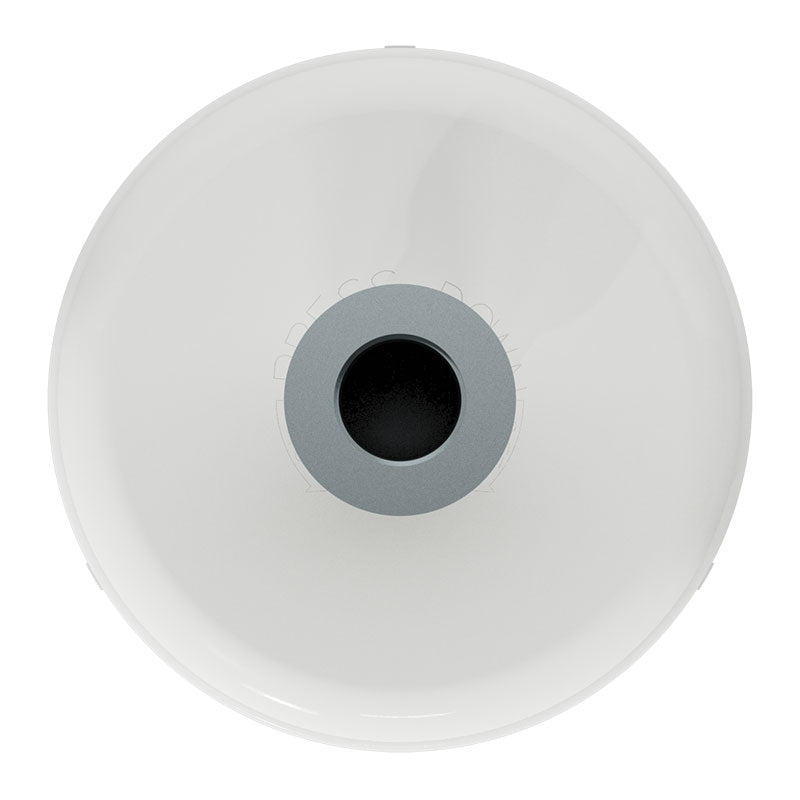

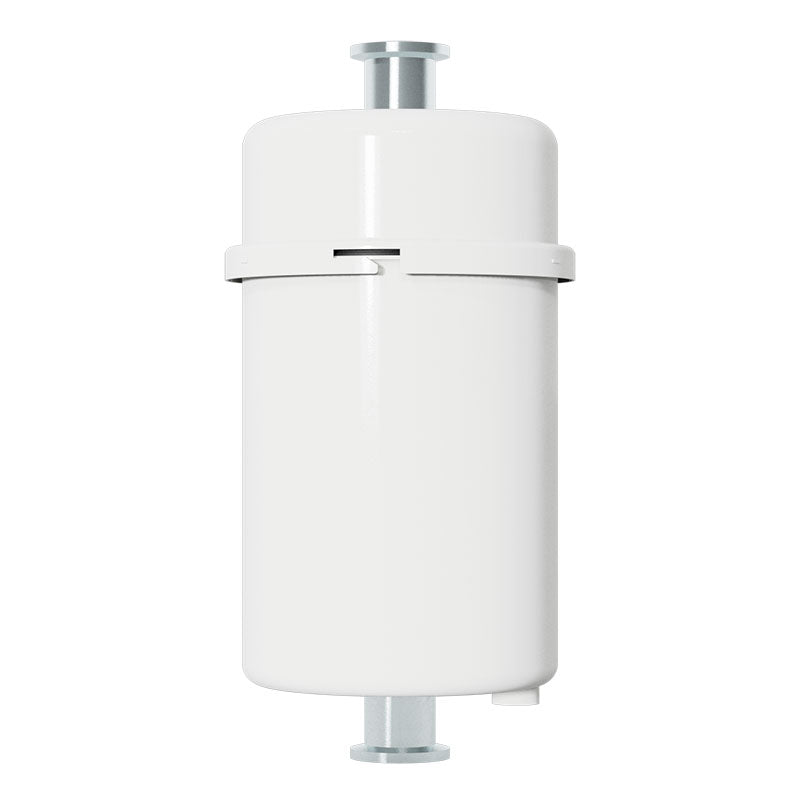

Solberg DSV-PSG725/AC10-NW16 Oil Mist & Odor Discharge Filter
The Solberg DSV-PSG725/AC10-NW16 is a two-stage vacuum pump discharge filter designed to remove both oil mist and unwanted odors from oil-sealed vacuum pump exhaust. It combines high-efficiency coalescing filtration with activated carbon adsorption to deliver clean, odor-free exhaust air.
This model features a durable carbon steel housing with a corrosion-resistant white powder-coated finish. It is engineered for continuous-duty industrial operation and includes an integrated drain port and optional backpressure relief valve to protect the vacuum pump from excessive differential pressure.
Key Features
- Two-stage filtration: coalescing oil mist removal + activated carbon odor adsorption
- NW16 ISO flange inlet and outlet connections
- 0.3 micron high-efficiency filtration media
- 99.97% filtration efficiency for oil mist removal
- Activated carbon element removes process-related odors
- Seamless drawn carbon steel housing construction
- White powder-coated corrosion-resistant finish
- Integrated drain port for collected oil removal
- Backpressure relief valve (opens at approx. 0.5 bar differential, DEE option)
- Designed for easy servicing and fast element replacement
Specifications
- Model: DSV-PSG725/AC10-NW16
- Series: DSV / DEE Oil Mist & Odor Filter Series
- Connection Type: NW16 ISO flange
- Flow Capacity: ~20 m³/hr (approx.)
- Filtration Rating: 0.3 micron
- Filtration Efficiency: 99.97%
- Operating Temperature: 0°C to 80°C (32°F to 180°F)
- Housing Material: Carbon steel (powder-coated white)
- Weight: ~1.4 kg
- Primary Element: PSG725 coalescing element
- Odor Element: AC10 activated carbon cartridge
Applications
- Oil-sealed vacuum pump exhaust systems
- Industrial vacuum processes
- Laboratory vacuum systems
- Vacuum coating and freeze drying systems
- Semiconductor and electronics manufacturing
- Refrigeration and HVAC evacuation systems
- Processes requiring odor control in exhaust air
Benefits
- Removes both oil mist and unpleasant odors from exhaust air
- Improves workplace air quality and safety
- Reduces environmental emissions
- Supports efficient and stable vacuum pump operation
The DSV-PSG725/AC10-NW16 is engineered for applications requiring advanced exhaust treatment, combining oil mist separation and activated carbon odor control in a compact, service-friendly design.
