Product Description

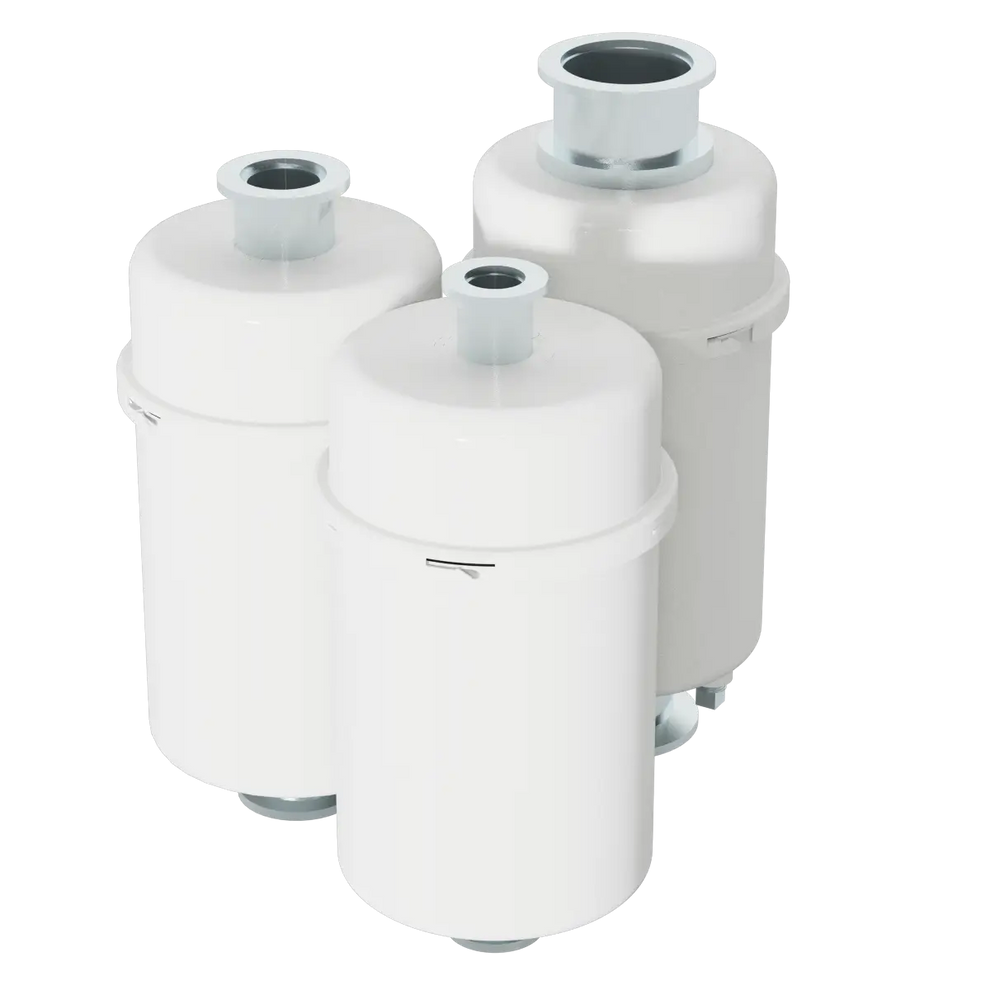

Solberg DSV-PSG725/AC10-NW25 Oil Mist & Odor Discharge Filter
The Solberg DSV-PSG725/AC10-NW25 is a dual-stage vacuum pump exhaust filter designed to remove both oil mist and process-related odors from oil-sealed vacuum pump discharge air. It combines a high-efficiency coalescing element with an activated carbon adsorption stage for clean, odor-free exhaust.
This model features a durable carbon steel housing with a corrosion-resistant white powder-coated finish. It is engineered for continuous-duty operation and includes an integrated drain port along with an optional backpressure relief valve to protect the vacuum pump from excessive differential pressure.
Key Features
- Dual-stage filtration: oil mist coalescing + activated carbon odor removal
- NW25 ISO flange inlet and outlet connections
- 0.3 micron high-efficiency filtration media
- 99.97% filtration efficiency for oil mist separation
- Activated carbon element for odor adsorption (AC10)
- Seamless drawn carbon steel housing construction
- White powder-coated corrosion-resistant finish
- Integrated drain port for collected oil removal
- Backpressure relief valve option (opens at approx. 0.5 bar differential)
- Designed for easy servicing and element replacement
Specifications
- Model: DSV-PSG725/AC10-NW25
- Series: DSV / DEE Oil Mist & Odor Filter Series
- Connection Type: NW25 ISO flange
- Flow Capacity: ~20 m³/hr (approx. 12 SCFM)
- Filtration Rating: 0.3 micron
- Filtration Efficiency: 99.97%
- Operating Temperature: 0°C to 80°C (32°F to 180°F)
- Housing Material: Carbon steel (white powder-coated)
- Approximate Weight: ~1.4 kg (?3 lbs)
- Primary Element: PSG725 coalescing element
- Odor Element: AC10 activated carbon cartridge
Applications
- Oil-sealed vacuum pump exhaust systems
- Industrial vacuum and process systems
- Laboratory vacuum systems
- Vacuum coating and freeze drying systems
- Semiconductor and electronics manufacturing
- Refrigeration and HVAC evacuation systems
- Processes requiring odor control in exhaust air
Benefits
- Removes both oil mist and process odors from exhaust air
- Improves workplace air quality and safety
- Reduces environmental emissions
- Supports stable and efficient vacuum pump operation
The DSV-PSG725/AC10-NW25 is engineered for applications requiring advanced exhaust treatment, combining oil mist separation and activated carbon odor control in a compact and service-friendly design.
