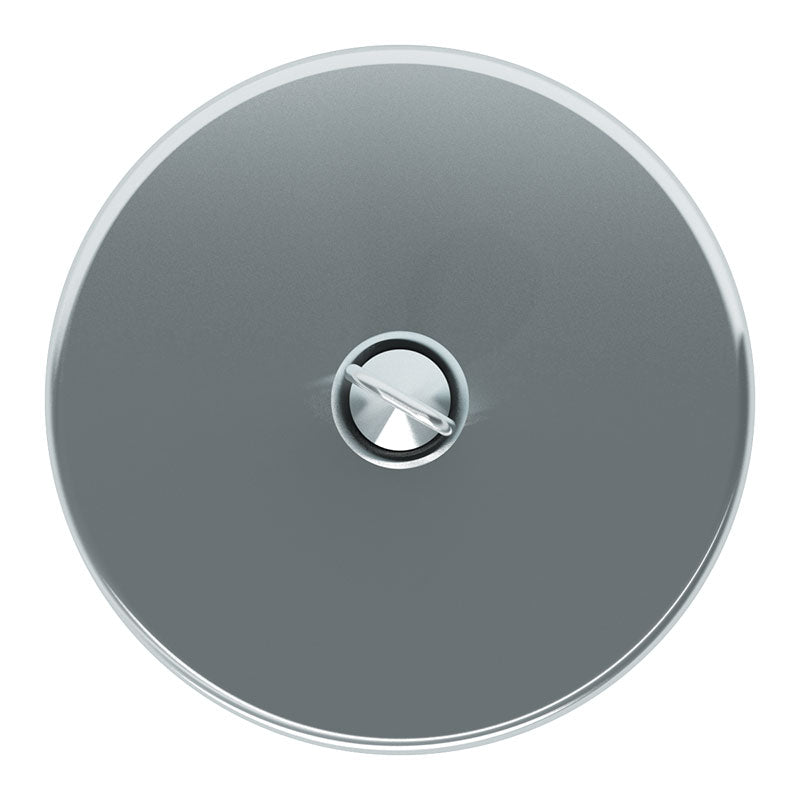

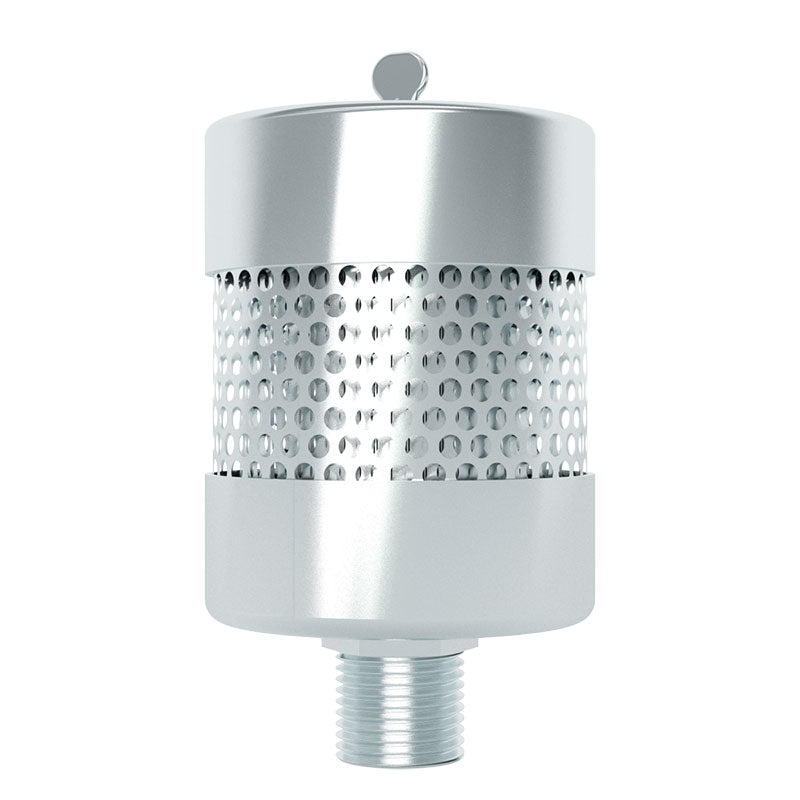

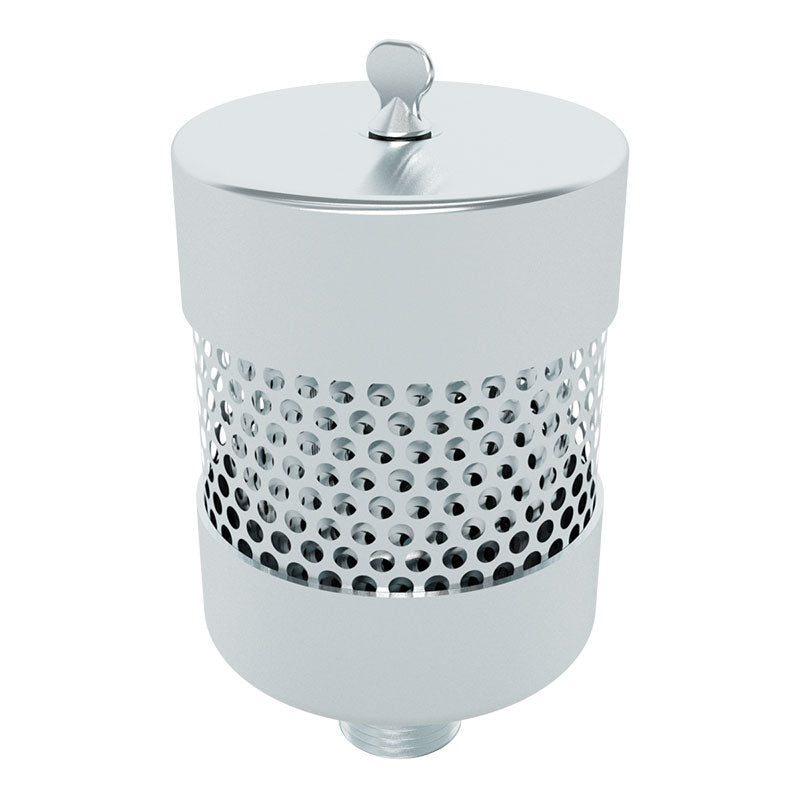

Solberg EF-FG5-075 Compact Oil Mist Discharge Filter
The Solberg EF-FG5-075 is a compact oil mist discharge filter designed for small oil-sealed vacuum pumps and industrial exhaust applications. It efficiently captures fine oil fog, mist, and aerosol particles from exhaust streams, helping maintain cleaner working environments and reducing oil emissions.
This unit features a durable steel body with a nickel-plated corrosion-resistant finish and a high-efficiency coalescing element. Its compact design makes it ideal for space-limited installations while still providing reliable oil mist separation performance in continuous-duty operation.
Key Features
- High-efficiency oil mist and aerosol separation from vacuum pump exhaust
- 3/4" MPT inlet and outlet connections
- 0.3 micron coalescing filtration media
- 99.97% filtration efficiency
- Compact inline design for small systems
- Nickel-plated steel housing for corrosion resistance
- Seamless drawn housing construction
- Easy maintenance with replaceable FG5 element
- Oil drain-back design returns collected oil to pump
Specifications
- Model: EF-FG5-075
- Series: EF Compact Oil Mist Filter Series
- Connection Size: 3/4"
- Connection Type: MPT
- Flow Capacity: ~4.5 SCFM
- Filtration Rating: 0.3 micron
- Filtration Efficiency: 99.97%
- Operating Temperature: 68°F to 180°F (20°C to 80°C)
- Housing Material: Steel (nickel-plated finish)
- Weight: ~0.9 lbs
- Replacement Element: FG5
Applications
- Small oil-sealed vacuum pump systems
- Laboratory vacuum equipment
- Vacuum coating and freeze drying systems
- Refrigeration and HVAC evacuation systems
- Leak detection and testing systems
- Light industrial vacuum applications
Benefits
- Improves air quality by reducing oil mist emissions
- Protects equipment from contamination
- Supports efficient and clean vacuum operation
- Compact design for easy installation in tight spaces
The EF-FG5-075 provides reliable oil mist separation in compact vacuum systems, combining efficient filtration performance with a durable, low-maintenance design.
