Product Description

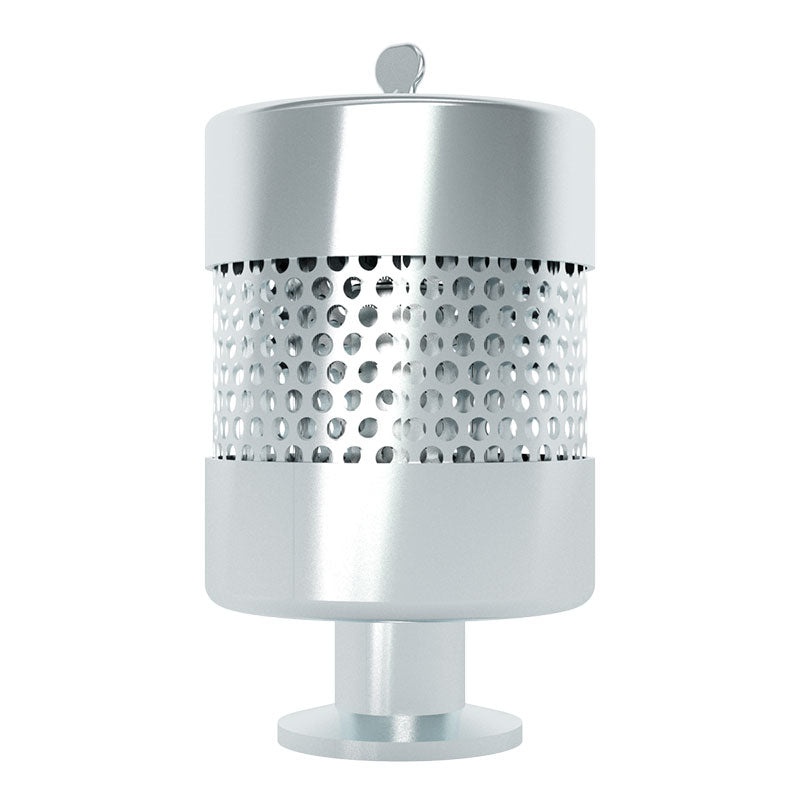

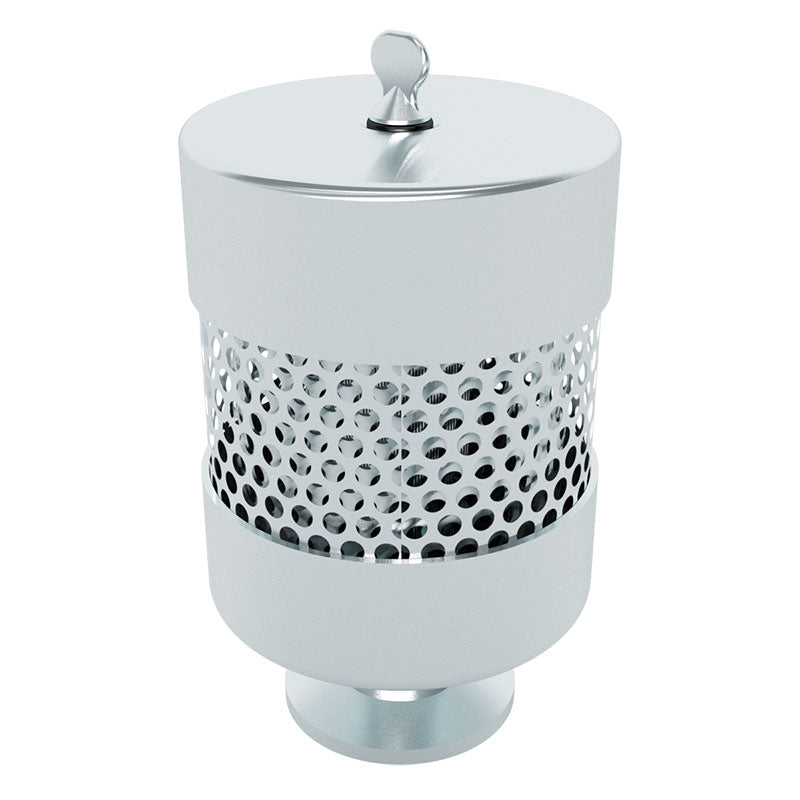

Solberg EF-FG5-NW2516 Oil Mist Discharge Filter
The Solberg EF-FG5-NW2516 is a compact high-efficiency oil mist discharge filter designed for oil-sealed vacuum pumps and laboratory-grade vacuum systems. It captures fine oil fog, mist, and aerosol particles from exhaust air streams, helping maintain clean environments and reducing oil emissions from vacuum pump operations.
This model features a durable steel housing with a nickel-plated corrosion-resistant finish and a replaceable coalescing filter element. Its compact inline design with NW25 ISO flange connections makes it ideal for laboratory, research, and light industrial vacuum applications where space efficiency and clean exhaust performance are critical.
Key Features
- High-efficiency oil mist and aerosol separation from vacuum exhaust
- NW25 ISO flange inlet and outlet connections
- 0.3 micron coalescing filtration media
- 99.97% filtration efficiency
- Compact inline design for laboratory and OEM systems
- Nickel-plated steel housing for corrosion resistance
- Seamless drawn housing construction
- Easy maintenance with replaceable FG5 element
- Oil drain-back design returns collected oil to pump
- Low pressure drop for efficient vacuum performance
Specifications
- Model: EF-FG5-NW2516
- Series: EF Compact Oil Mist Filter Series
- Connection Type: NW25 ISO flange
- Flow Capacity: ~4.5 SCFM
- Filtration Rating: 0.3 micron
- Filtration Efficiency: 99.97%
- Operating Temperature: 68°F to 180°F (20°C to 80°C)
- Housing Material: Steel (nickel-plated finish)
- Media Type: Coalescing element
- Replacement Element: FG5
- Approximate Dimensions: ~101.6 mm (length varies by configuration)
- Approximate Weight: ~0.6–0.7 kg
Applications
- Small oil-sealed vacuum pump exhaust systems
- Laboratory and research vacuum systems
- Semiconductor and electronics manufacturing
- Vacuum coating and freeze drying equipment
- Leak detection and vacuum testing systems
- HVAC and refrigeration evacuation systems
Benefits
- Improves workplace air quality by reducing oil mist
- Protects sensitive equipment from contamination
- Compact design for OEM and lab integration
- Supports stable and efficient vacuum pump operation
The EF-FG5-NW2516 is engineered for precision vacuum applications requiring reliable oil mist separation in a compact ISO-flange format, delivering clean exhaust and dependable performance.
