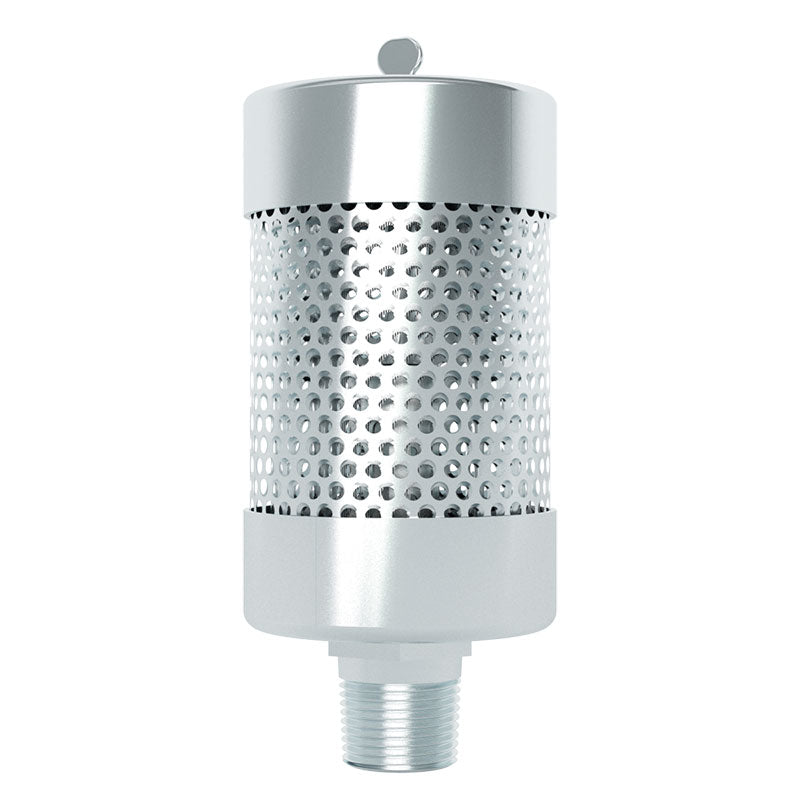

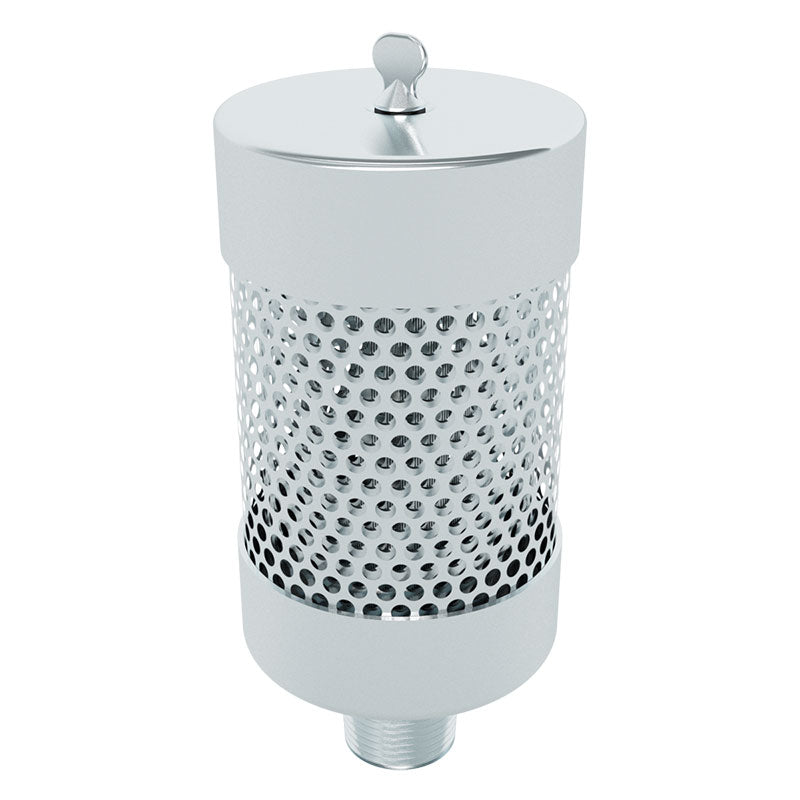

Solberg EF-FG7-050 Compact Oil Mist Discharge Filter
The Solberg EF-FG7-050 is a compact high-efficiency oil mist discharge filter designed for small oil-sealed vacuum pumps and laboratory or light industrial exhaust systems. It captures fine oil fog, mist, and aerosol particles from exhaust streams, helping maintain clean air quality, protect equipment, and reduce oil emissions.
Built with a durable steel housing and nickel-plated corrosion-resistant finish, this compact inline filter is designed for reliable performance in continuous-duty applications. It uses a replaceable high-efficiency coalescing element for consistent oil mist separation and low pressure drop.
Key Features
- High-efficiency oil mist and aerosol separation from vacuum pump exhaust
- 1/2" MPT inlet and outlet connections
- 0.3 micron coalescing filtration media
- 99.97% filtration efficiency
- Compact inline design for small vacuum systems
- Nickel-plated steel housing for corrosion resistance
- Seamless drawn housing construction
- Easy maintenance with replaceable FG7 element
- Oil drain-back design returns collected oil to pump
- Low pressure drop for efficient operation
Specifications
- Model: EF-FG7-050
- Series: EF Compact Oil Mist Filter Series
- Connection Size: 1/2" MPT
- Flow Capacity: ~7 SCFM
- Filtration Rating: 0.3 micron
- Filtration Efficiency: 99.97%
- Operating Temperature: 68°F to 180°F (20°C to 80°C)
- Housing Material: Nickel-plated steel
- Weight: ~0.6–1.8 lbs (depending on configuration)
- Replacement Element: FG7
Applications
- Small oil-sealed vacuum pump exhaust systems
- Laboratory vacuum systems
- Leak detection and testing systems
- Vacuum coating and freeze drying systems
- HVAC and refrigeration evacuation service
- Semiconductor and electronics applications
- General light industrial vacuum processes
Benefits
- Improves workplace air quality by reducing oil mist emissions
- Protects vacuum pumps and downstream equipment
- Compact design for easy installation in tight spaces
- Reliable long-term operation with low maintenance needs
The EF-FG7-050 is engineered for small vacuum systems requiring efficient oil mist separation, combining compact design with high-performance coalescing filtration.
