Product Description

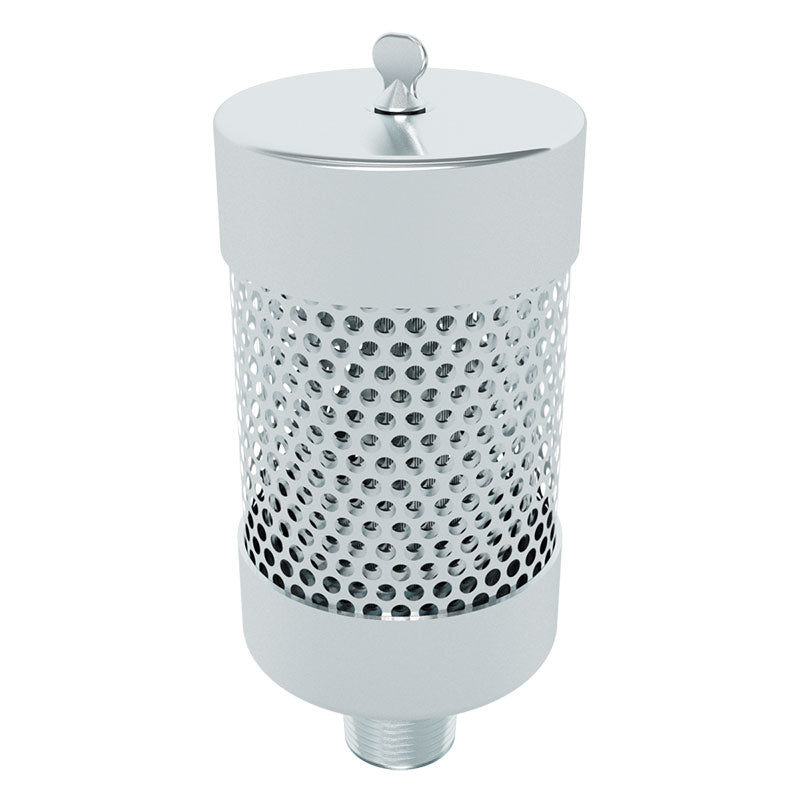

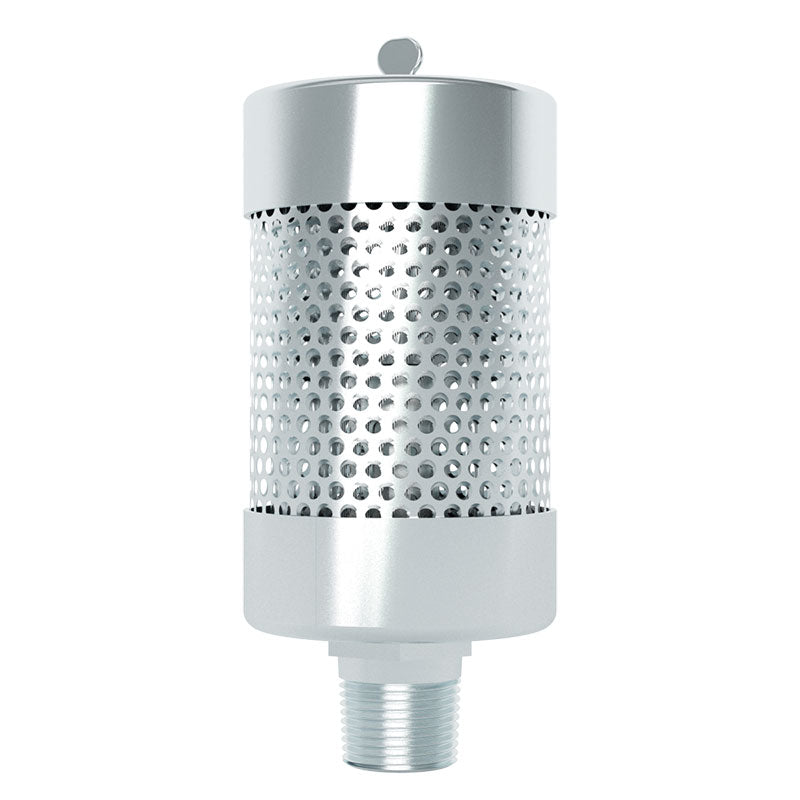

Solberg EF-FG7-075 Compact Oil Mist Discharge Filter
The Solberg EF-FG7-075 is a compact high-efficiency oil mist discharge filter designed for small oil-sealed vacuum pumps and light industrial exhaust systems. It is engineered to capture fine oil fog, mist, and aerosol particles from pump exhaust, helping maintain cleaner air quality, reduce oil emissions, and protect surrounding equipment.
This model features a durable nickel-plated steel housing and a replaceable high-efficiency coalescing element. Its compact inline design makes it ideal for space-constrained installations while still delivering reliable filtration performance in continuous-duty vacuum applications.
Key Features
- High-efficiency oil mist and aerosol separation from vacuum pump exhaust
- 3/4" MPT inlet and outlet connections
- 0.3 micron coalescing filtration media
- 99.97% filtration efficiency
- Compact inline design for small vacuum systems
- Nickel-plated steel housing for corrosion resistance
- Seamless drawn housing construction
- Easy maintenance with replaceable FG7 element
- Oil drain-back design returns collected oil to pump
- Low pressure drop for efficient operation
Specifications
- Model: EF-FG7-075
- Series: EF Compact Oil Mist Filter Series
- Connection Size: 3/4" MPT
- Flow Capacity: ~7 SCFM
- Filtration Rating: 0.3 micron
- Filtration Efficiency: 99.97%
- Operating Temperature: 68°F to 180°F (20°C to 80°C)
- Housing Material: Nickel-plated steel
- Weight: ~0.9 lbs
- Replacement Element: FG7
Applications
- Small oil-sealed vacuum pump exhaust systems
- Laboratory vacuum systems
- Vacuum coating and freeze drying systems
- Refrigeration and HVAC evacuation service
- Leak detection and testing systems
- Light industrial vacuum applications
Benefits
- Improves workplace air quality by reducing oil mist emissions
- Protects vacuum pumps and downstream equipment
- Compact design for easy installation in tight spaces
- Supports stable and efficient vacuum operation
The EF-FG7-075 is engineered to provide reliable oil mist separation in compact vacuum systems, combining efficient filtration performance with a durable and low-maintenance design.
