Product Description

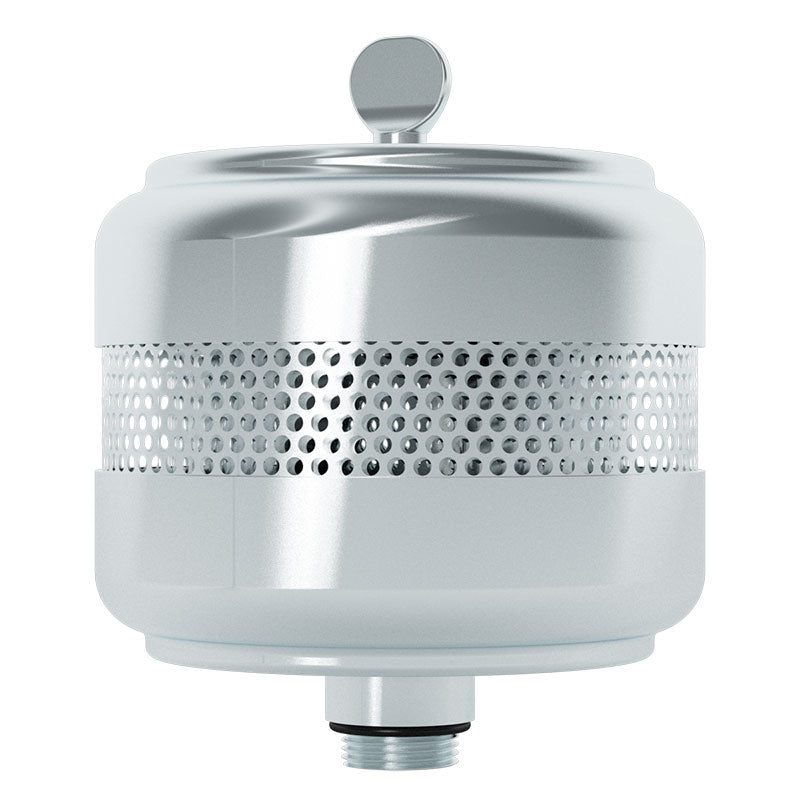

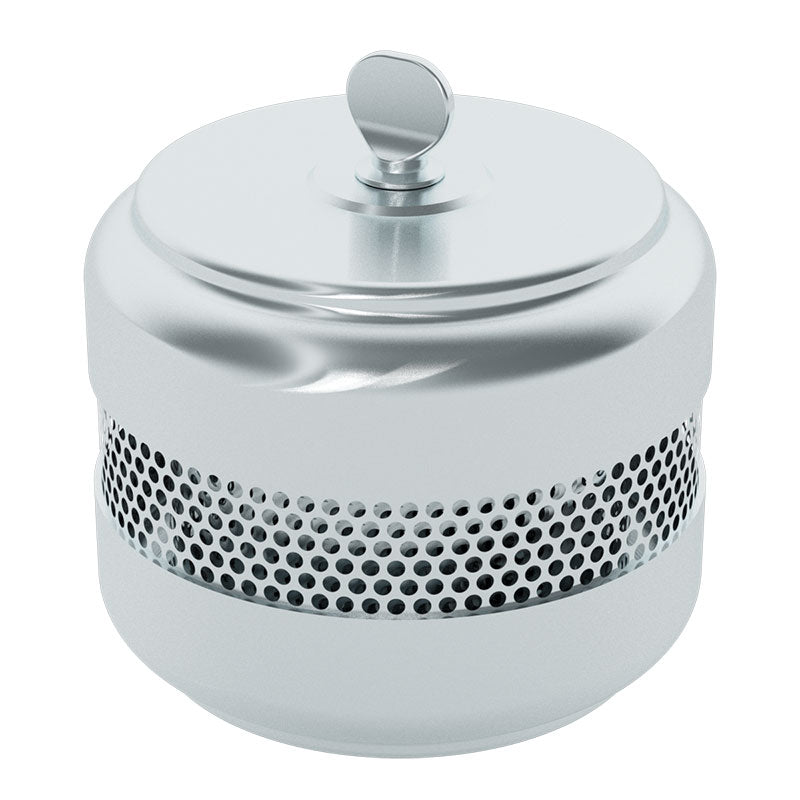

Solberg EF-FG9-103 Oil Mist Discharge Filter
The Solberg EF-FG9-103 is a compact high-efficiency oil mist discharge filter designed for oil-sealed vacuum pumps and industrial exhaust systems. It effectively captures fine oil fog, mist, and aerosol particles from exhaust air streams, helping maintain clean environments, reduce emissions, and protect surrounding equipment.
Built with a durable steel housing and nickel-plated corrosion-resistant finish, this inline filter is designed for reliable continuous-duty operation. It uses a replaceable FG9 coalescing element that delivers consistent high-efficiency oil separation with low pressure drop.
Key Features
- High-efficiency oil mist and aerosol separation from vacuum pump exhaust
- 1" 1-20 UNEF threaded connection
- 0.3 micron coalescing filtration media
- 99.97% filtration efficiency
- Compact inline design for small vacuum systems
- Nickel-plated steel housing for corrosion resistance
- Seamless drawn housing construction
- Easy maintenance with replaceable FG9 element
- Oil drain-back design returns collected oil to pump
- Low pressure drop for efficient operation
Specifications
- Model: EF-FG9-103
- Series: EF Compact Oil Mist Filter Series
- Connection Size: 1" (1-20 UNEF)
- Flow Capacity: ~7–16 SCFM (depending on system conditions)
- Filtration Rating: 0.3 micron
- Filtration Efficiency: 99.97%
- Operating Temperature: 68°F to 180°F (20°C to 80°C)
- Housing Material: Nickel-plated steel
- Weight: ~0.8–1.0 lb
- Replacement Element: FG9
Applications
- Small oil-sealed vacuum pump exhaust systems
- Industrial and laboratory vacuum systems
- Vacuum coating and freeze drying systems
- Leak detection and testing systems
- Refrigeration and HVAC evacuation service
- Semiconductor and electronics manufacturing
- Light industrial vacuum applications
Benefits
- Improves air quality by reducing oil mist emissions
- Protects sensitive equipment from contamination
- Compact design for easy installation in tight spaces
- Reliable performance in continuous-duty operation
The EF-FG9-103 is engineered to provide efficient oil mist separation in compact vacuum systems, combining high-performance filtration with durable construction for long-term industrial use.
