Product Description

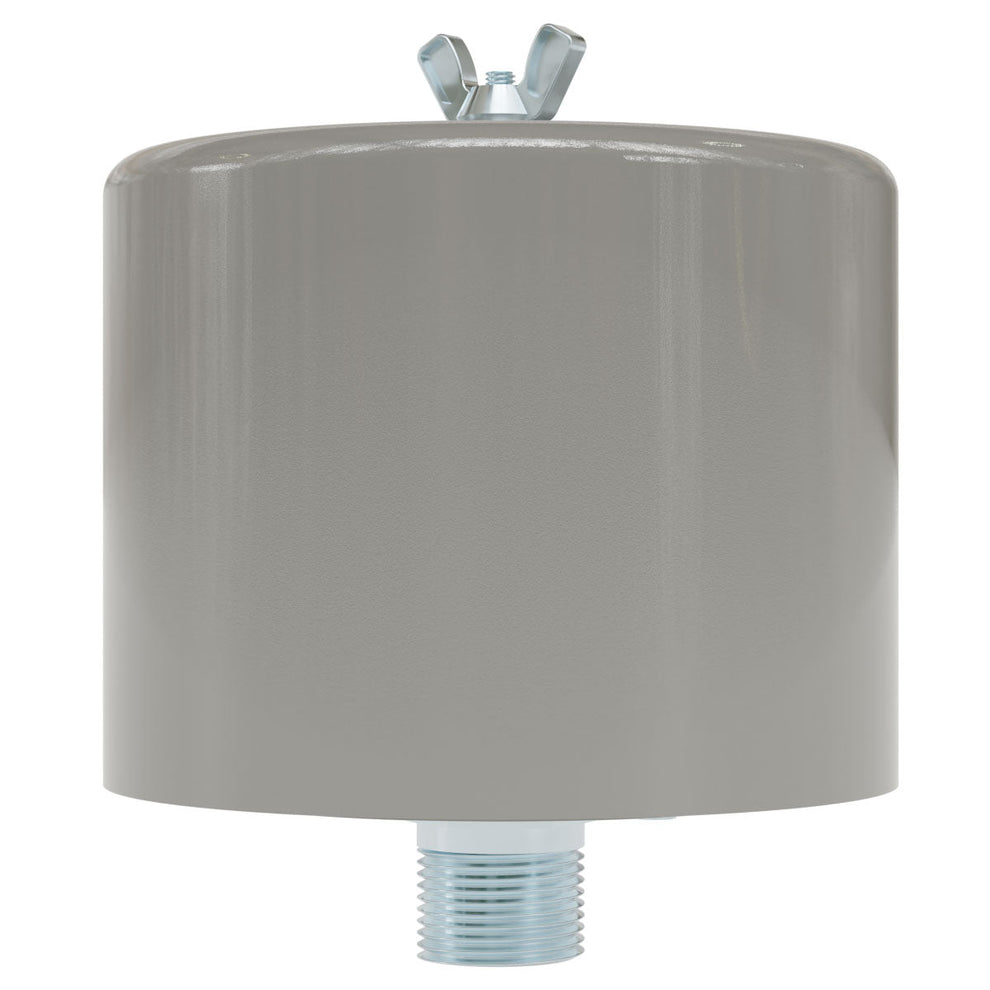

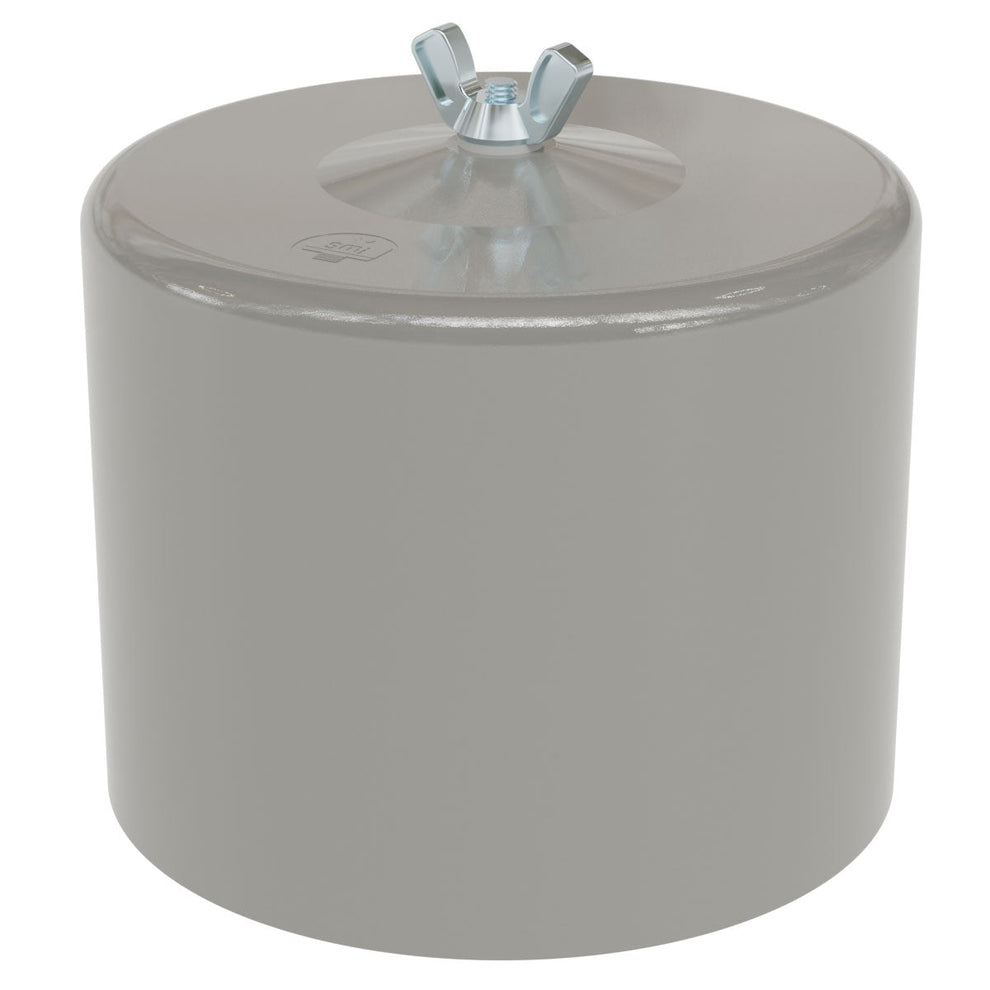

Solberg F-19P-100 Inlet Filter Silencer
The Solberg F-19P-100 Inlet Filter Silencer is a durable industrial air intake filtration and sound attenuation solution engineered for blowers, compressors, fans, and pneumatic conveying systems. Designed with a fully drawn weatherhood, tubular silencing technology, and a high-efficiency polyester filter element, this rugged assembly helps reduce intake noise while protecting equipment from airborne contaminants in demanding industrial environments.
Key Features
- High-efficiency polyester filter media with 99%+ filtration efficiency at 5 microns
- Integrated tubular silencing design maximizes sound attenuation while maintaining airflow efficiency
- Fully drawn weatherhood protects against rain, debris, and environmental contaminants
- Heavy gauge carbon steel construction with corrosion-resistant gray powder coat finish
- Low entry velocity air gap design improves airflow and reduces restriction
- Low pressure drop outlet pipe and center bracket design enhances system efficiency
- Suitable for both vertical and horizontal mounting configurations
- Designed for blower, fan, compressor, and industrial intake applications
Specifications
- Model: F-19P-100
- Series: F Series
- Connection Size: 1 Inch
- Connection Type: MNPT
- Maximum Flow Capacity: 55 SCFM
- Filter Media: Polyester Element
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%+
- Housing Material: Carbon Steel
- Finish: Corrosion-Resistant Gray Powder Coat
- Outside Diameter: 6 Inches
- Overall Height: 6.62 Inches
- Nipple Length: 1.63 Inches
- Operating Temperature Range: -15°F to 220°F (-26°C to 104°C)
- Recommended Filter Change-Out: 15-20 in. H2O above initial pressure drop
- Replacement Element: 19P™
Applications
- Side Channel Blowers
- Positive Displacement Blowers
- Piston Compressors
- Screw Compressors
- Pneumatic Conveying Systems
- Waste Water Aeration
- Hydraulic Breathers
- Industrial Workshop Equipment
- Ash Handling Systems
- General Industrial Air Intake Applications
Benefits
- Protects critical equipment from airborne dust and particulate contamination
- Reduces intake noise for quieter industrial operation
- Weatherhood design supports outdoor and harsh environment installations
- Low restriction airflow design improves operating efficiency
- Heavy-duty construction ensures long service life
- Reusable polyester media helps reduce maintenance costs
The Solberg F-19P-100 combines efficient intake filtration, advanced silencing performance, and rugged industrial durability into a compact assembly ideal for blower, compressor, and pneumatic system air intake applications.
