age_group:
18+
category:
Industrial Supplies
country_of_origin:
USA
manufacturer:
Solberg Manufacturing
mpn:
F-19P-125
subcategory:
Filtration Equipment
type:
Air Intake Filters & Silencers
Product Description

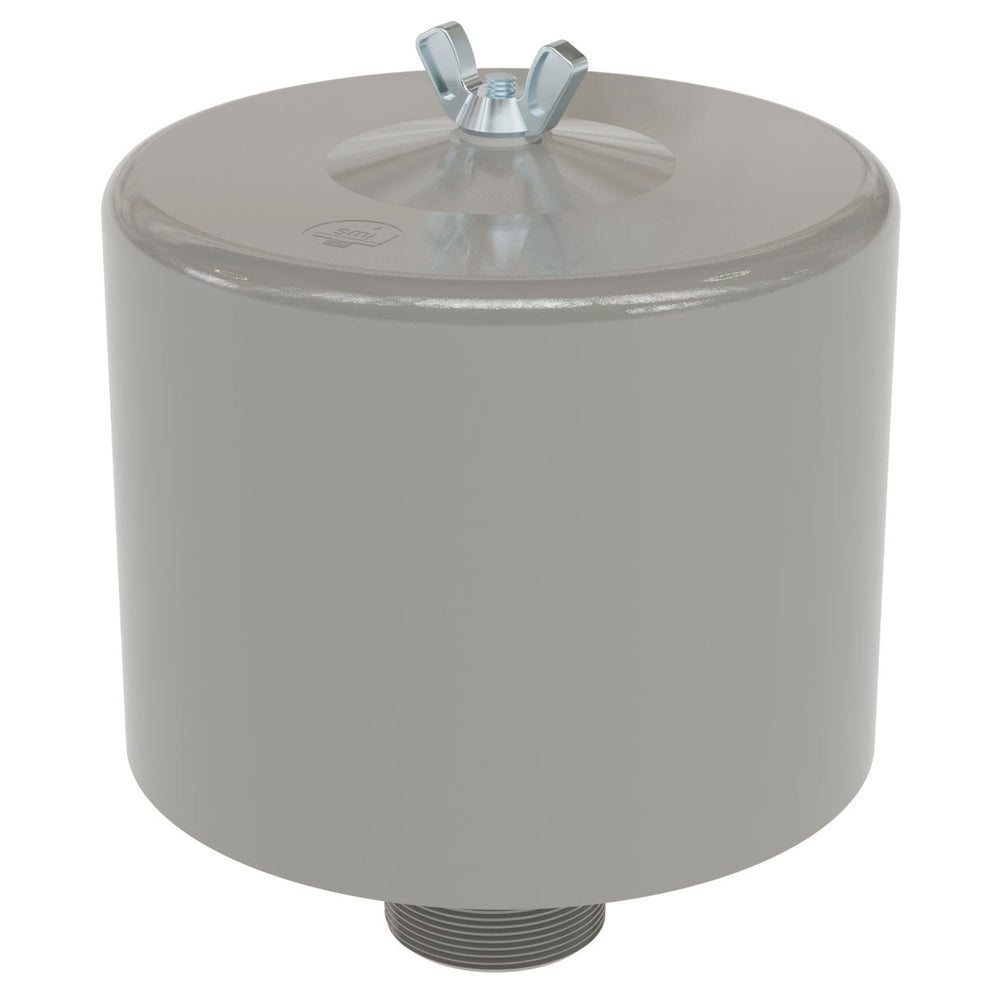

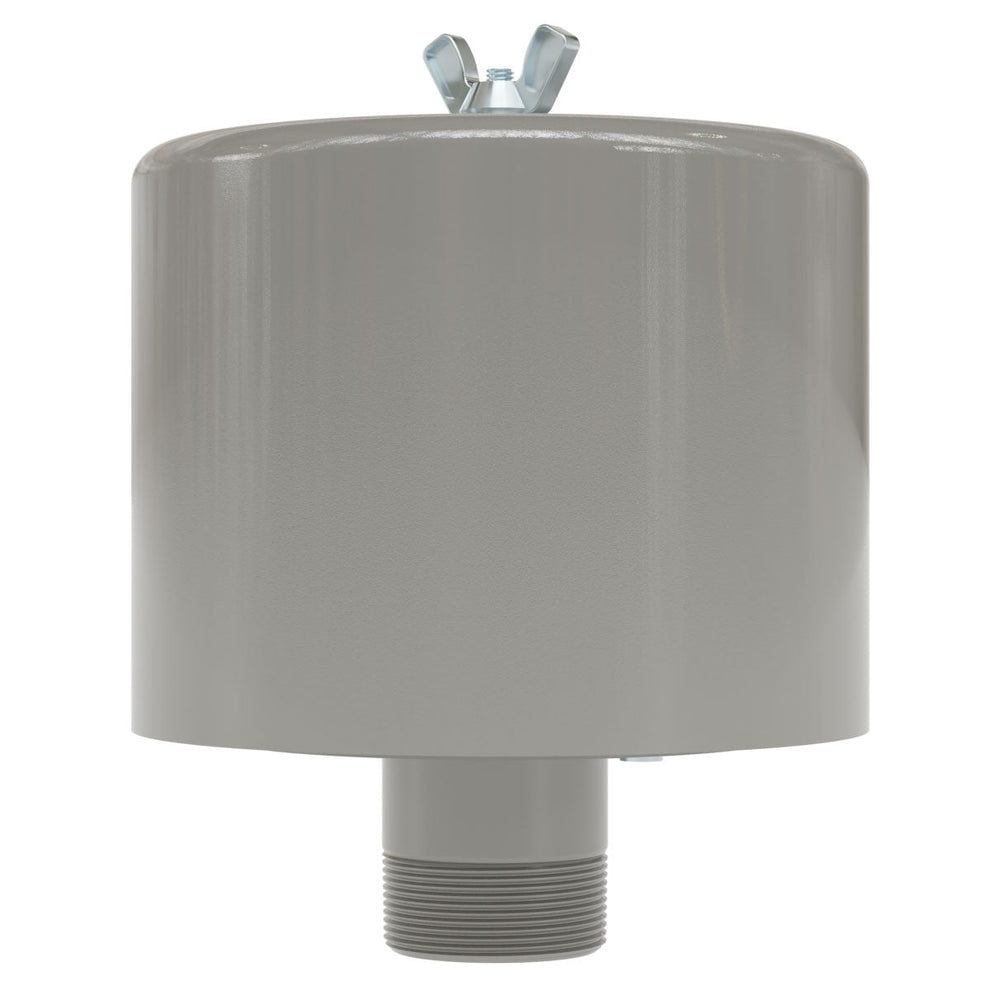

Solberg F-19P-125 Inlet Filter Silencer
The Solberg F-19P-125 Inlet Filter Silencer is a rugged industrial air intake filtration and sound attenuation solution designed for blowers, compressors, fans, and pneumatic conveying systems. Featuring a fully drawn weatherhood, tubular silencing technology, and a high-efficiency polyester filter element, this heavy-duty assembly helps reduce intake noise while protecting equipment from airborne contaminants in demanding industrial environments.
Key Features
- High-efficiency polyester filter media with 99%+ filtration efficiency at 5 microns
- Integrated tubular silencing system reduces intake noise while maintaining airflow efficiency
- Fully drawn weatherhood protects against rain, debris, and harsh environmental conditions
- Heavy gauge carbon steel construction with corrosion-resistant gray powder coat finish
- Low entry velocity air gap design minimizes airflow restriction
- Low pressure drop outlet pipe and center bracket design enhances operating efficiency
- Suitable for vertical and horizontal mounting configurations
- Designed for blower, compressor, and industrial air intake applications
Specifications
- Model: F-19P-125
- Series: F Series
- Connection Size: 1-1/4 Inch
- Connection Type: MNPT
- Maximum Flow Capacity: 75 SCFM
- Filter Media: Polyester Element
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%+
- Housing Material: Carbon Steel
- Finish: Corrosion-Resistant Gray Powder Coat
- Outside Diameter: 6 Inches
- Overall Height: 6.88 Inches
- Nipple Length: 1.88 Inches
- Operating Temperature Range: -15°F to 220°F (-26°C to 104°C)
- Recommended Filter Change-Out: 15-20 in. H2O above initial pressure drop
- Replacement Element: 19P™
Applications
- Side Channel Blowers
- Positive Displacement Blowers
- Piston Compressors
- Screw Compressors
- Pneumatic Conveying Systems
- Waste Water Aeration
- Hydraulic Breathers
- Industrial Workshop Equipment
- Ash Handling Systems
- General Industrial Air Intake Applications
Benefits
- Protects critical equipment from airborne dust and particulate contamination
- Reduces intake noise for quieter industrial operation
- Weatherhood construction supports outdoor and severe-duty installations
- Low restriction airflow design improves system efficiency
- Heavy-duty construction ensures long operational service life
- Reusable polyester media helps reduce maintenance costs
The Solberg F-19P-125 combines efficient intake filtration, advanced silencing performance, and rugged industrial durability into a compact assembly ideal for blower, compressor, and pneumatic system air intake applications.
