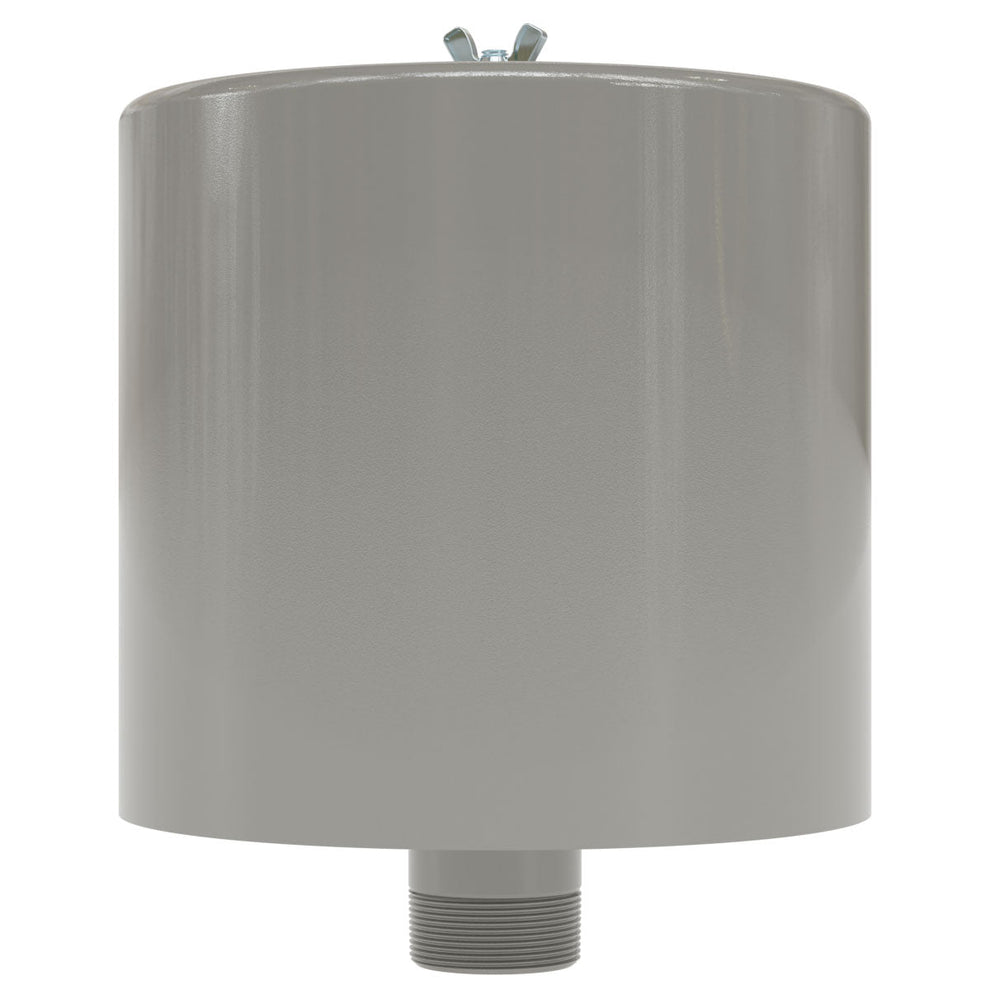

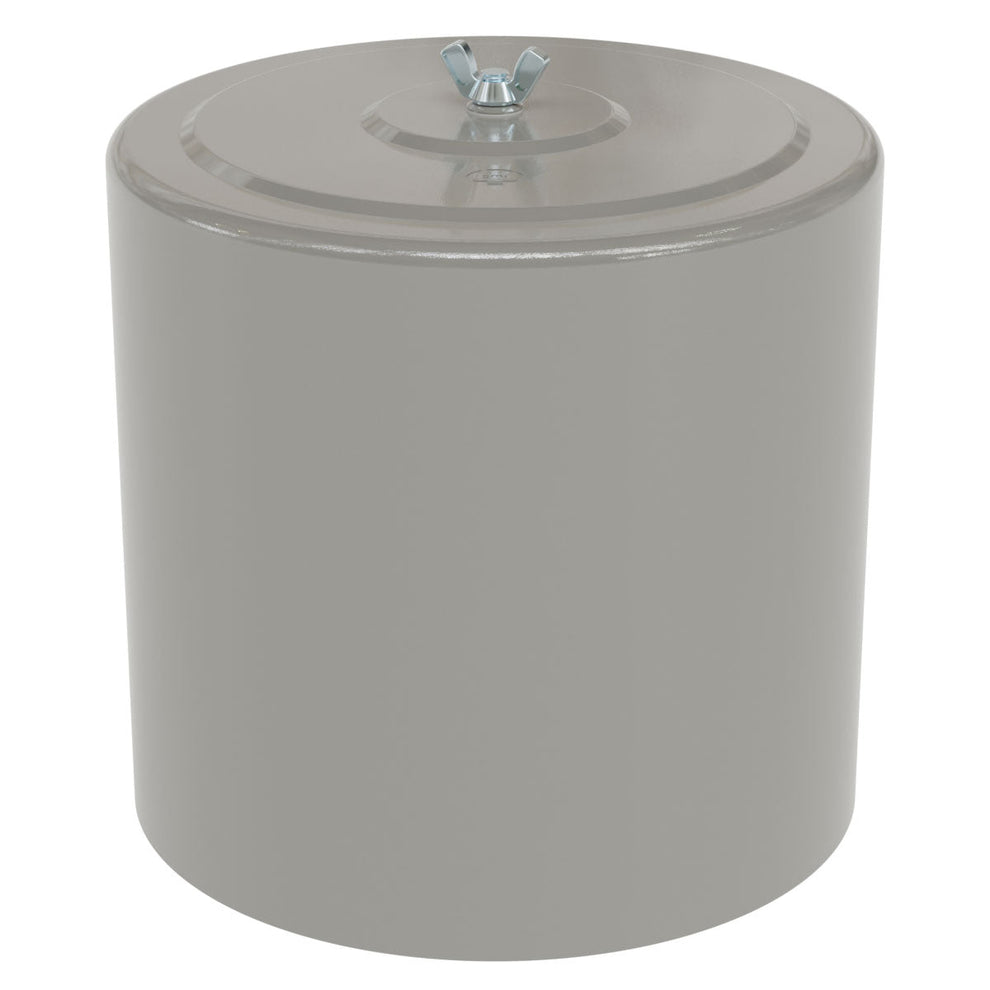

Solberg F-230P-250 Inlet Filter Silencer, 2-1/2" MNPT, 195 SCFM, 2 Micron Paper Element

Product Description

The Solberg F-230P-250 Inlet Filter Silencer is designed for compressors, blowers, vacuum pumps, and pneumatic conveying systems requiring reliable intake filtration and effective noise reduction. Featuring a rugged carbon steel housing with a fully drawn weatherhood and high-efficiency paper filter media, this inlet filter silencer helps protect equipment from airborne contaminants while maintaining optimal airflow performance.

• Model: F-230P-250
• Connection Size: 2-1/2" MNPT
• Maximum Flow Rate: 195 SCFM
• Element Flow Rating: 300 CFM
• Filter Rating: 2 Micron
• Filtration Efficiency: 99%+
• Filter Media: Paper
• Housing Material: Carbon Steel with Gray Powder Coat Finish
• Design: Weatherhood Inlet Filter Silencer
• Connection Style: Threaded / Screw-On
• Outside Diameter: 10.25 Inches
• Overall Height: 12 Inches
• Approximate Weight: 12 lbs
• Operating Temperature Range: -15°F to 220°F
• Replacement Element: 230P™
• Filter Change Differential: 15-20" H?O over initial pressure drop
• Applications: Compressors, PD Blowers, Side Channel Blowers, Vacuum Pumps, Pneumatic Conveying Systems, Waste Water Aeration, Industrial Equipment

The low-pressure-drop outlet pipe and center bracket design help maximize airflow efficiency while minimizing intake restriction and operating noise. The removable weatherhood allows easy filter inspection and replacement, making this unit ideal for industrial and severe-duty applications.
