Product Description

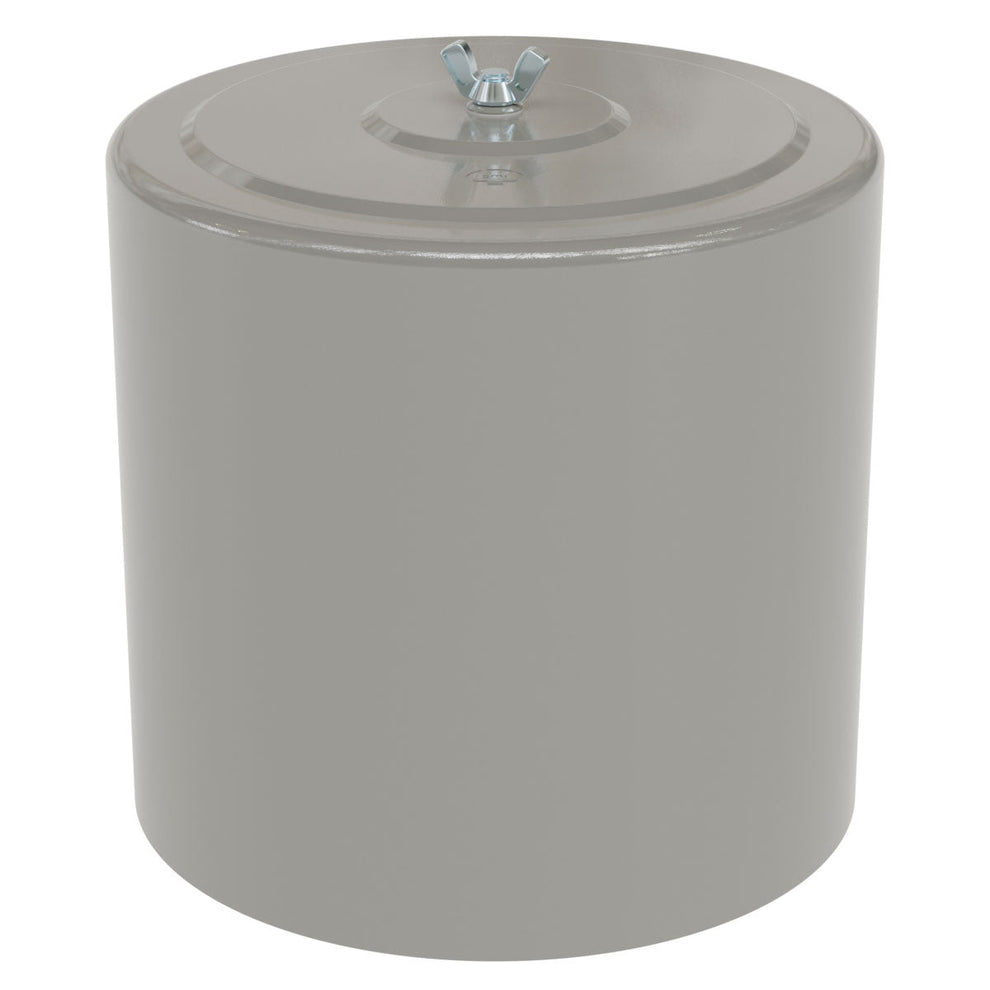

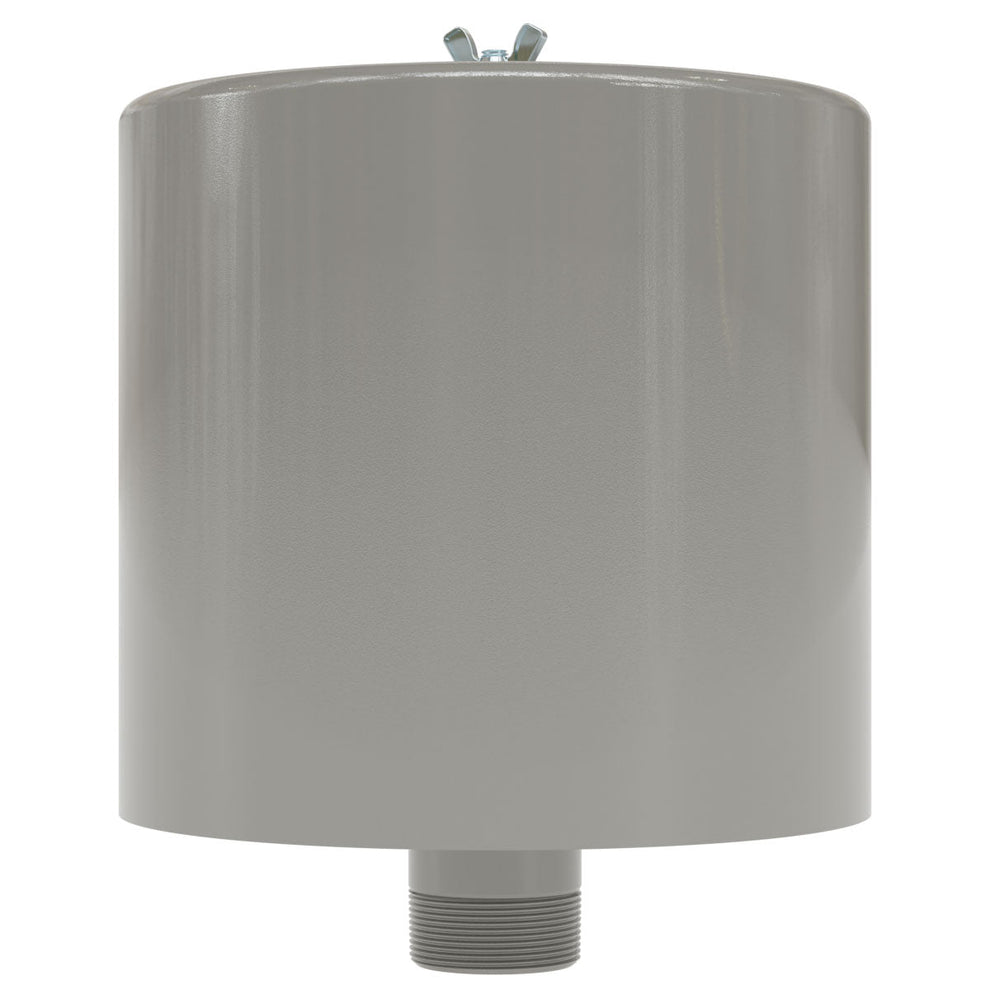

Solberg F-231P-250 Inlet Filter Silencer
The Solberg F-231P-250 Inlet Filter Silencer is a rugged industrial air intake filtration and sound attenuation solution engineered for blowers, compressors, fans, and pneumatic conveying systems. Featuring a fully drawn weatherhood, integrated tubular silencing technology, and a high-efficiency polyester filter element, this heavy-duty assembly helps reduce intake noise while protecting equipment from airborne contaminants in demanding industrial environments.
Key Features
- High-efficiency polyester filter media with 99%+ filtration efficiency at 5 microns
- Integrated tubular silencing system reduces intake noise while maintaining airflow efficiency
- Fully drawn weatherhood protects against rain, debris, and harsh environmental conditions
- Heavy gauge carbon steel construction with corrosion-resistant gray powder coat finish
- Low entry velocity air gap design minimizes airflow restriction
- Low pressure drop outlet pipe and center bracket design enhances operating efficiency
- Designed for both vertical and horizontal mounting configurations
- Reusable polyester element allows easy cleaning and extended service life
- Ideal for blower, compressor, and industrial intake filtration applications
Specifications
- Model: F-231P-250
- Series: F Series
- Connection Size: 2-1/2 Inch
- Connection Type: MNPT
- Maximum Flow Capacity: 250 SCFM
- Filter Media: Polyester Element
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%+
- Housing Material: Carbon Steel
- Finish: Corrosion-Resistant Gray Powder Coat
- Outside Diameter: 10 Inches
- Overall Height: 11.50 Inches
- Nipple Length: 2.75 Inches
- Operating Temperature Range: -15°F to 220°F (-26°C to 104°C)
- Recommended Filter Change-Out: 15-20 in. H2O above initial pressure drop
- Replacement Element: 231P™
Applications
- Side Channel Blowers
- Positive Displacement Blowers
- Piston Compressors
- Screw Compressors
- Pneumatic Conveying Systems
- Waste Water Aeration Systems
- Vacuum Pumps
- Industrial Fans
- Ash Handling Systems
- General Industrial Air Intake Applications
Benefits
- Protects critical equipment from airborne dust and particulate contamination
- Reduces intake noise for quieter industrial operation
- Weatherhood construction supports outdoor and severe-duty installations
- Low restriction airflow design improves system efficiency
- Heavy-duty steel construction ensures long operational life
- Reusable polyester media helps reduce maintenance costs
The Solberg F-231P-250 combines efficient intake filtration, advanced silencing performance, and rugged industrial durability into a compact assembly ideal for blower, compressor, and pneumatic system air intake applications.
