Product Description

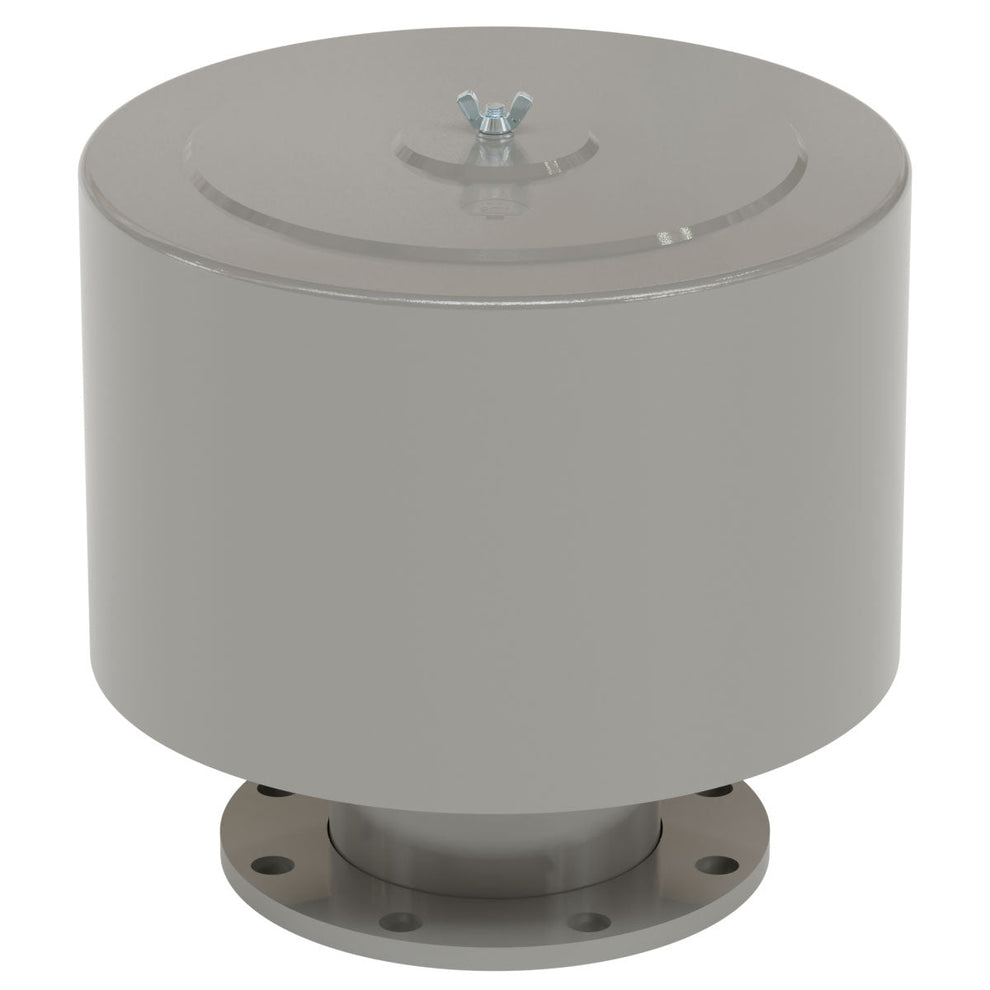

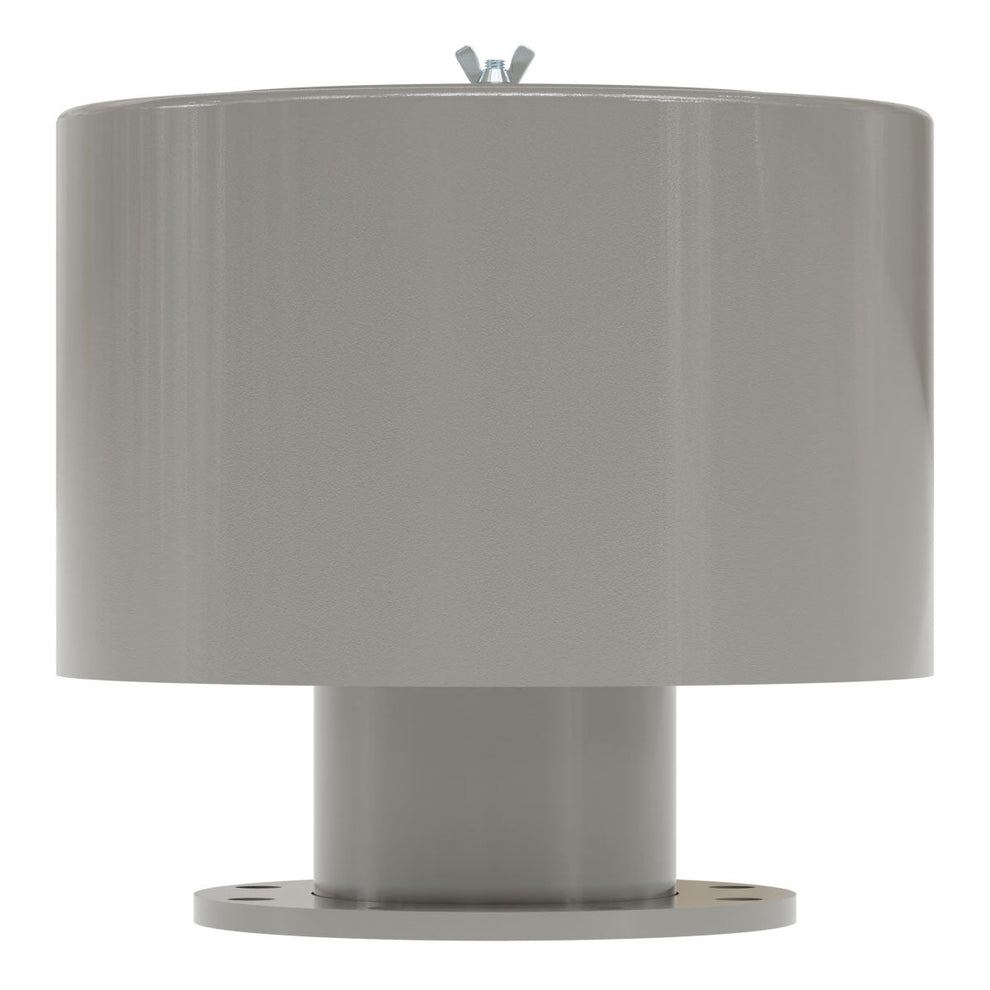

The Solberg F-274P-500F Inlet Filter Silencer is engineered for industrial compressors, blowers, vacuum pumps, and pneumatic conveying systems requiring high-capacity intake filtration and dependable noise reduction. Featuring a rugged carbon steel housing with ANSI flange connection and high-efficiency paper filter media, this inlet filter silencer helps protect industrial equipment from airborne contaminants while maintaining optimal airflow performance.
- Model: F-274P-500F
- Connection Size: 5" ANSI Flange
- Maximum Flow Rate: 850 SCFM
- Element Flow Rating: 1100 CFM
- Filter Rating: 2 Micron
- Filtration Efficiency: 99%+
- Filter Media: Paper
- Housing Material: Carbon Steel with Gray Powder Coat Finish
- Design: Flanged Inlet Filter Silencer
- Connection Style: ANSI Flanged Connection
- Outside Diameter: 16 Inches
- Overall Height: 14 Inches
- Approximate Weight: 25 lbs
- Operating Temperature Range: -15°F to 220°F
- Replacement Element: 274P™
- Filter Change Differential: 15-20" H?O over initial pressure drop
- Applications: Compressors, PD Blowers, Vacuum Pumps, Pneumatic Conveying Systems, Waste Water Aeration, Industrial Equipment
The low-pressure-drop outlet design helps maximize airflow efficiency while minimizing intake restriction and operating noise. The ANSI flanged connection provides secure installation in demanding industrial systems, while the removable weatherhood allows quick filter inspection and maintenance for long-lasting performance.
