Product Description

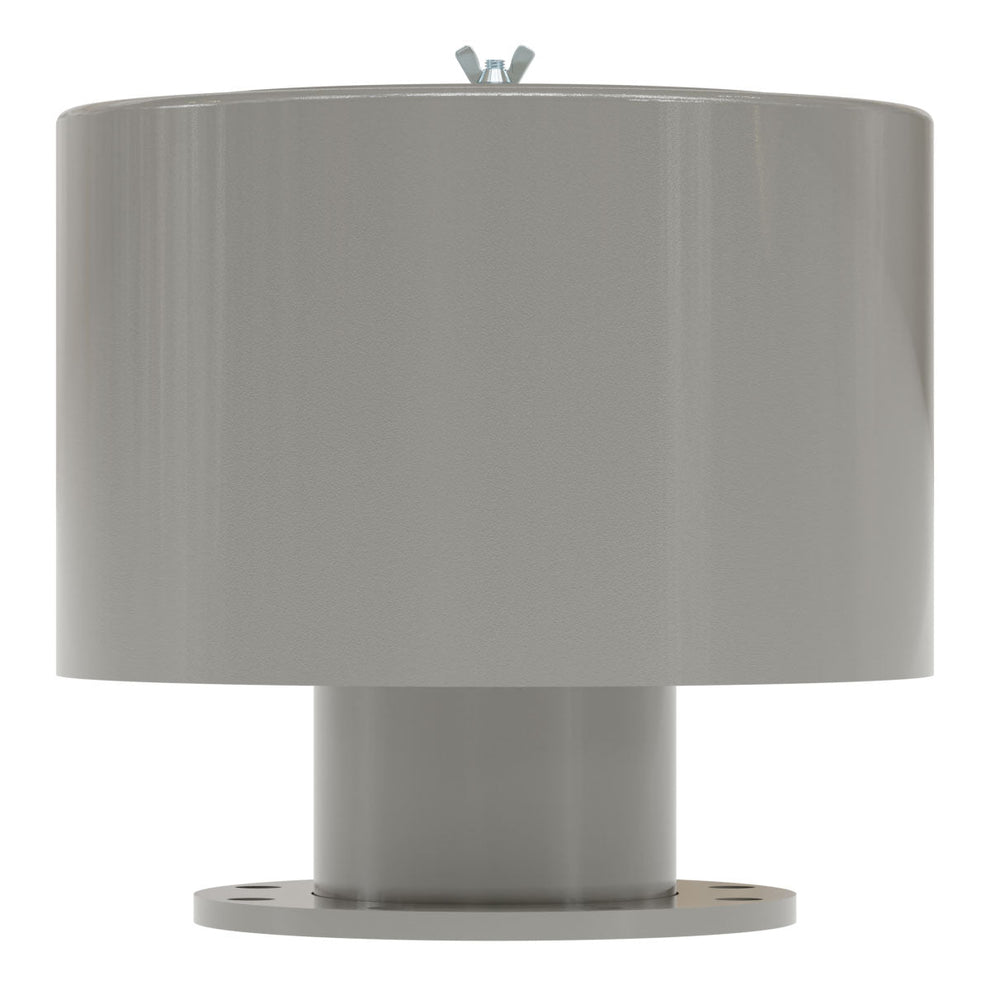

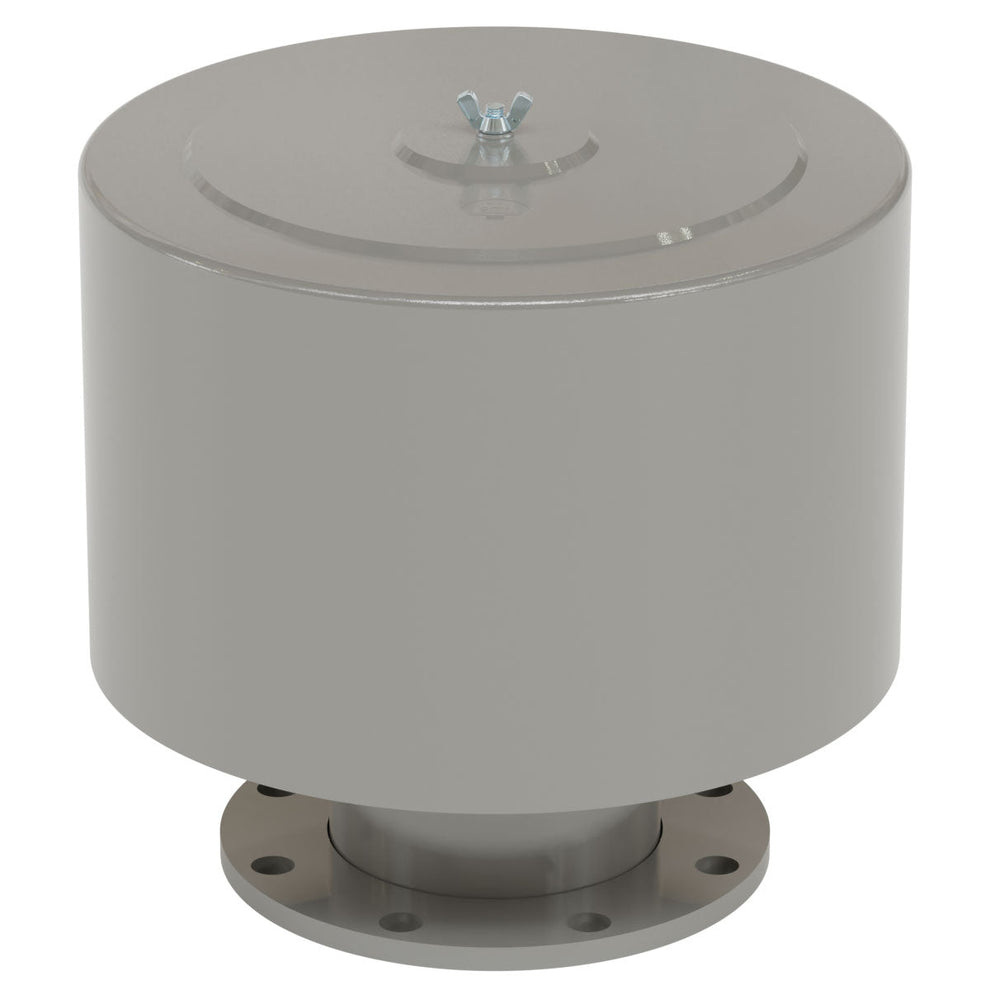

Solberg F-274P-600F Inlet Filter Silencer
The Solberg F-274P-600F Inlet Filter Silencer is a heavy-duty industrial air intake filtration and sound attenuation solution designed for blowers, compressors, vacuum systems, and pneumatic conveying applications. Featuring a durable ANSI flanged connection, integrated tubular silencing technology, and a high-efficiency polyester filter element, this rugged assembly provides effective intake noise reduction while protecting critical equipment from airborne contaminants in harsh industrial environments.
Key Features
- High-efficiency polyester filter media with 99%+ filtration efficiency at 5 microns
- Integrated tubular silencing technology helps reduce intake sound levels
- ANSI flanged connection allows secure industrial installation
- Heavy-duty carbon steel housing with corrosion-resistant gray powder coat finish
- Low pressure drop airflow design improves operating efficiency
- Reusable polyester filter element supports extended service life
- Weather-resistant construction suitable for indoor and outdoor industrial use
- Designed for high-flow blower and compressor intake systems
Specifications
- Model: F-274P-600F
- Series: F Series
- Connection Size: 6 Inch ANSI Flange
- Connection Type: Flanged Connection
- Maximum Flow Capacity: 600 SCFM
- Filter Media: Polyester Element
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%+
- Housing Material: Carbon Steel
- Finish: Corrosion-Resistant Gray Powder Coat
- Outside Diameter: 13 Inches
- Overall Height: 17 Inches
- Operating Temperature Range: -15°F to 220°F (-26°C to 104°C)
- Recommended Filter Change-Out: 15-20 in. H2O above initial pressure drop
- Replacement Element: 274P™
Applications
- Positive Displacement Blowers
- Regenerative Blowers
- Vacuum Pumps
- Pneumatic Conveying Systems
- Industrial Dust Collection Systems
- Waste Water Aeration Systems
- Industrial Fans and Exhaust Systems
- Ash Handling Systems
- Bulk Material Transfer Systems
- General Industrial Air Intake Applications
Benefits
- Protects critical equipment from airborne contaminants and particulate matter
- Helps reduce intake noise for quieter industrial operation
- Flanged connection supports stable and secure installation
- Low restriction airflow improves system efficiency and performance
- Heavy-duty steel construction ensures long operational life
- Reusable polyester media reduces maintenance and replacement costs
- Weather-resistant design supports demanding industrial environments
The Solberg F-274P-600F combines high-efficiency intake filtration, advanced sound attenuation, and rugged industrial durability into a reliable filter silencer assembly for demanding blower, compressor, and vacuum system applications.
