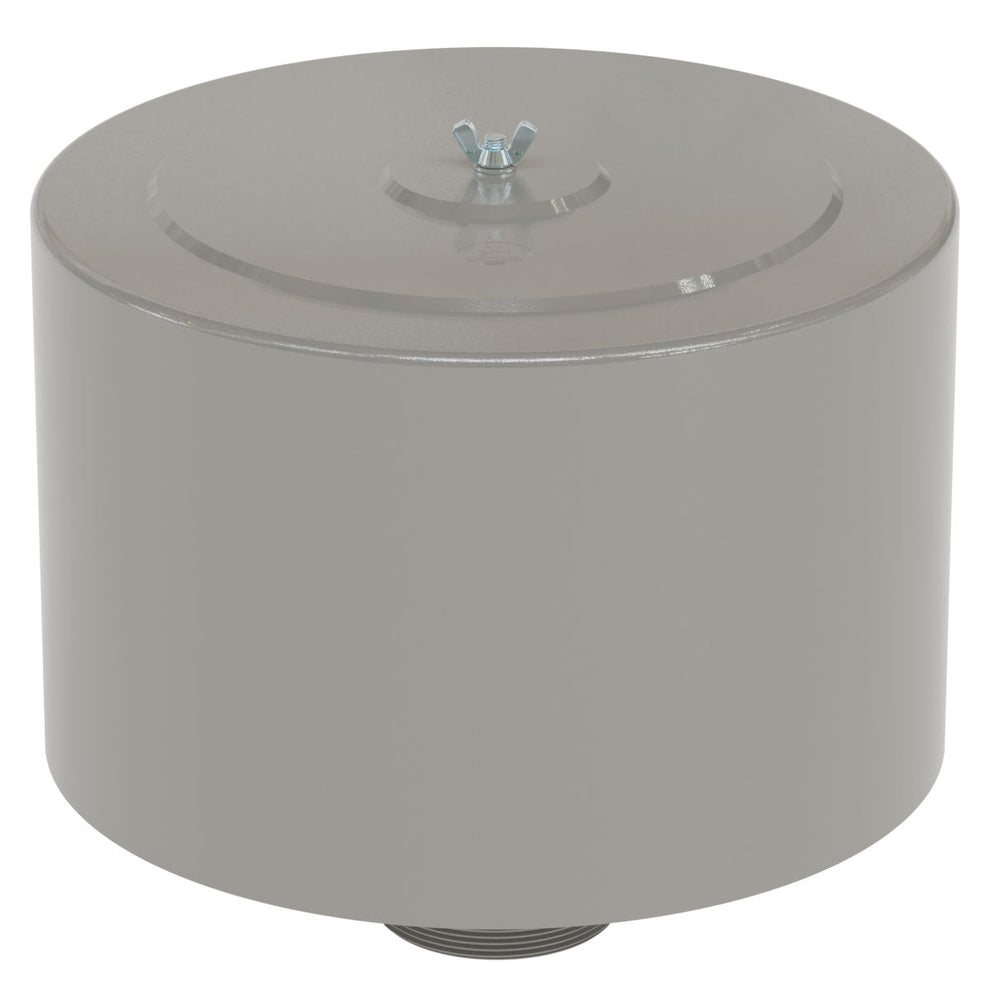

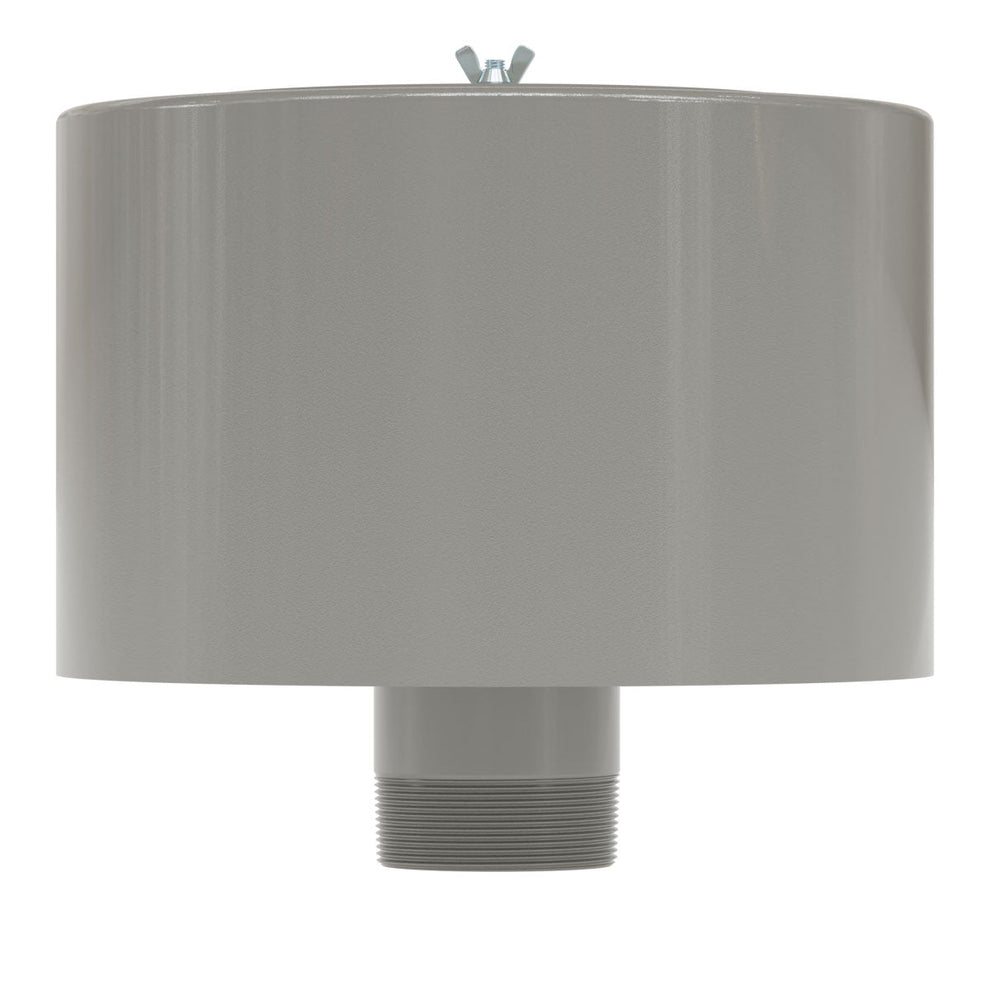

Solberg F-275P-500 Inlet Filter Silencer, 5" MNPT, 800 CFM, 5 Micron Polyester Element

Product Description

The Solberg F-275P-500 Inlet Filter Silencer is designed for heavy-duty industrial compressors, blowers, pneumatic conveying systems, and vacuum applications requiring high-capacity intake filtration and superior noise reduction. Constructed with a durable carbon steel housing and fully drawn weatherhood, this unit provides reliable protection and long service life in demanding industrial environments.

• Model: F-275P-500
• Connection Size: 5" MNPT
• Maximum Flow Rate: 800 CFM
• Filter Rating: 5 Micron
• Filtration Efficiency: 99%+
• Filter Media: Polyester
• Housing Material: Carbon Steel with Powder Coat Finish
• Design: Weatherhood Inlet Filter Silencer
• Connection Style: Screw-On / Threaded
• Overall Height: 14 Inches
• Outside Diameter: 16 Inches
• Element Flow Rating: 1100 CFM
• Weight: Approx. 27 lbs
• Operating Temperature Range: -15°F to 220°F
• Noise Reduction: Up to 15 dBA attenuation
• Applications: Compressors, PD Blowers, Side Channel Blowers, Pneumatic Conveying Systems, Waste Water Aeration, Industrial Equipment

The low-pressure-drop design helps maintain efficient airflow while reducing intake noise and protecting equipment from airborne contaminants. The removable weatherhood allows easy access for filter inspection and maintenance, making it ideal for severe-duty industrial applications.
