Product Description

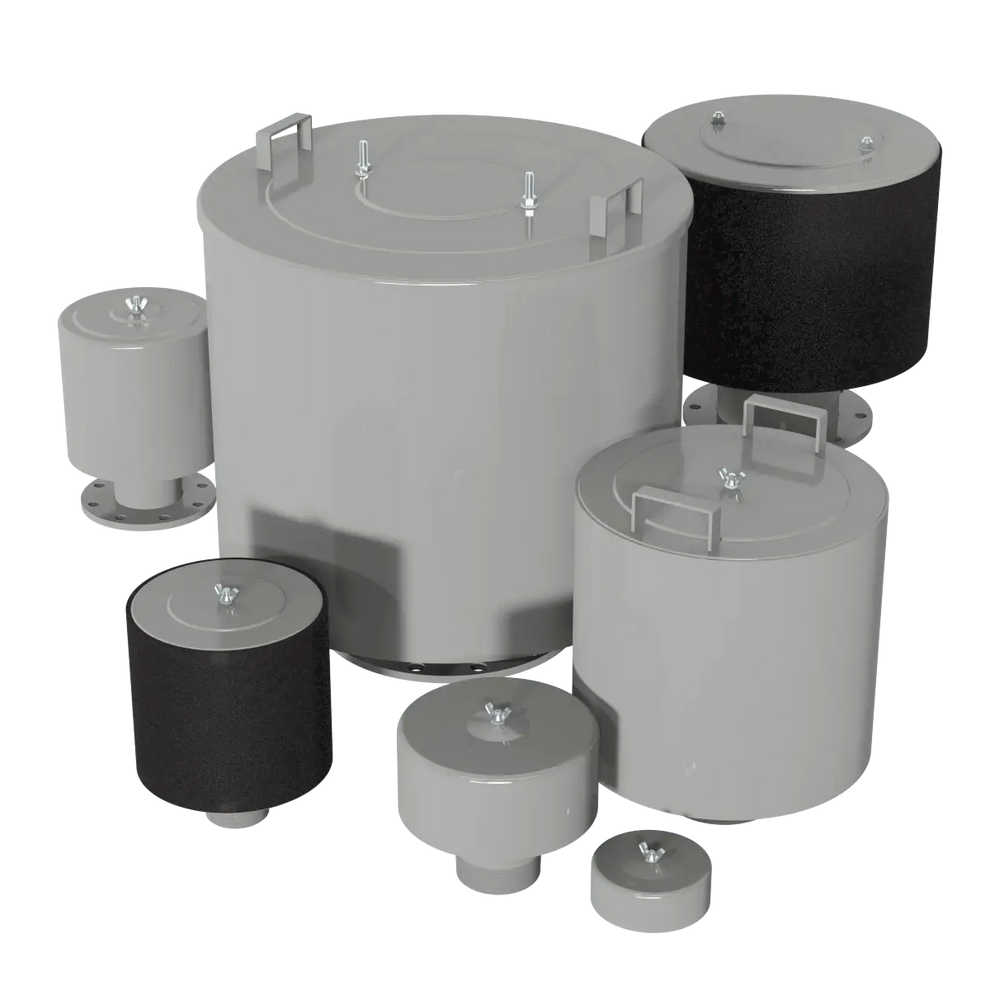

Solberg F-275P-500F Inlet Filter Silencer
The Solberg F-275P-500F Inlet Filter Silencer is a heavy-duty industrial air intake filtration and sound attenuation solution engineered for blowers, compressors, vacuum systems, and pneumatic conveying applications. Designed with a durable flanged connection, integrated tubular silencing technology, and a high-efficiency polyester filter element, this rugged assembly delivers reliable intake noise reduction while protecting critical equipment from airborne contaminants in demanding industrial environments.
Key Features
- High-efficiency polyester filter media with 99%+ filtration efficiency at 5 microns
- Integrated tubular silencing system reduces intake noise while maintaining optimized airflow
- ANSI flanged connection design supports secure industrial installation
- Heavy-duty carbon steel construction with corrosion-resistant powder coat finish
- Low restriction airflow design improves blower and compressor efficiency
- Fully serviceable reusable polyester filter element
- Weather-resistant construction suitable for harsh industrial environments
- Designed for high-flow industrial intake applications
Specifications
- Model: F-275P-500F
- Series: F Series
- Connection Size: 5 Inch ANSI Flange
- Connection Type: Flanged Connection
- Maximum Flow Capacity: 500 SCFM
- Filter Media: Polyester Element
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%+
- Housing Material: Carbon Steel
- Finish: Corrosion-Resistant Gray Powder Coat
- Outside Diameter: 13 Inches
- Overall Height: 16 Inches
- Operating Temperature Range: -15°F to 220°F (-26°C to 104°C)
- Recommended Filter Change-Out: 15-20 in. H2O above initial pressure drop
- Replacement Element: 275P™
Applications
- Positive Displacement Blowers
- Regenerative Blowers
- Vacuum Pumps
- Pneumatic Conveying Systems
- Industrial Dust Collection Systems
- Waste Water Aeration Systems
- Industrial Fans and Exhaust Systems
- Ash Handling Systems
- Bulk Material Transfer Systems
- General Industrial Air Intake Applications
Benefits
- Protects critical equipment from airborne contaminants and debris
- Reduces intake noise for quieter industrial operation
- Flanged connection allows secure and reliable installation
- Low restriction airflow improves system efficiency and performance
- Heavy-duty steel construction ensures long service life
- Reusable polyester media reduces maintenance and replacement costs
- Weather-resistant construction supports severe-duty environments
The Solberg F-275P-500F combines efficient intake filtration, advanced sound attenuation, and rugged industrial durability into a high-performance filter silencer assembly ideal for demanding blower, compressor, and vacuum system applications.
