Solberg F-30P-250 Inlet Filter Silencer, 2-1/2" MNPT, 195 SCFM, 2 Micron Paper Element

Product Description

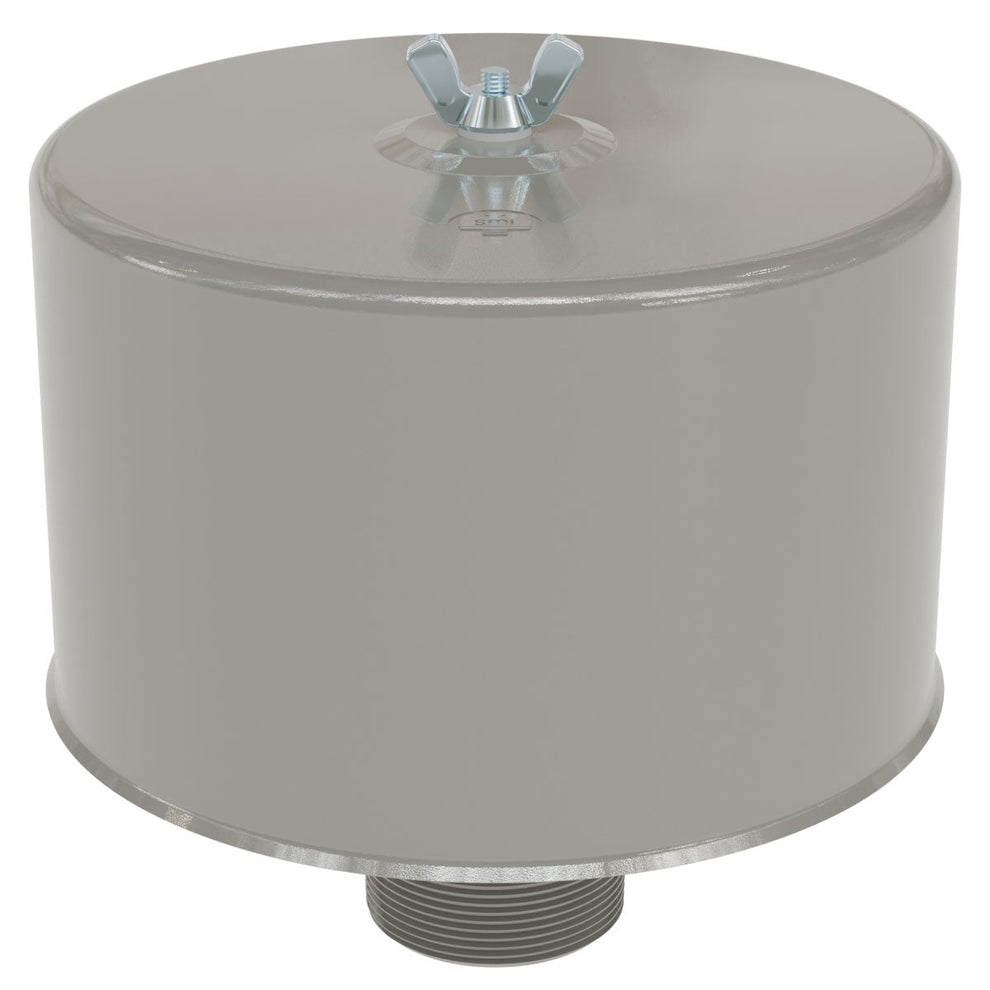

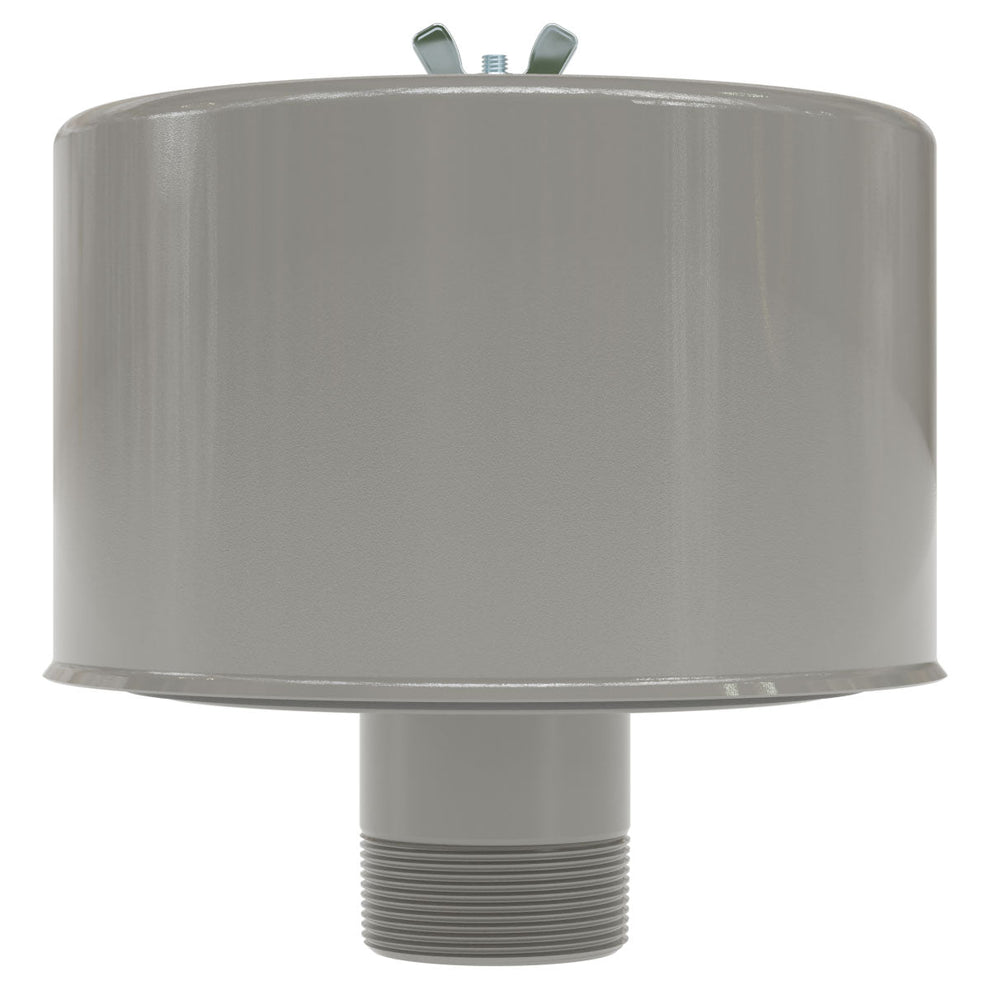

The Solberg F-30P-250 Inlet Filter Silencer is designed for compressors, blowers, vacuum pumps, and pneumatic conveying systems requiring reliable intake filtration and effective noise reduction. Featuring a rugged carbon steel housing with a fully drawn weatherhood and high-efficiency paper filter media, this inlet filter silencer helps protect equipment from airborne contaminants while maintaining optimal airflow performance.

• Model: F-30P-250
• Connection Size: 2-1/2" MNPT
• Maximum Flow Rate: 195 SCFM
• Element Flow Rating: 200 CFM
• Filter Rating: 2 Micron
• Filtration Efficiency: 99%+
• Filter Media: Paper
• Housing Material: Carbon Steel with Gray Powder Coat Finish
• Design: Weatherhood Inlet Filter Silencer
• Connection Style: Threaded / Screw-On
• Outside Diameter: 7.75 Inches
• Overall Height: 7.5 Inches
• Approximate Weight: 5 lbs
• Operating Temperature Range: -15°F to 220°F
• Replacement Element: 30P™
• Filter Change Differential: 15-20" H?O over initial pressure drop
• Applications: Compressors, PD Blowers, Side Channel Blowers, Vacuum Pumps, Pneumatic Conveying Systems, Industrial Equipment

The low-pressure-drop outlet design helps maximize airflow efficiency while reducing intake noise and extending equipment service life. The removable weatherhood allows quick access for filter inspection and replacement, making this unit ideal for industrial and severe-duty applications.
