Product Description

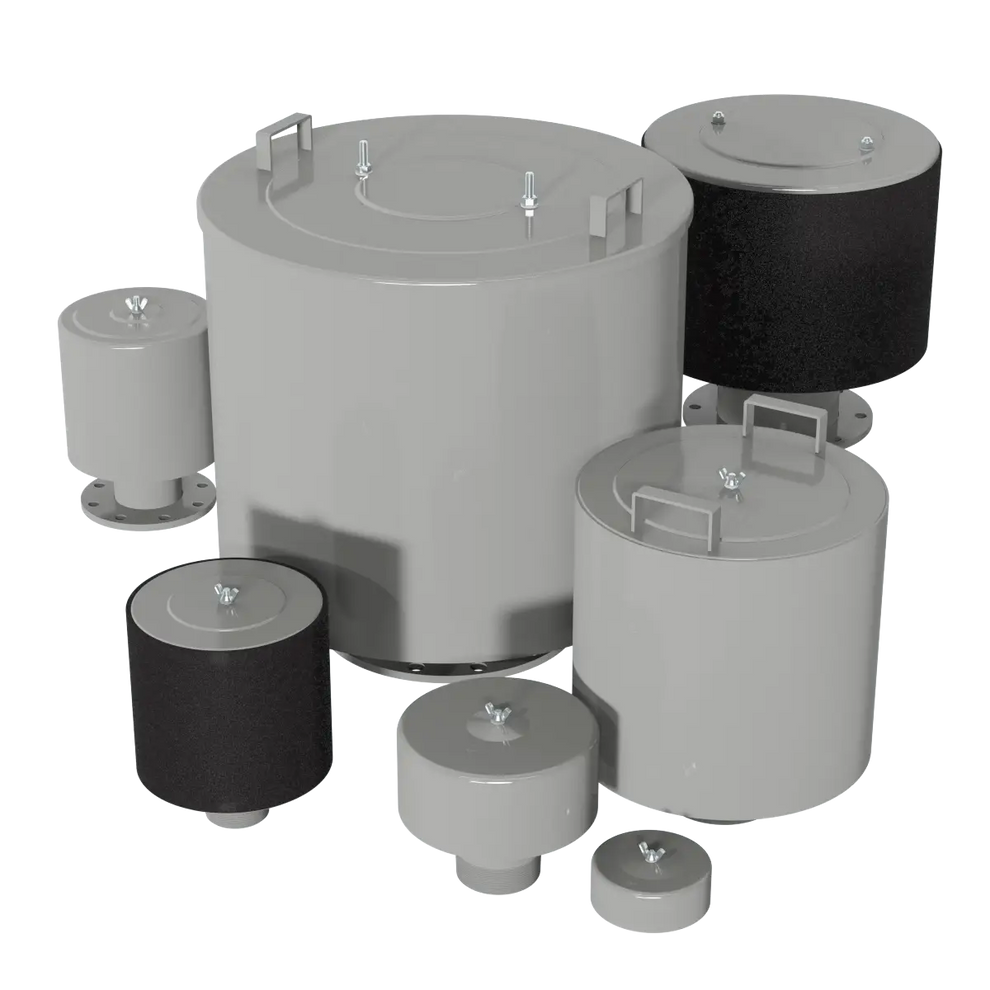

Solberg F-384P(2)-1200F Inlet Filter Silencer
The Solberg F-384P(2)-1200F is a high-capacity industrial inlet filter silencer engineered for blowers, compressors, vacuum systems, and pneumatic conveying applications requiring superior airflow, intake noise reduction, and high-efficiency filtration. Featuring a dual paper element configuration and rugged carbon steel construction, this heavy-duty unit delivers reliable performance in severe industrial environments.
Key Features
- 12" ANSI flanged connection for large industrial airflow systems
- Dual paper filter element design for increased airflow capacity and extended service life
- 99%+ filtration efficiency at 2 microns for superior contaminant removal
- Integrated weatherhood protects against environmental contaminants and debris
- Tubular silencing technology reduces intake noise while minimizing pressure drop
- Heavy-gauge carbon steel housing with corrosion-resistant gray powder coat finish
- Low pressure drop outlet pipe and center bracket configuration for optimized airflow
- Designed for airflow capacities up to 4,700 SCFM
- Continuous operating temperature range from -15°F to 220°F (-26°C to 104°C)
Applications
- Positive displacement blowers
- Centrifugal blowers
- Regenerative and side channel blowers
- Industrial vacuum systems
- Screw compressors
- Piston compressors
- Pneumatic conveying systems
- Wastewater aeration equipment
- Ash handling systems
- Industrial workshops and manufacturing facilities
Specifications
- Model: F-384P(2)-1200F
- Series: F Series
- Connection Size: 12 Inch ANSI Flange
- Filter Media: Dual Paper Elements
- Micron Rating: 2 Micron
- Filtration Efficiency: 99%+
- Maximum Flow Rate: 4,700 SCFM
- Housing Material: Carbon Steel
- Outside Diameter: 28.5 Inches
- Overall Height: 38 Inches
- Operating Temperature: -15°F to 220°F
- Finish: Gray Powder Coat
- Replacement Element: 384P
Benefits
- Provides high airflow capacity with reduced intake restriction
- Helps extend blower and compressor life by preventing harmful contaminants from entering intake systems
- Dual-element design increases dirt-holding capacity and maintenance intervals
- Reduces operating noise for improved workplace conditions
- Built for harsh industrial and severe-duty operating environments
- Easy filter servicing and replacement access
The Solberg F Series inlet filter silencers combine advanced intake filtration and sound attenuation technology to protect industrial equipment while maintaining efficient airflow performance in demanding applications.
