Product Description

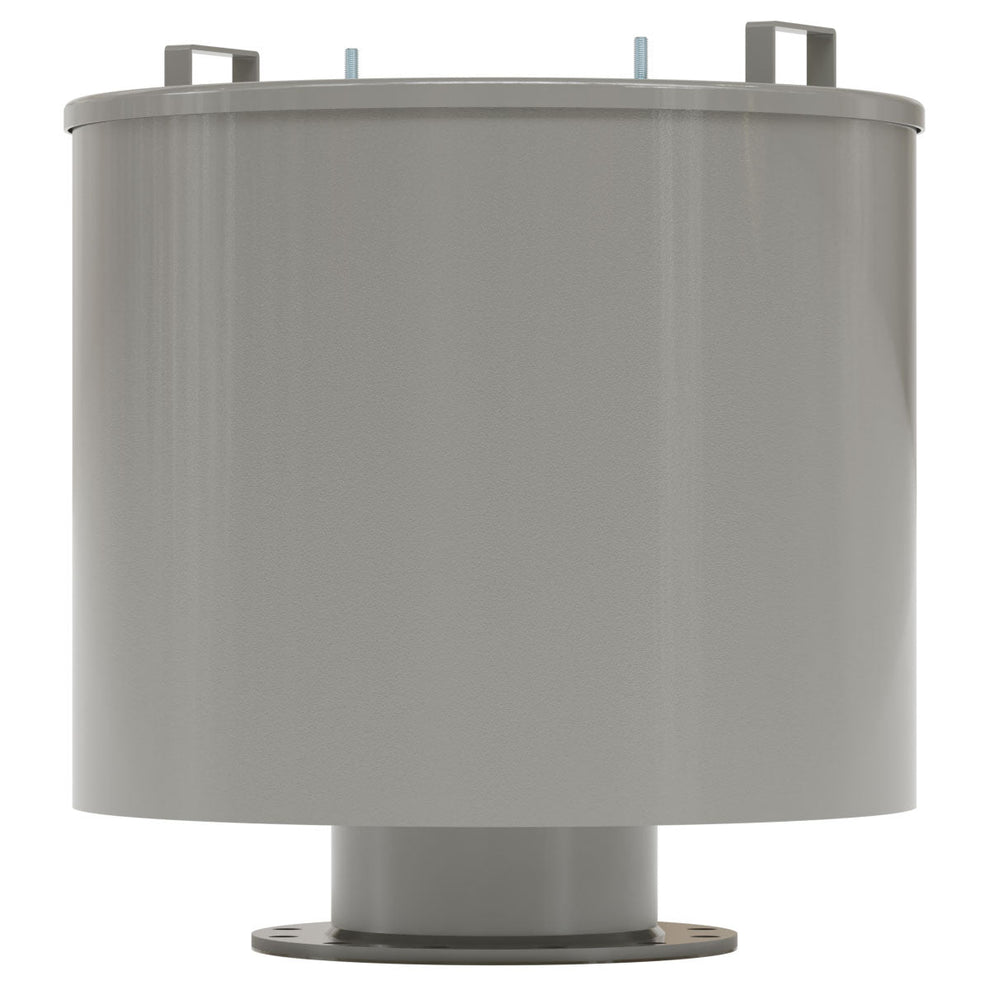

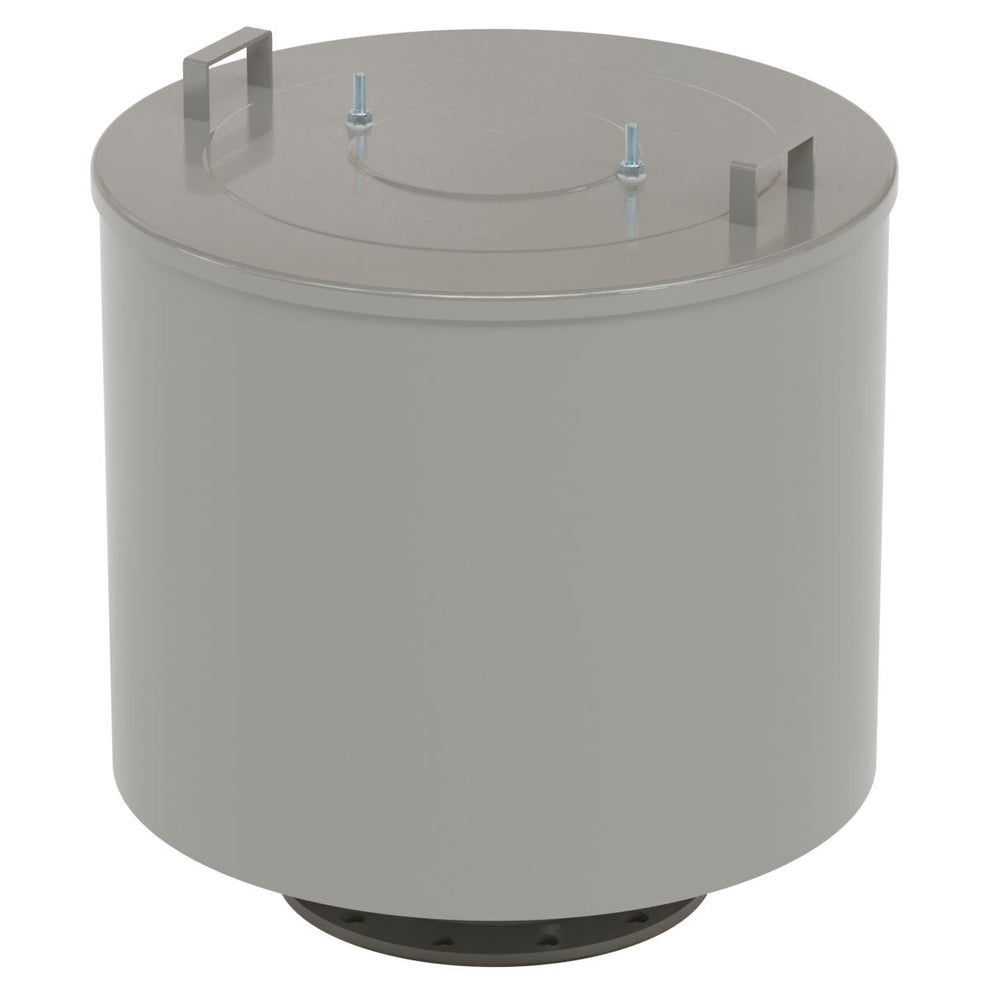

Solberg F-484P-1200F Inlet Filter Silencer
The Solberg F-484P-1200F is a heavy-duty inlet filter silencer engineered for industrial blowers, compressors, and pneumatic conveying systems requiring high airflow, efficient filtration, and reduced intake noise. Featuring a durable carbon steel housing with a weatherhood design, this filter silencer delivers reliable performance in severe-duty industrial environments.
Key Features
- 12" ANSI flanged connection for high-capacity industrial systems
- High-efficiency paper filter element with 99%+ filtration efficiency at 2 microns
- Integrated weatherhood protects against dirt, debris, and environmental contaminants
- Heavy-gauge carbon steel construction with corrosion-resistant gray powder coating
- Advanced silencing design helps reduce blower and compressor intake noise
- Low pressure drop outlet pipe and center bracket configuration for optimized airflow
- Designed for airflow capacities up to 4,700 SCFM
- Continuous operating temperature range from -15°F to 220°F (-26°C to 104°C)
Applications
- Positive displacement blowers
- Side channel blowers
- Screw compressors
- Piston compressors
- Pneumatic conveying systems
- Wastewater aeration systems
- Ash handling equipment
- Industrial workshops and manufacturing facilities
- Construction and contractor equipment
Specifications
- Model: F-484P-1200F
- Series: F Series
- Connection Size: 12 Inch ANSI Flange
- Filter Media: Paper Element
- Micron Rating: 2 Micron
- Filtration Efficiency: 99%+
- Maximum Flow Rate: 4,700 SCFM
- Housing Material: Carbon Steel
- Overall Height: 31 Inches
- Outside Diameter: 28.5 Inches
- Operating Temperature: -15°F to 220°F
- Replacement Element: 484P
- Finish: Gray Powder Coat
Benefits
- Helps extend equipment life by preventing contaminants from entering intake systems
- Reduces operating noise for improved workplace conditions
- Provides reliable performance in harsh industrial environments
- Supports high airflow applications with minimal restriction
- Easy maintenance and filter replacement
The Solberg F Series inlet filter silencers are designed to combine superior intake filtration with effective sound attenuation, making them ideal for industrial compressor and blower applications where equipment protection and operational efficiency are critical.
