Product Description

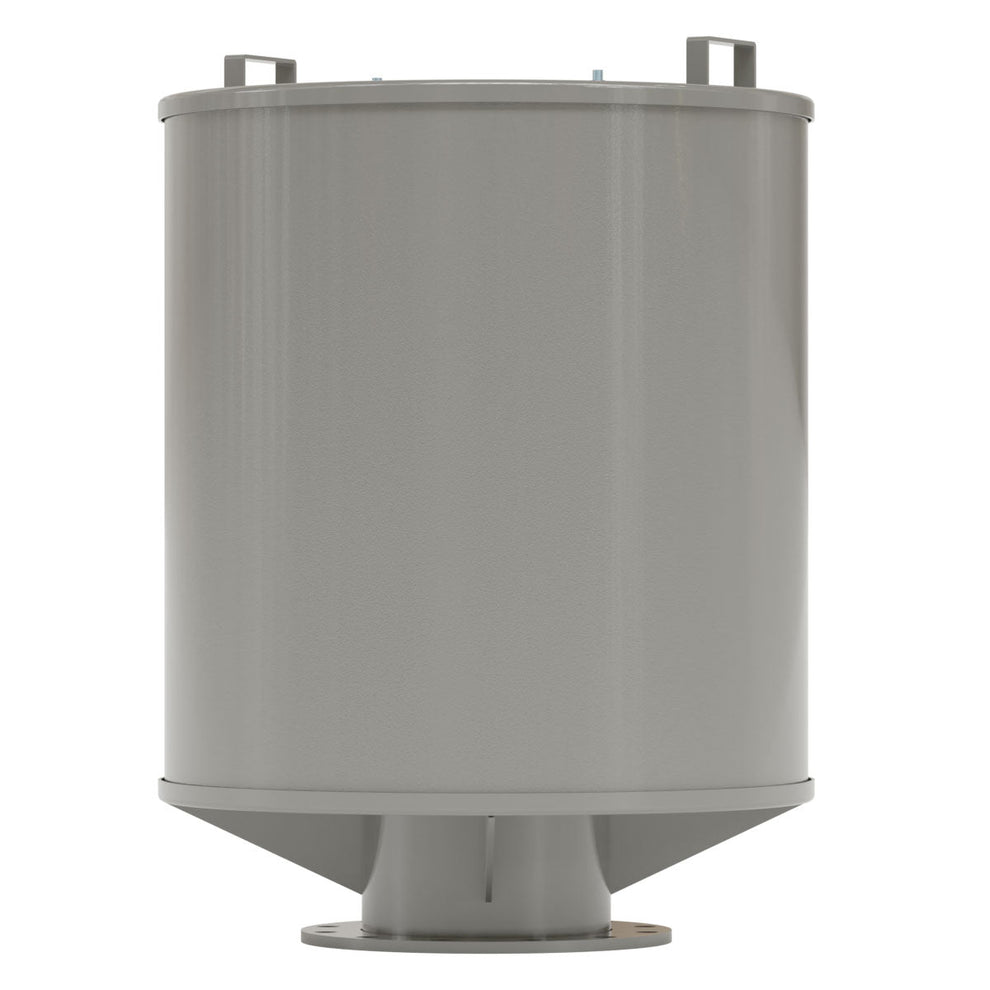

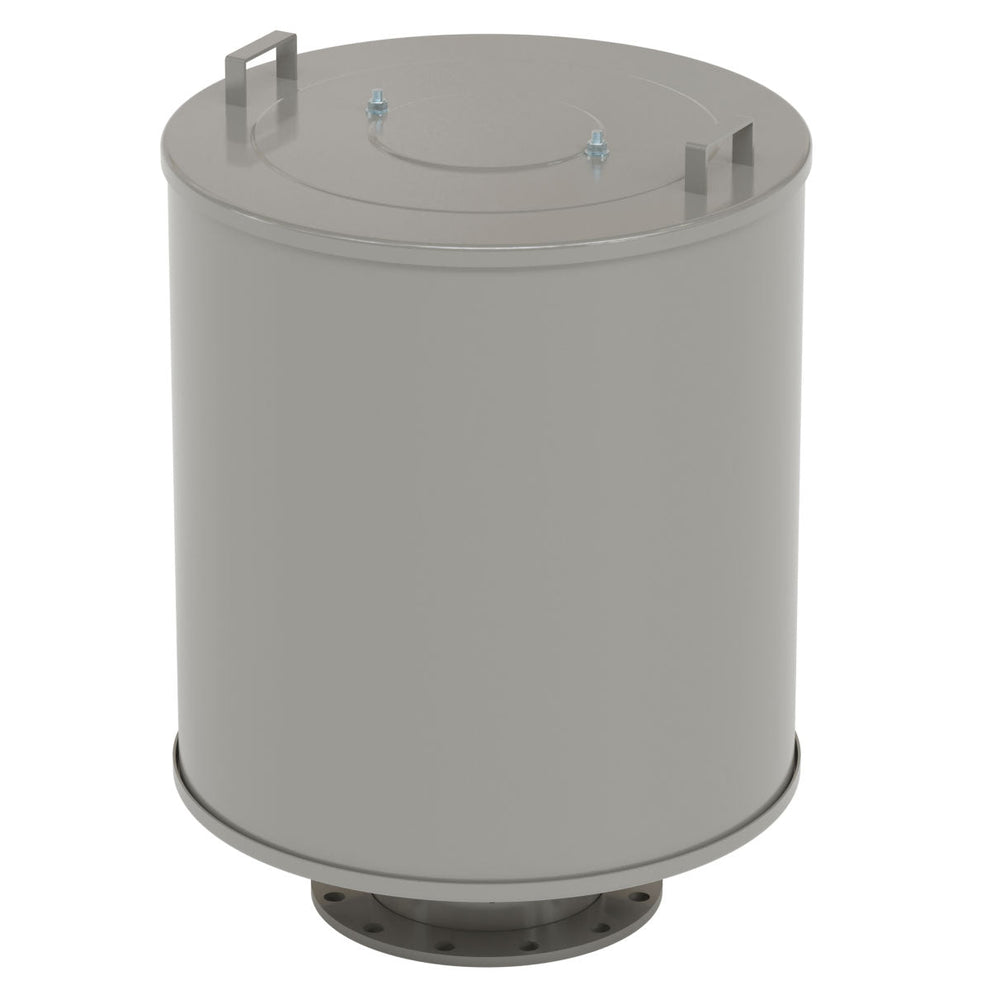

The Solberg F-685P-1200F Inlet Filter Silencer is engineered for ultra high-flow industrial compressors, positive displacement blowers, vacuum systems, and pneumatic conveying applications requiring maximum airflow capacity, superior intake filtration, and advanced sound attenuation. Featuring a rugged carbon steel housing with a fully drawn weatherhood and flanged connection design, this filter silencer delivers dependable performance in severe-duty industrial environments.
- Model: F-685P-1200F
- Connection Size: 12" Flange
- Maximum Flow Rate: 4700 CFM
- Element Flow Rating: 6600 CFM
- Filter Rating: 5 Micron
- Filtration Efficiency: 99%+
- Filter Media: Polyester
- Housing Material: Carbon Steel with Gray Powder Coat Finish
- Design: Weatherhood Inlet Filter Silencer
- Connection Style: Flanged
- Outside Diameter: 28.5 Inches
- Overall Height: 38 Inches
- Nipple Length: 6 Inches
- Noise Reduction: Typical attenuation of 5 to 15 dB
- Operating Temperature Range: -15°F to 220°F
- Applications: Compressors, PD Blowers, Side Channel Blowers, Pneumatic Conveying Systems, Waste Water Aeration, Ash Handling, Industrial Equipment
The low-pressure-drop outlet pipe and center support bracket design help maximize airflow efficiency while minimizing intake restriction and operating noise. The removable weatherhood allows quick access for filter inspection and replacement, making this unit ideal for demanding industrial and severe-duty applications.
