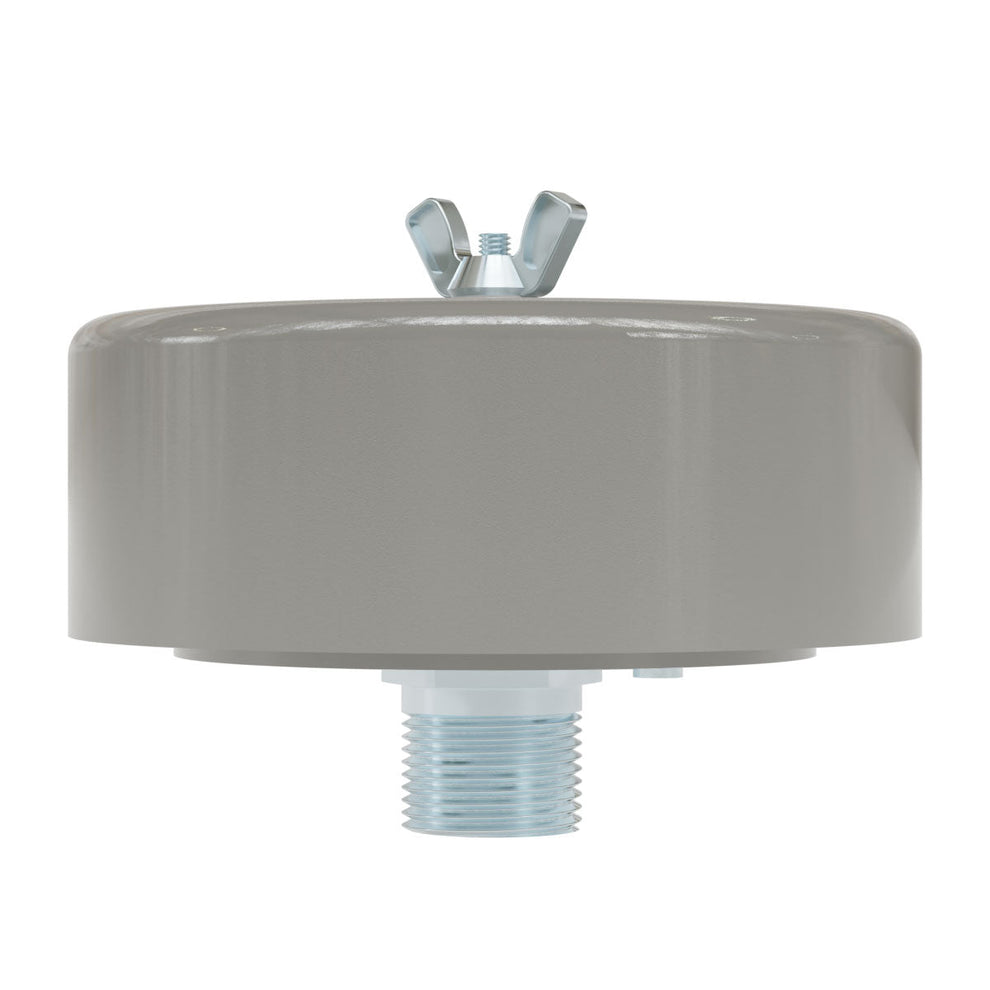

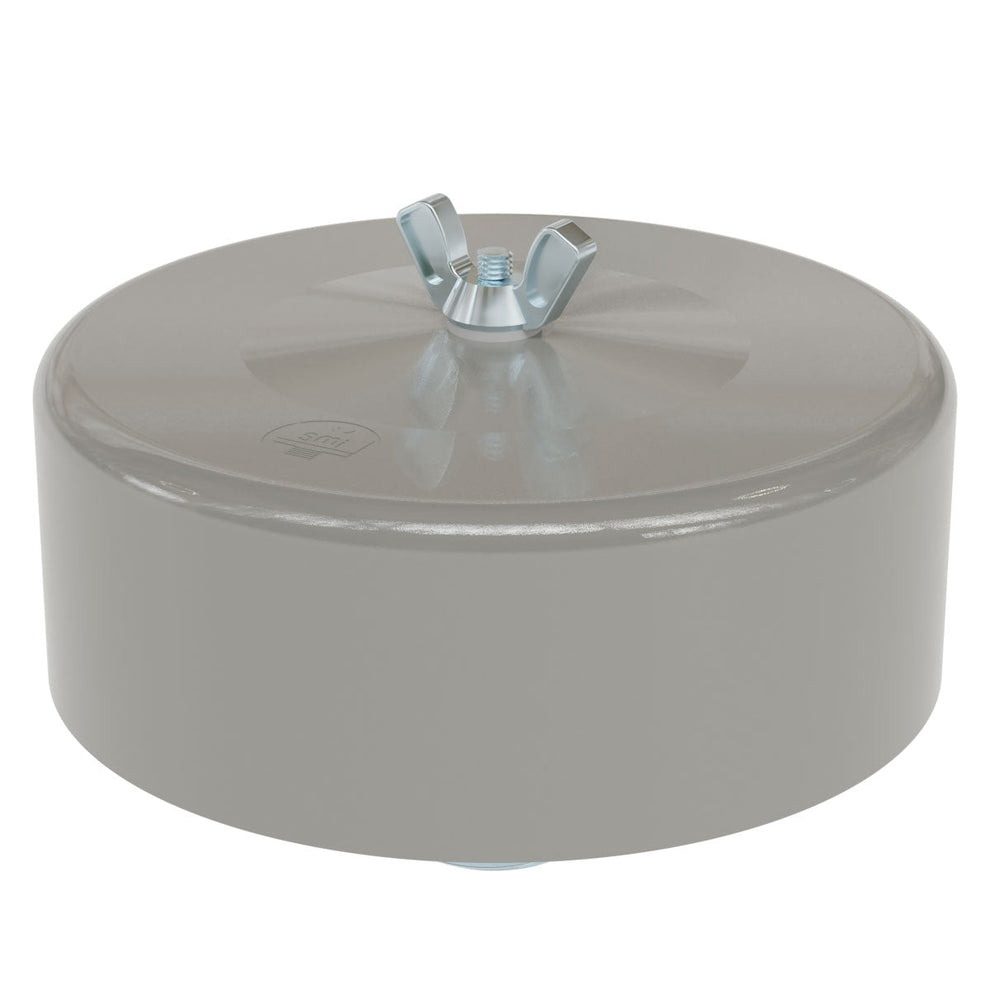

Solberg FS-15-100 Air Inlet Filter Silencer with Weatherhood – 1" NPT, 5 Micron Polyester, 35 SCFM

Product Description

High-Capacity Filtration with Advanced Noise Reduction & Weather Protection

The Solberg FS-15-100 Air Inlet Filter Silencer is designed for high-performance air filtration and intake noise reduction in compressors, blowers, and pneumatic systems. Featuring a fully integrated weatherhood and advanced tubular silencing technology, this unit ensures maximum airflow with minimal pressure drop, making it ideal for demanding industrial environments.

Key Features:

• High-efficiency polyester filter media with 99%+ filtration efficiency
• 5-micron filtration rating for fine particle removal
• Fully drawn weatherhood protects against dust, debris, and moisture
• Tubular silencing design maximizes noise reduction while maintaining airflow
• Durable carbon steel housing with corrosion-resistant powder coating
• Low pressure drop design improves system efficiency
• Supports vertical and horizontal mounting flexibility
• Integrated gasket seal ensures leak-free performance

Specifications:

• Model: FS-15-100
• Connection Size: 1" NPT (MPT)
• Flow Rate: Up to 35 SCFM
• Filter Media: Polyester
• Micron Rating: 5 µm
• Efficiency: 99%+
• Material: Carbon Steel
• Finish: Black/Grey Powder-Coated
• Operating Temperature: -15°F to 220°F
• Dimensions: Approx. 4" Height x 6" Diameter

Applications:

• Air compressors
• Vacuum pumps
• Blowers and fans
• Pneumatic conveying systems
• Hydraulic breathers
• Wastewater aeration systems
• Industrial workshops and manufacturing units

This filter silencer offers high airflow capacity, fine filtration, and effective noise attenuation, making it ideal for extending equipment life and maintaining efficient operation in heavy-duty industrial environments.
