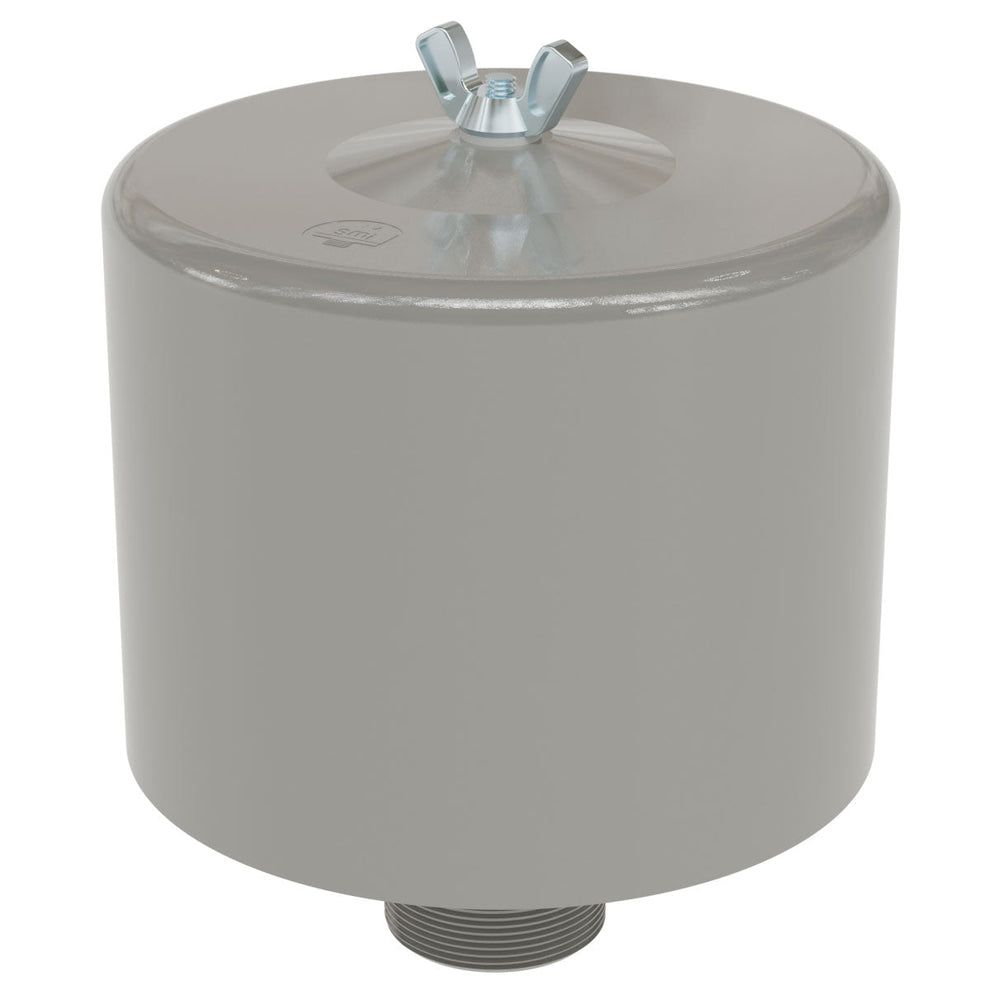

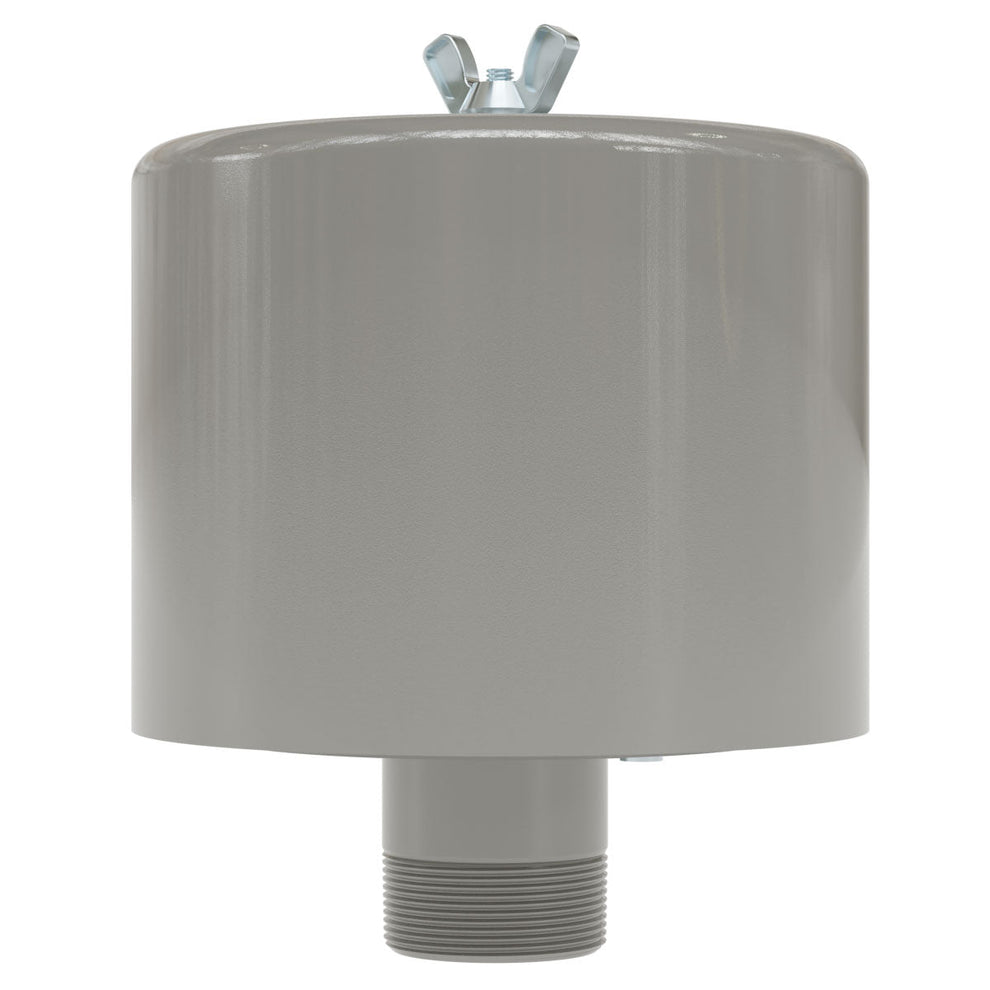

Solberg FS-19P-125 Air Inlet Filter Silencer with Weatherhood – 1-1/4" NPT, 5 Micron Polyester, 70 SCFM

Product Description

High-Flow Industrial Filtration with Advanced Noise Reduction & Weather Protection

The Solberg FS-19P-125 Air Inlet Filter Silencer is engineered for high-capacity airflow applications, delivering superior air filtration and intake noise reduction. Featuring a fully integrated weatherhood and advanced tubular silencing design, this unit ensures maximum airflow with minimal pressure drop, making it ideal for demanding industrial environments.

Key Features:

• High-efficiency polyester filter media with 99%+ filtration efficiency
• 5-micron filtration rating for fine particle removal
• Fully drawn weatherhood protects against dust, debris, and moisture
• Tubular silencing design maximizes noise attenuation while maintaining airflow
• Low pressure drop design improves system efficiency
• Durable carbon steel housing with corrosion-resistant powder coating
• Integrated gasket seal ensures leak-free performance
• Replaceable filter element for extended service life

Specifications:

• Model: FS-19P-125
• Connection Size: 1-1/4" NPT (MPT)
• Flow Rate: Up to 70 SCFM
• Filter Media: Polyester
• Micron Rating: 5 µm
• Efficiency: 99%+
• Material: Carbon Steel
• Finish: Corrosion-Resistant Powder-Coated (Gray/Black)
• Operating Temperature: -15°F to 220°F
• Dimensions: Approx. 6.1" Diameter x 6.6" Height
• Weight: Approx. 3.3 lbs
• Noise Reduction: Up to ~15 dB

Applications:

• Air compressors (piston & screw)
• Vacuum pumps
• Blowers and fans
• Pneumatic conveying systems
• Hydraulic breathers
• Wastewater aeration systems
• Heavy-duty industrial environments

This filter silencer provides high airflow capacity, fine filtration, and effective noise attenuation, making it ideal for extending equipment life and maintaining efficient operation in high-demand industrial systems.
