Product Description

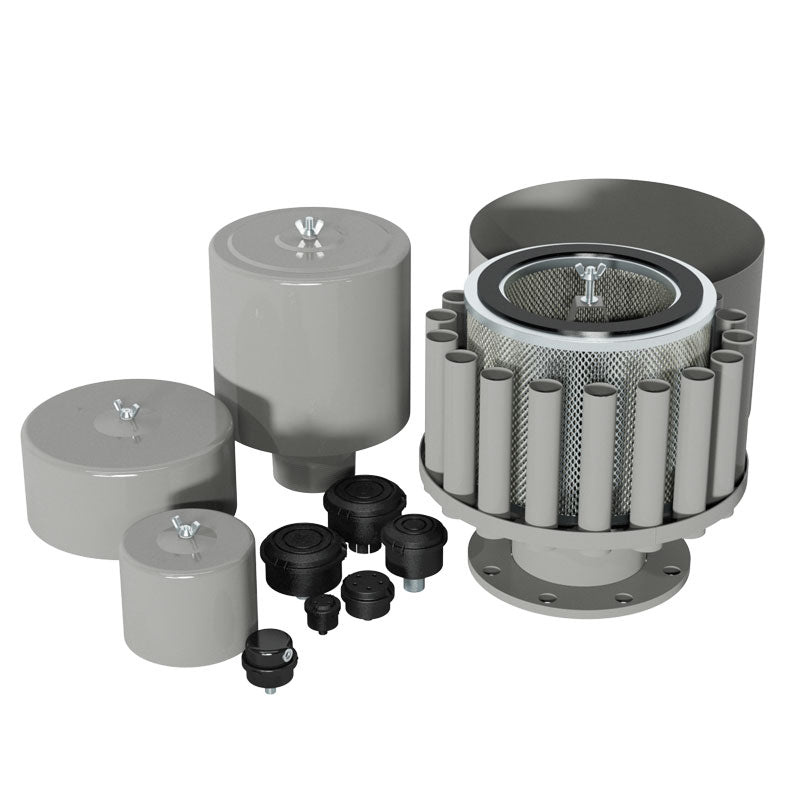

Solberg FS-234P-400F Inlet Filter Silencer
The Solberg FS-234P-400F Filter Silencer is a compact and durable industrial inlet filtration solution engineered for blowers, compressors, fans, and pneumatic conveying systems. Featuring advanced tubular silencing technology and a high-efficiency paper filter element, this unit helps protect equipment from airborne contaminants while reducing operational intake noise in demanding industrial environments.
Key Features
- High-efficiency paper filter media with 99%+ removal efficiency at 2 microns
- Integrated tubular silencing design reduces intake noise while maintaining optimal airflow
- Fully drawn weatherhood protects the filter element from rain, debris, and outdoor contaminants
- Heavy-duty carbon steel housing with corrosion-resistant gray powder-coated finish
- Low pressure drop design improves airflow performance and system efficiency
- Designed for continuous-duty industrial blower and compressor applications
- Removable cover allows quick and easy filter servicing
- Suitable for both indoor and outdoor installations
Specifications
- Model: FS-234P-400F
- Series: FS Series
- Connection Size: 4 Inch
- Connection Type: ANSI Flange Pattern
- Filter Media: Paper Element
- Micron Rating: 2 Micron
- Filtration Efficiency: 99%+
- Maximum Flow Capacity: 300 SCFM
- Housing Material: Carbon Steel
- Finish: Gray Powder Coat
- Dimensions: 14 Inch Height x 16 Inch Diameter
- Weight: Approximately 20 lbs
- Replacement Element: 234P
- Operating Temperature Range: -15°F to 220°F (-26°C to 104°C)
Applications
- Industrial Blowers
- Rotary Screw Compressors
- Piston Compressors
- Pneumatic Conveying Systems
- Waste Water Aeration
- Hydraulic Breathers
- Workshop Equipment
- Dock Controls
- Envelope Manufacturing
- Industrial & Severe Duty Applications
Benefits
- Protects critical equipment from harmful airborne contaminants
- Reduces operational noise for quieter work environments
- Improves airflow efficiency with low restriction silencing technology
- Weather-protected construction enhances durability in harsh environments
- Easy maintenance design minimizes downtime and servicing costs
The Solberg FS-234P-400F combines efficient air filtration, intake noise reduction, and rugged industrial durability into one compact assembly, making it an ideal solution for blower and compressor intake applications.
