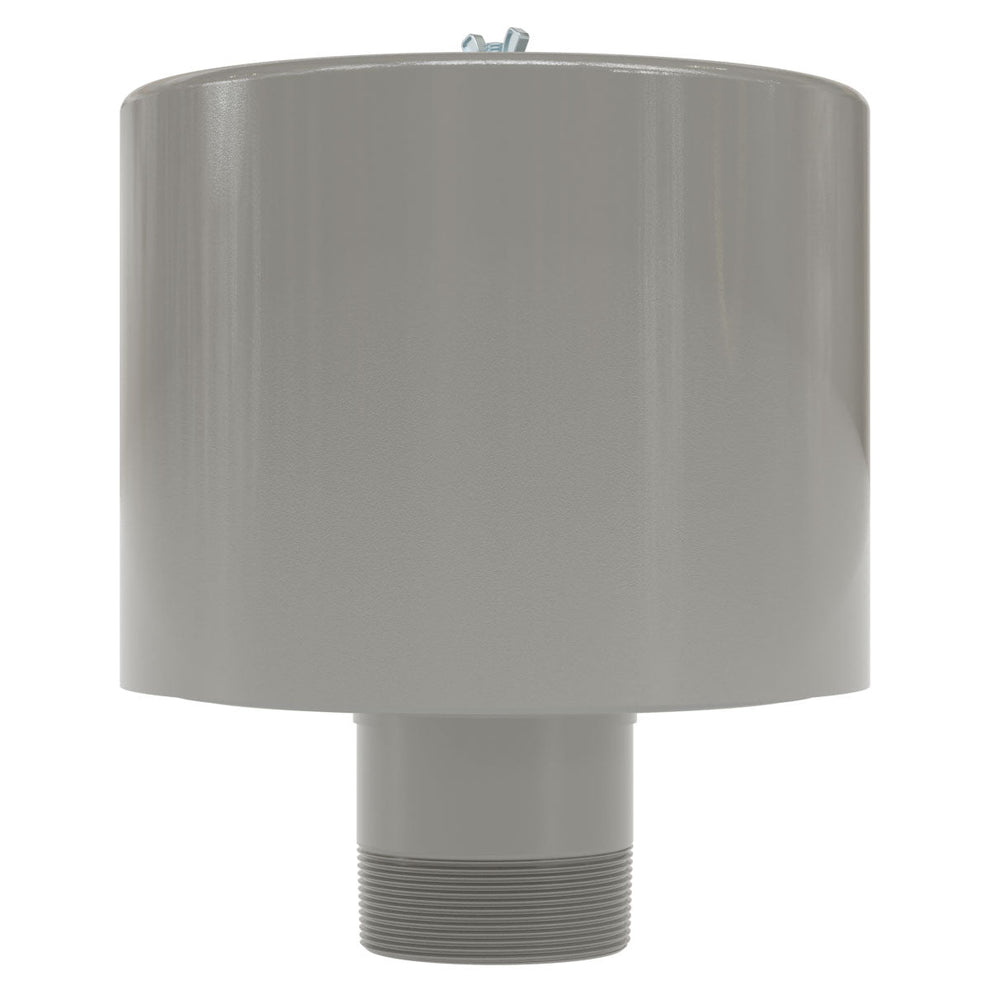

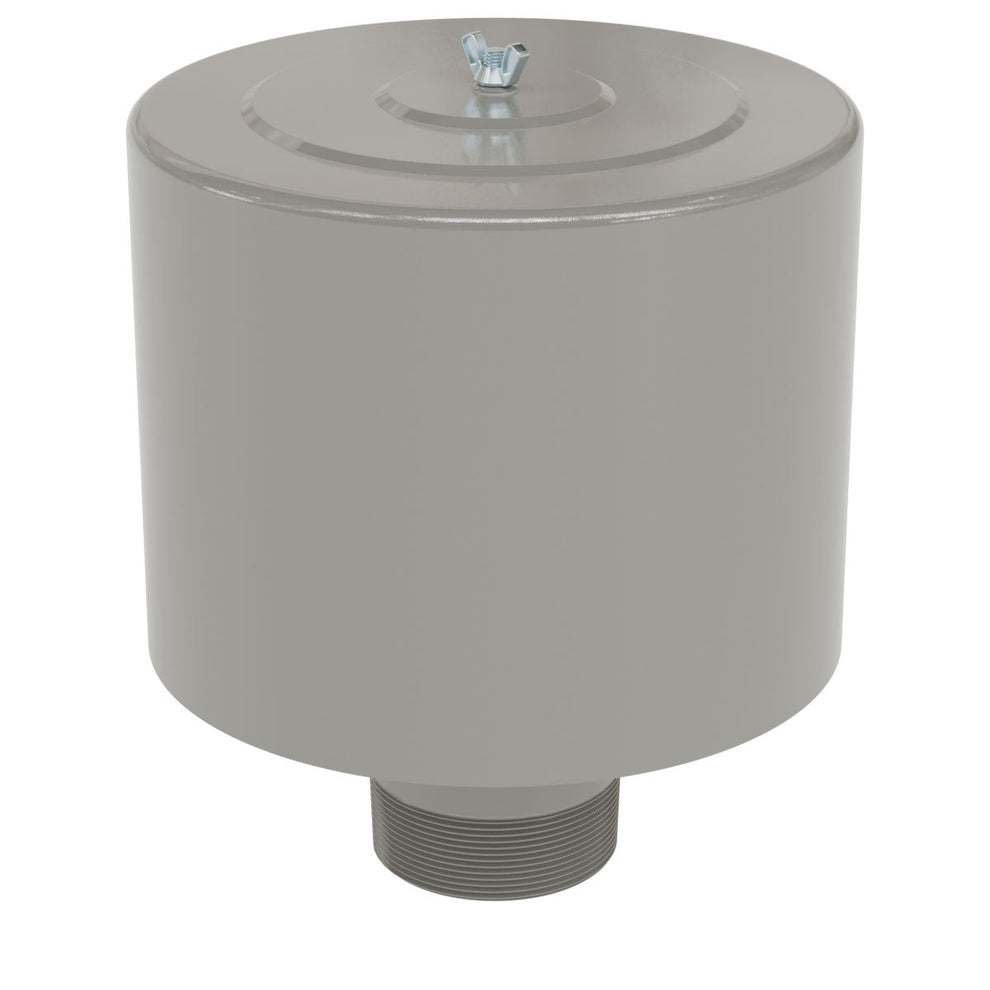

Solberg FS-244P-500 Inlet Filter Silencer with Weatherhood, 5" MPT Connection, Paper Filter Element, 800 SCFM, 2 Micron

Product Description

Solberg FS-244P-500 Inlet Filter Silencer

The Solberg FS-244P-500 Filter Silencer is a compact and durable industrial inlet filtration solution designed for blowers, compressors, vacuum pumps, and pneumatic conveying systems. Built with advanced silencing technology and a high-efficiency paper filter element, this unit delivers reliable airflow protection while reducing operational noise.

Key Features

• High-efficiency paper filter media with 99%+ removal efficiency at 2 microns
• Integrated silencing design helps reduce operational noise up to 15 dB
• Heavy-duty carbon steel construction with corrosion-resistant powder-coated finish
• Fully drawn weatherhood protects the filter element in outdoor environments
• Low pressure drop tubular silencing design improves airflow efficiency
• Designed for blowers, compressors, vacuum systems, and industrial air applications
• Removable weatherhood allows easy filter maintenance and replacement
• Continuous operating temperature range from -15°F to 220°F (-26°C to 104°C)

Specifications

• Model: FS-244P-500
• Series: FS Series
• Connection Size: 5 Inch
• Connection Type: MPT / MNPT
• Filter Media: Paper
• Micron Rating: 2 Micron
• Flow Capacity: 800 SCFM
• Element Flow Rating: 880 CFM
• Material: Carbon Steel
• Finish: Gray Powder-Coated
• Dimensions: 14 in Height x 16 in Width
• Approximate Weight: 33 lbs

Applications

• Industrial Blowers
• Rotary Screw Compressors
• Vacuum Pumps
• Pneumatic Conveying Systems
• Waste Water Aeration
• Hydraulic Breathers
• Workshop & Severe Duty Industrial Environments

The FS-244P-500 combines efficient air filtration, weather protection, and sound attenuation into one rugged assembly, making it an ideal solution for demanding industrial applications.
