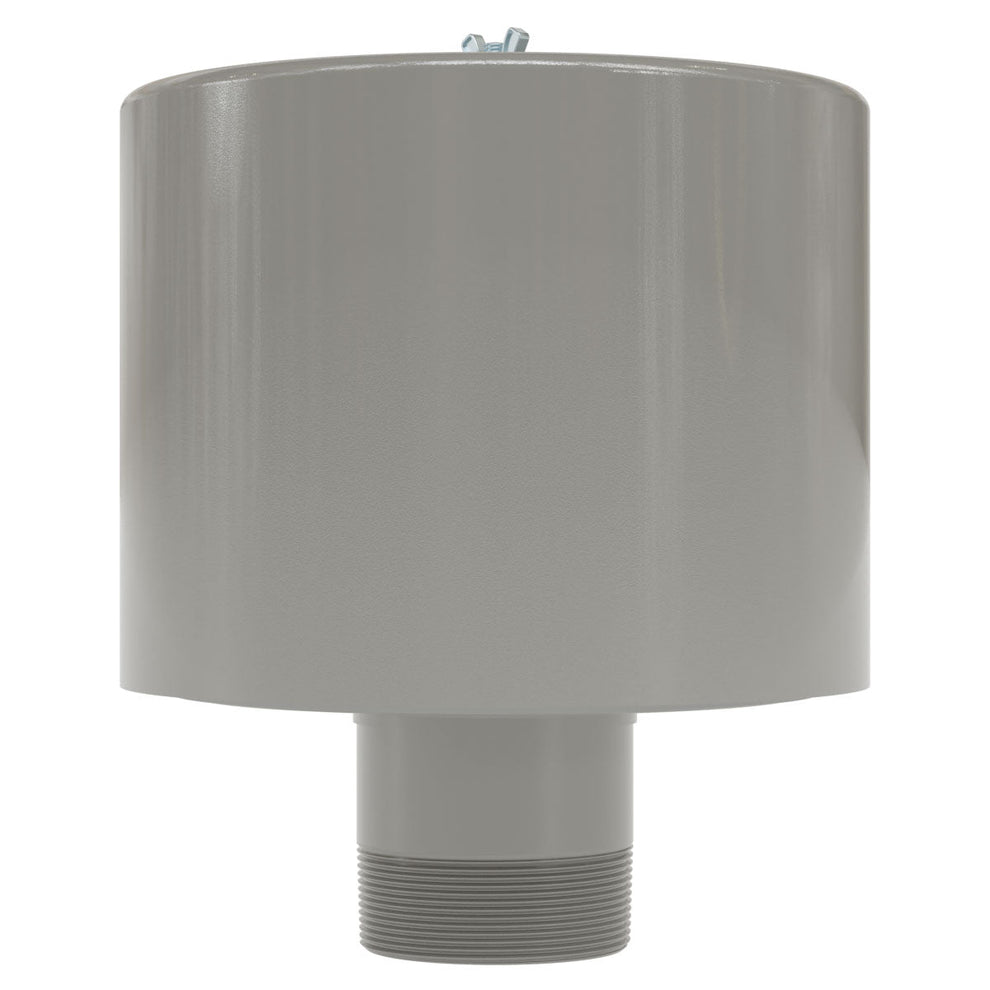

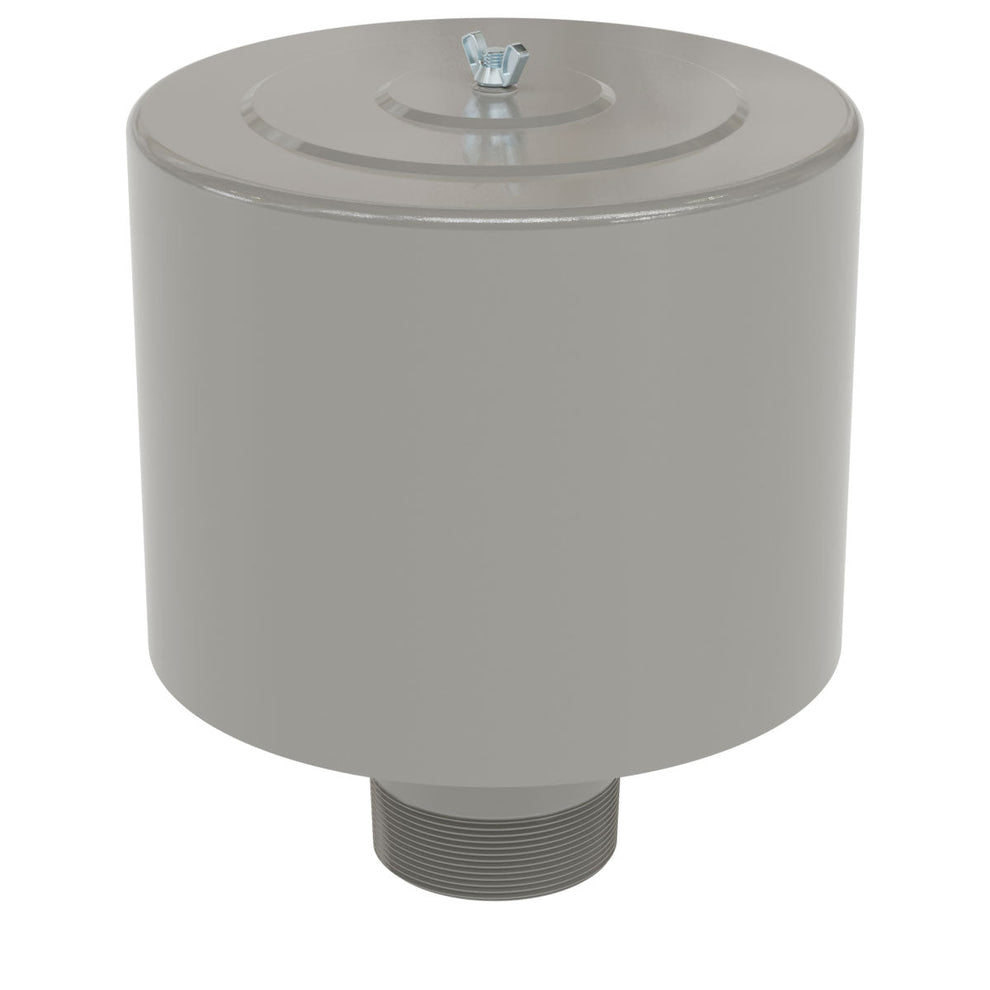

Solberg FS-245P-500 Air Inlet Filter Silencer with Weatherhood – 5" NPT, 5 Micron Polyester, 500 CFM

Product Description

Extreme High-Flow Industrial Filtration with Maximum Air Capacity & Noise Reduction

The Solberg FS-245P-500 Air Inlet Filter Silencer is engineered for large-scale industrial systems requiring extremely high airflow, efficient air filtration, and intake noise reduction. Featuring a fully integrated weatherhood and advanced tubular silencing technology, this unit ensures optimal performance with minimal pressure drop in demanding environments.

Key Features:

• High-efficiency polyester filter media with 99%+ filtration efficiency
• 5-micron filtration rating for fine particle removal
• Fully integrated weatherhood protects against dust, debris, and moisture
• Advanced tubular silencing design reduces intake noise while maintaining maximum airflow
• Low pressure drop design improves system efficiency
• Heavy-duty carbon steel construction with corrosion-resistant powder coating
• Replaceable filter element for extended service life
• Integrated gasket seal ensures leak-free performance

Specifications:

• Model: FS-245P-500
• Connection Size: 5" NPT (MPT)
• Flow Rate: Up to 500 CFM
• Filter Media: Polyester
• Micron Rating: 5 µm
• Efficiency: 99%+
• Material: Carbon Steel
• Finish: Corrosion-Resistant Gray Powder-Coated
• Operating Temperature: -15°F to 220°F
• Dimensions: Approx. 14" Diameter x 16" Height
• Weight: Approx. 30–35 lbs
• Noise Reduction: Approx. 5–15 dB

Applications:

• Large air compressors (piston & screw)
• Industrial vacuum pumps
• High-capacity blowers (PD & centrifugal)
• Pneumatic conveying systems
• Wastewater aeration systems
• Heavy-duty industrial environments

This filter silencer delivers extreme airflow capacity, fine filtration, and effective noise attenuation, making it ideal for large industrial systems that require reliable performance, long service life, and maximum efficiency.
