Product Description

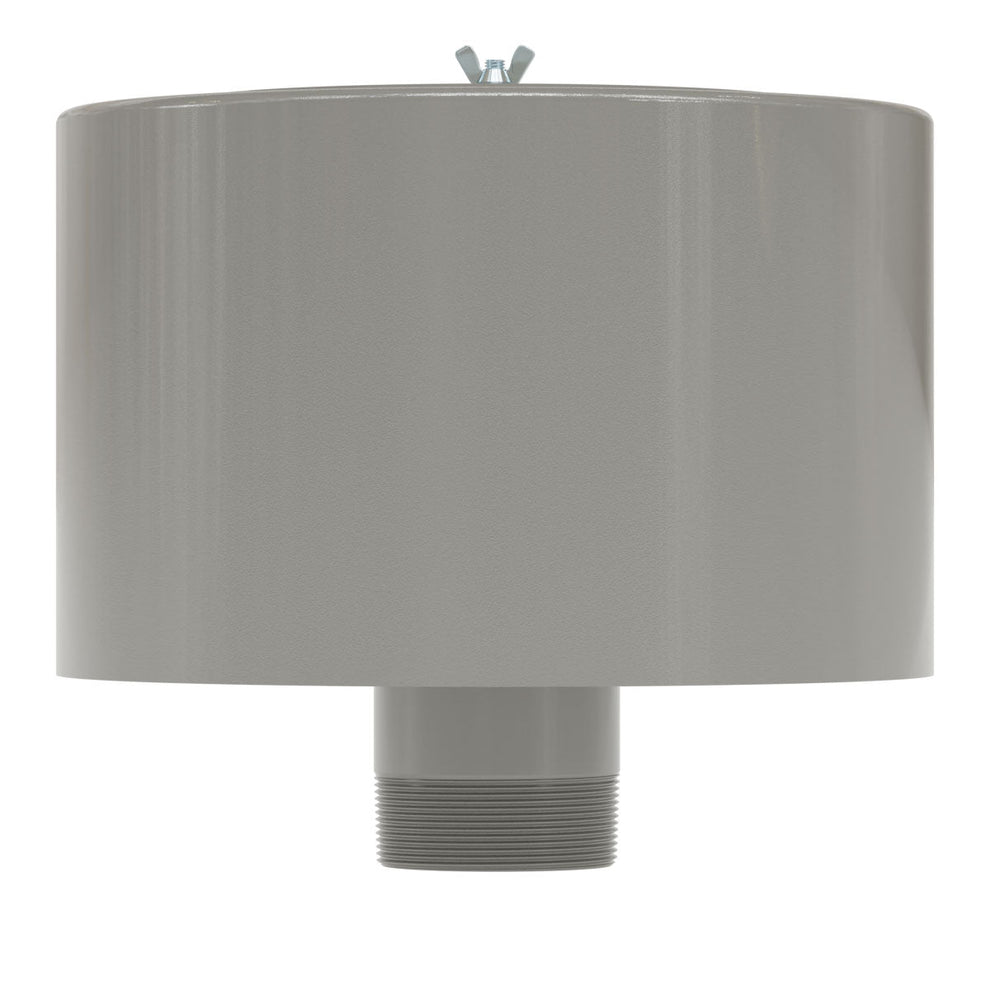

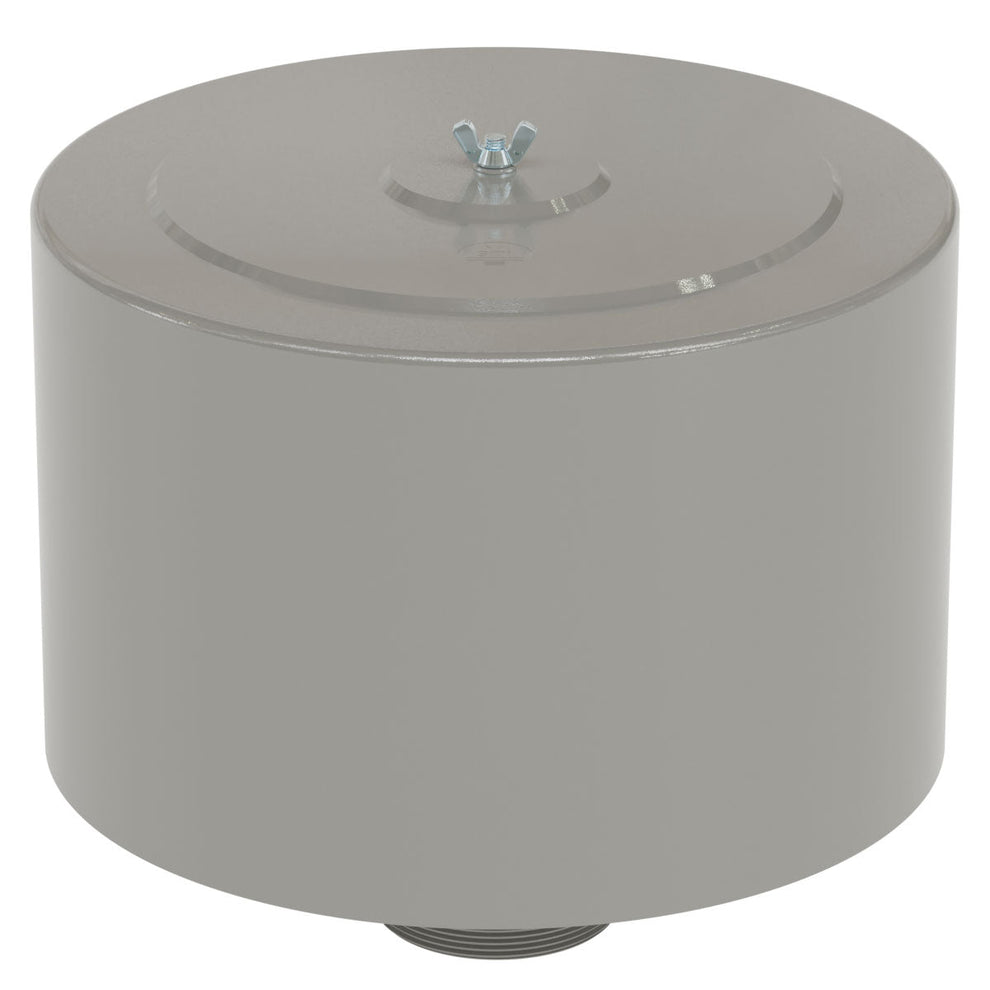

Solberg FS-274P-500 Inlet Filter Silencer
The Solberg FS-274P-500 Filter Silencer is a heavy-duty industrial air intake solution engineered for blowers, compressors, vacuum systems, and pneumatic conveying applications. Combining advanced silencing technology with high-efficiency filtration, this compact unit helps protect equipment while significantly reducing intake noise levels in demanding industrial environments.
Key Features
- High-efficiency paper filter element with 99%+ removal efficiency at 2 microns
- Integrated silencing technology reduces operational noise by approximately 15 dB
- Fully drawn weatherhood protects the filter element in outdoor and harsh environments
- Tubular silencing design maximizes airflow while minimizing pressure drop
- Heavy-duty carbon steel housing with corrosion-resistant gray powder-coated finish
- Removable weatherhood allows quick and easy filter servicing
- Designed for continuous-duty industrial applications
- Compatible with blowers, compressors, vacuum pumps, and pneumatic systems
Specifications
- Model: FS-274P-500
- Series: FS Series
- Connection Size: 5 Inch
- Connection Type: MPT / Threaded
- Filter Media: Paper Element
- Micron Rating: 2 Micron
- Filtration Efficiency: 99%+
- Maximum Flow Capacity: 800 SCFM
- Element Flow Rating: 1100 CFM
- Housing Material: Carbon Steel
- Finish: Gray Powder Coat
- Dimensions: 16 Inch OD x 14 Inch Height
- Approximate Weight: 36 lbs
- Operating Temperature Range: -15°F to 220°F (-26°C to 104°C)
Applications
- Industrial Blowers
- Rotary Screw Compressors
- Vacuum Pumps
- Pneumatic Conveying Systems
- Waste Water Aeration
- Hydraulic Breathers
- Industrial Workshops
- Severe Duty Industrial Environments
Benefits
- Protects critical equipment from airborne contaminants
- Improves operational efficiency with low restriction airflow design
- Reduces intake noise for quieter working environments
- Durable construction ensures long service life in industrial applications
- Easy maintenance minimizes downtime and servicing costs
The Solberg FS-274P-500 combines efficient intake filtration and superior sound attenuation into a rugged compact assembly, making it an ideal solution for demanding blower and compressor intake applications.
