Product Description

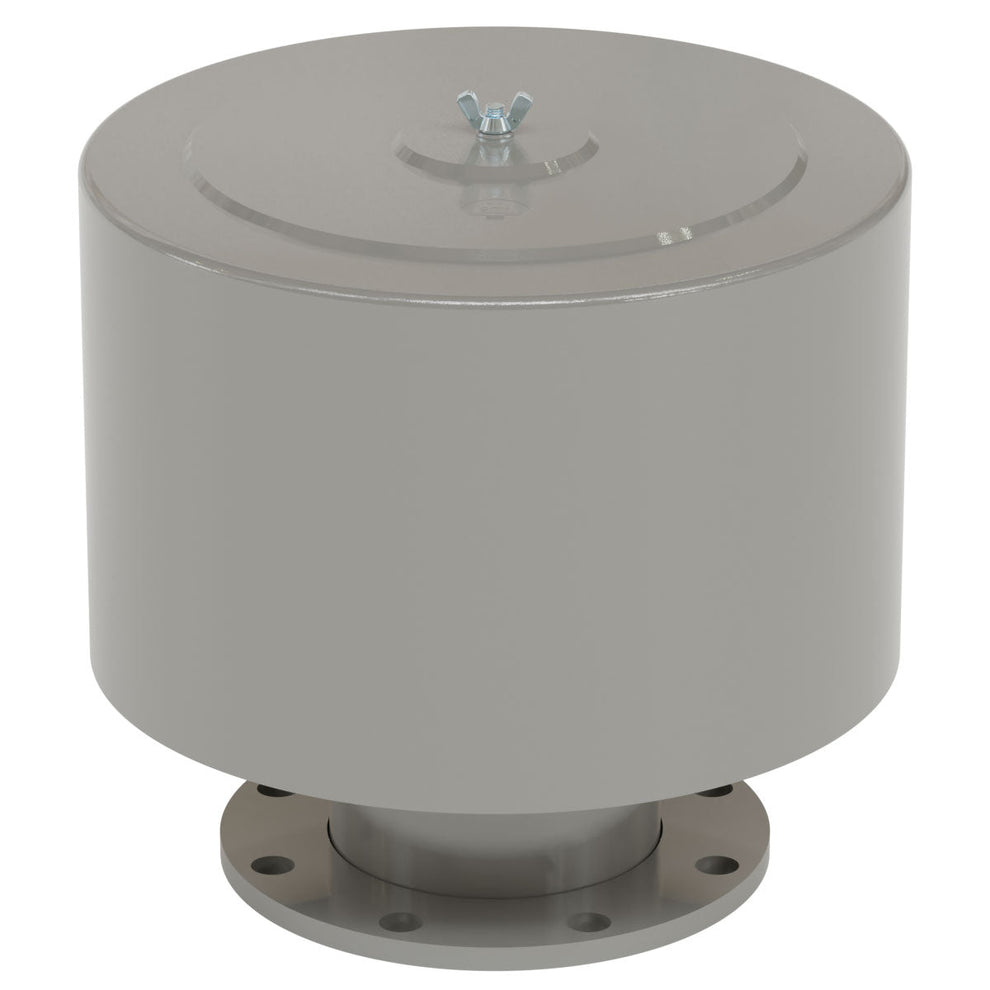

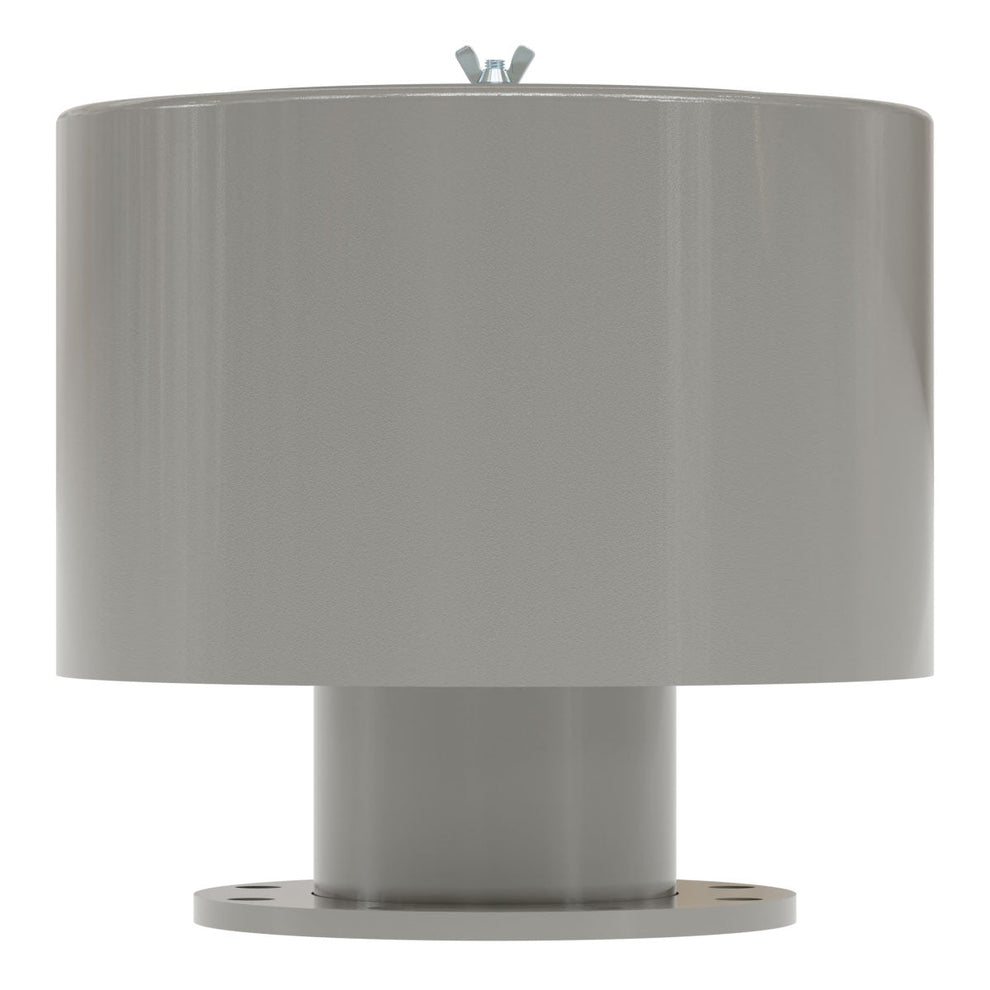

Solberg FS-274P-500F Inlet Filter Silencer
The Solberg FS-274P-500F Filter Silencer is a heavy-duty industrial air intake filtration and sound attenuation solution designed for blowers, compressors, vacuum pumps, and pneumatic conveying systems. Engineered with advanced tubular silencing technology and a high-efficiency paper filter element, this rugged assembly delivers reliable equipment protection while minimizing intake noise in demanding industrial environments.
Key Features
- High-efficiency paper filter media with 99%+ filtration efficiency at 2 microns
- Integrated tubular silencing technology reduces intake noise while maintaining high airflow performance
- Fully drawn weatherhood protects the filter element from rain, debris, and harsh outdoor conditions
- Heavy-duty carbon steel housing with corrosion-resistant gray powder-coated finish
- Low pressure drop airflow design improves system efficiency and reduces restriction
- Removable weatherhood allows quick and convenient filter servicing
- Designed for continuous-duty industrial applications
- Suitable for both indoor and outdoor installations
Specifications
- Model: FS-274P-500F
- Series: FS Series
- Connection Size: 5 Inch
- Connection Type: ANSI Flange Pattern
- Filter Media: Paper Element
- Micron Rating: 2 Micron
- Filtration Efficiency: 99%+
- Maximum Flow Capacity: 800 SCFM
- Element Flow Rating: 1100 CFM
- Housing Material: Carbon Steel
- Finish: Gray Powder-Coated
- Overall Dimensions: 16 Inch OD x 14 Inch Height
- Approximate Weight: 42 lbs
- Operating Temperature Range: -15°F to 220°F (-26°C to 104°C)
- Typical Noise Attenuation: Approximately 15 dB
Applications
- Industrial Blowers
- Rotary Screw Compressors
- Piston Compressors
- Vacuum Pumps
- Pneumatic Conveying Systems
- Waste Water Aeration
- Hydraulic Breathers
- Ash Handling Systems
- Construction & Contractor Equipment
- Industrial & Severe Duty Applications
Benefits
- Protects critical equipment from airborne contaminants and debris
- Reduces intake noise for quieter industrial operation
- Optimized airflow design minimizes restriction and improves efficiency
- Weather-resistant construction enhances durability in harsh environments
- Easy maintenance design helps reduce downtime and servicing costs
The Solberg FS-274P-500F combines efficient intake filtration, advanced sound attenuation, and rugged industrial durability into one compact assembly, making it an ideal solution for demanding blower and compressor intake applications.
