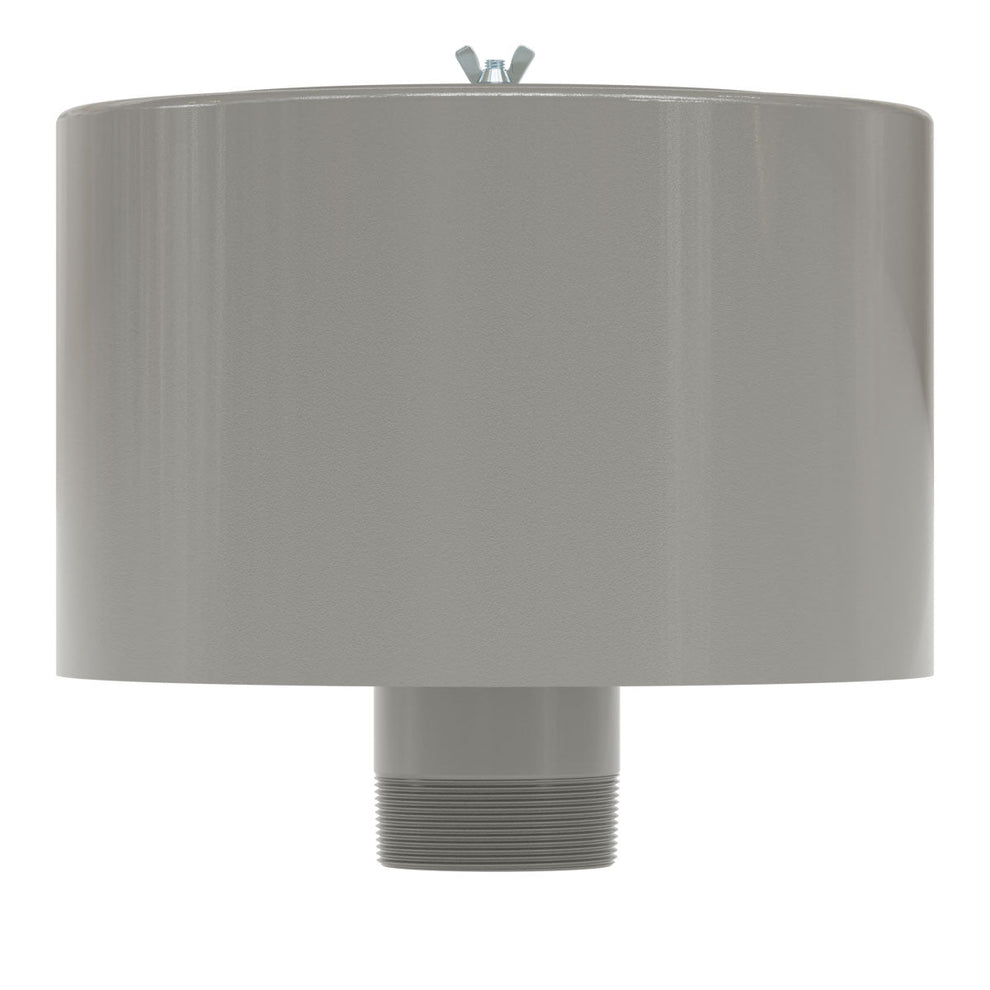

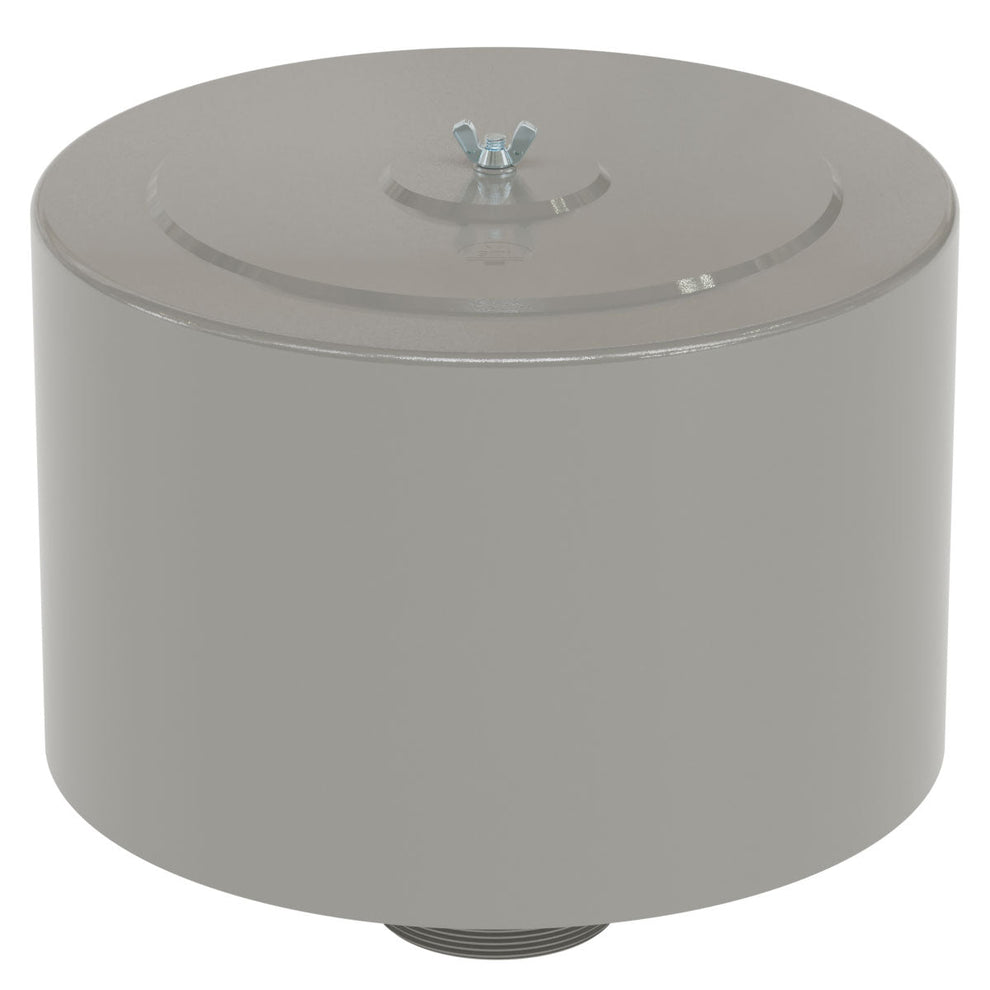

Solberg FS-275P-500 Air Inlet Filter Silencer with Weatherhood – 5" NPT, 5 Micron Polyester, 500 CFM

Product Description

Extreme High-Flow Industrial Filtration with Extended Capacity & Noise Reduction

The Solberg FS-275P-500 Air Inlet Filter Silencer is designed for large-scale industrial systems requiring extremely high airflow, efficient filtration, and intake noise reduction. Featuring an extended housing design, integrated weatherhood, and advanced tubular silencing technology, this unit ensures superior performance with minimal pressure drop in demanding environments.

Key Features:

• High-efficiency polyester filter media with 99%+ filtration efficiency
• 5-micron filtration rating for fine particle removal
• Fully integrated weatherhood protects against dust, debris, and moisture
• Extended housing design for increased dirt-holding capacity and longer service intervals
• Advanced tubular silencing reduces intake noise while maintaining high airflow
• Low pressure drop design improves system efficiency
• Heavy-duty carbon steel construction with corrosion-resistant powder coating
• Replaceable filter element for cost-effective maintenance

Specifications:

• Model: FS-275P-500
• Connection Size: 5" NPT (MPT)
• Flow Rate: Up to 500 CFM
• Filter Media: Polyester
• Micron Rating: 5 µm
• Efficiency: 99%+
• Material: Carbon Steel
• Finish: Corrosion-Resistant Gray Powder-Coated
• Operating Temperature: -15°F to 220°F
• Dimensions: Approx. 14" Diameter x 20" Height
• Weight: Approx. 38–42 lbs
• Noise Reduction: Approx. 5–15 dB

Applications:

• Large air compressors (piston & screw)
• Industrial vacuum pumps
• High-capacity blowers (PD & centrifugal)
• Pneumatic conveying systems
• Wastewater aeration systems
• Heavy-duty industrial environments

This filter silencer delivers extreme airflow capacity, enhanced dirt-holding capability, and effective noise attenuation, making it ideal for large industrial systems requiring long service intervals and reliable continuous operation.
