Product Description

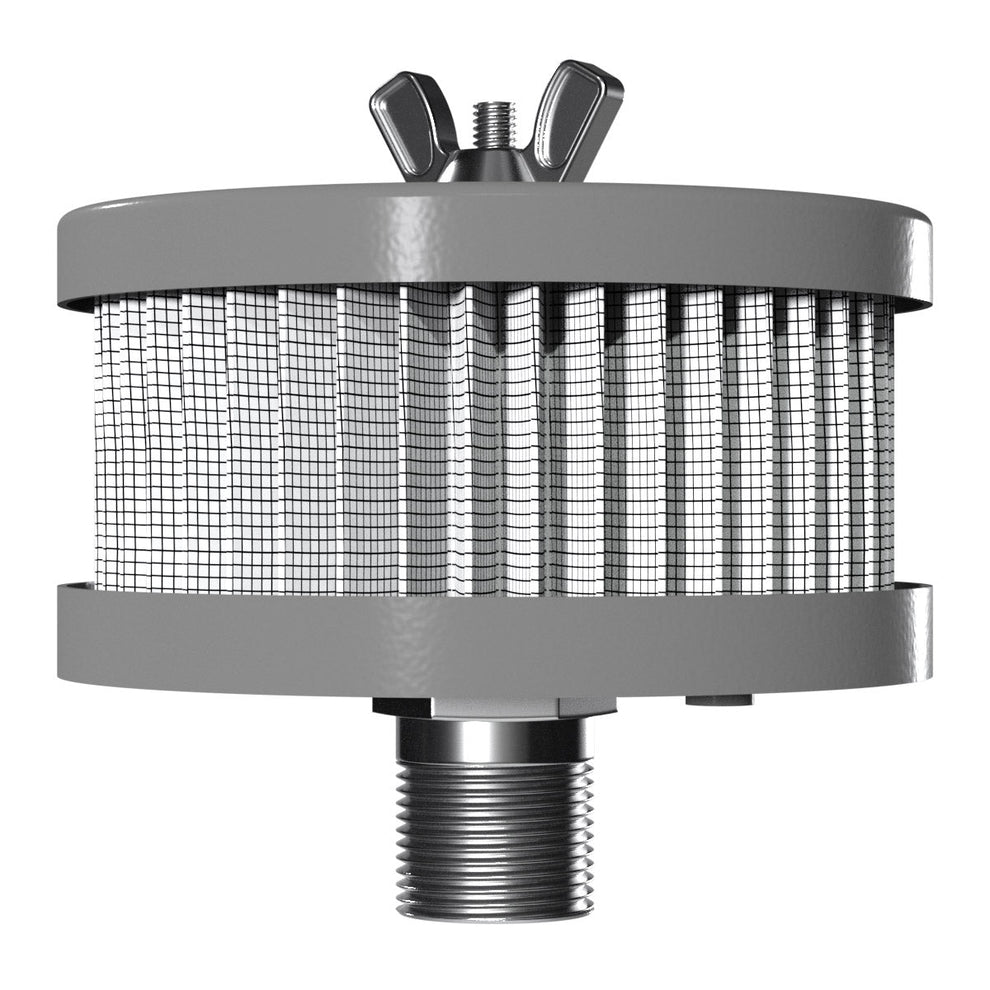

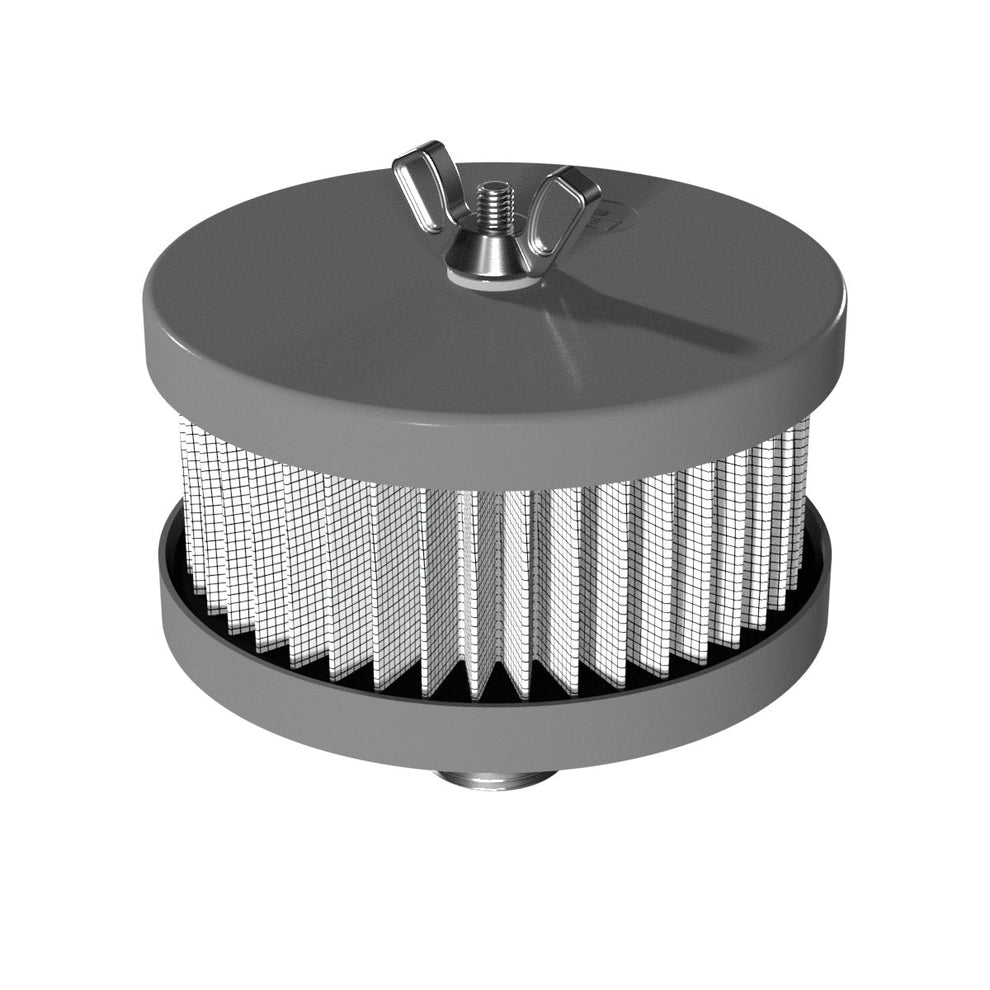

Solberg FT-15-100 Open Inlet Filter
The Solberg FT-15-100 is a compact open-style inlet filter engineered for compressors, regenerative blowers, vacuum pumps, and industrial pneumatic equipment requiring low restriction airflow and dependable particulate filtration. Equipped with a high-efficiency polyester filter element and rugged carbon steel construction, this industrial intake filter delivers reliable equipment protection and consistent airflow performance in demanding operating environments.
Key Features
- 1" MNPT threaded connection for industrial air intake systems
- Open element design for maximum airflow and minimal pressure restriction
- High-efficiency polyester filter media with 99%+ filtration efficiency at 5 microns
- Heavy-duty carbon steel construction for extended service life
- Corrosion-resistant gray powder coat finish for industrial durability
- Compact lightweight design for space-constrained installations
- Designed for airflow capacities up to 40 SCFM
- Continuous operating temperature range from -15°F to 220°F (-26°C to 104°C)
Applications
- Air compressors
- Regenerative blowers
- Vacuum pumps
- Pneumatic conveying equipment
- Industrial machinery air intake filtration
- Workshop and manufacturing air systems
- Low-flow industrial air applications
Specifications
- Model: FT-15-100
- Series: FT Series
- Connection Size: 1 Inch MNPT
- Filter Media: Polyester Element
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%+
- Maximum Flow Rate: 40 SCFM
- Housing Material: Carbon Steel
- Design: Open Element
- Overall Height: Approx. 4.5 Inches
- Outside Diameter: Approx. 4.6 Inches
- Nipple Length: Approx. 1.5 Inches
- Operating Temperature: -15°F to 220°F
- Approximate Weight: 1.2 lbs
- Replacement Element: 15™ Polyester Element
Benefits
- Provides dependable intake filtration for compressors and blowers
- Open design maximizes airflow while minimizing pressure drop
- Protects equipment from harmful airborne particulate contamination
- Compact construction allows installation in tight spaces
- Durable powder-coated steel housing resists corrosion and wear
- Simple maintenance with quick filter element replacement
The Solberg FT Series inlet filters are engineered for industrial applications requiring efficient particulate filtration, low restriction airflow, and dependable equipment protection in compact operating environments.
