Product Description

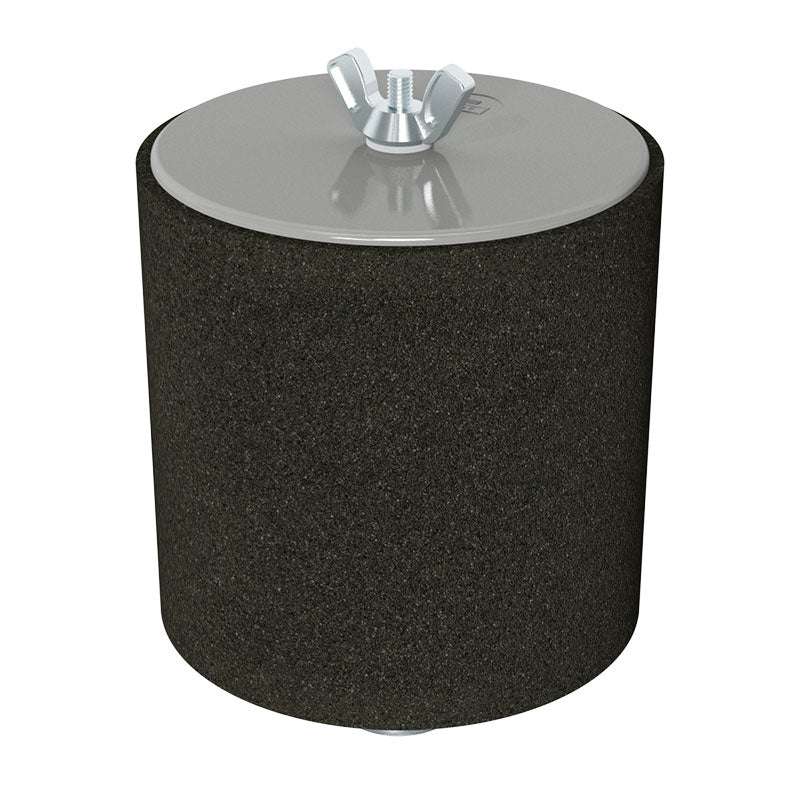

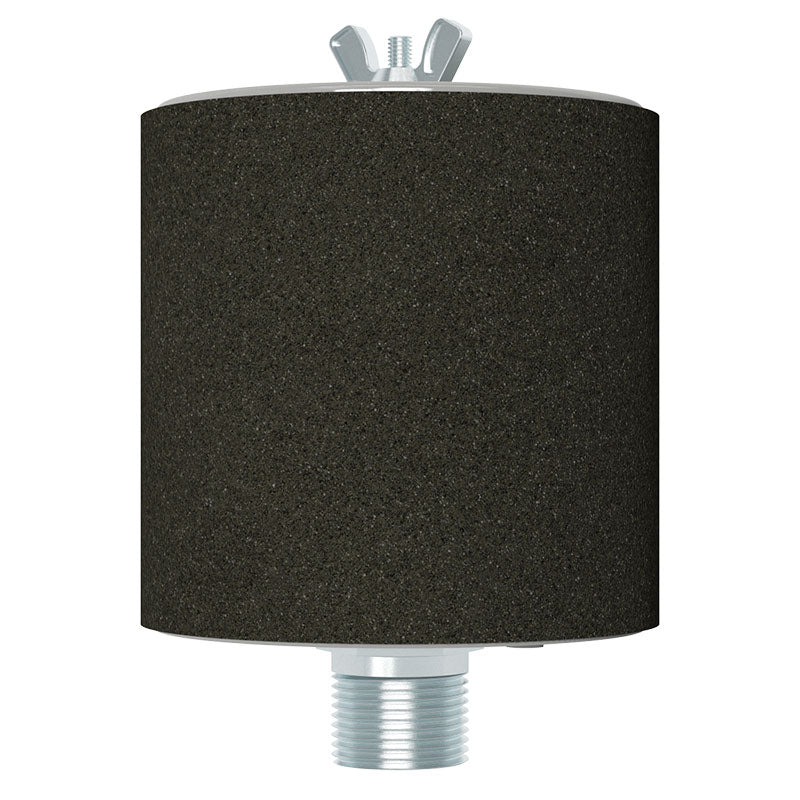

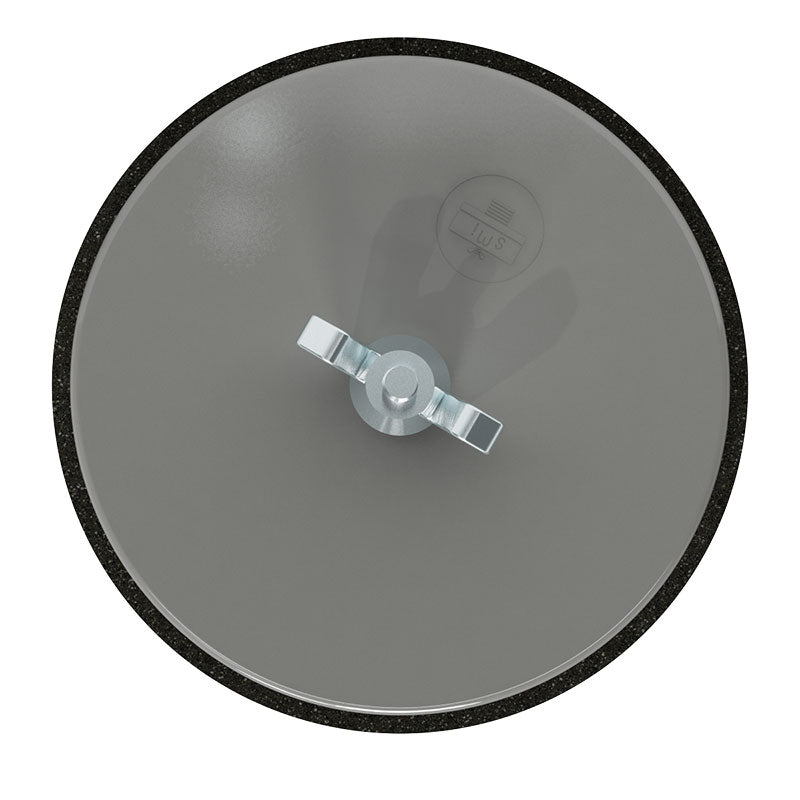

Solberg FT-19P-100 Open Inlet Filter
The Solberg FT-19P-100 is a high-performance open-style inlet filter designed for compressors, regenerative blowers, vacuum pumps, and industrial pneumatic equipment requiring low restriction airflow and efficient particulate filtration. Featuring a high-efficiency polyester filter element and rugged carbon steel construction, this industrial intake filter provides dependable equipment protection and optimized airflow performance in demanding operating environments.
Key Features
- 1" MNPT threaded connection for industrial air intake systems
- Open element design for optimal airflow and low restriction
- High-efficiency polyester filter media with 99%+ filtration efficiency at 5 microns
- Heavy-duty carbon steel construction for extended service life
- Corrosion-resistant gray powder coat finish for industrial durability
- Compact lightweight design for space-restricted installations
- Designed for airflow capacities up to 55 SCFM
- Continuous operating temperature range from -15°F to 220°F (-26°C to 104°C)
- Interchangeable filter element design for easy maintenance
Applications
- Air compressors
- Regenerative blowers
- Vacuum pumps
- Pneumatic conveying systems
- Industrial machinery air intake filtration
- Workshop and manufacturing air systems
- Hydraulic breathers and fine filtration systems
- Industrial and severe-duty environments
Specifications
- Model: FT-19P-100
- Series: FT Series
- Connection Size: 1 Inch MNPT
- Filter Media: Polyester Element
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%+
- Maximum Flow Rate: 55 SCFM
- Housing Material: Carbon Steel
- Housing Finish: Gray Powder Coat
- Design: Open / Exposed Element
- Overall Height: Approx. 6.9 Inches
- Outside Diameter: Approx. 4.6 Inches
- Suggested Service Height: 5 Inches
- Operating Temperature: -15°F to 220°F
- Approximate Weight: 2 lbs
- Replacement Element: 19P® Polyester Element
Benefits
- Provides dependable intake filtration for compressors and blowers
- Open element design maximizes airflow while minimizing pressure drop
- Protects equipment from harmful airborne particulate contamination
- Compact construction allows installation in confined spaces
- Durable powder-coated steel housing resists corrosion and wear
- Simple maintenance with quick filter element replacement
The Solberg FT Series inlet filters are engineered for industrial applications requiring efficient particulate filtration, low restriction airflow, and dependable equipment protection in compact operating environments.
