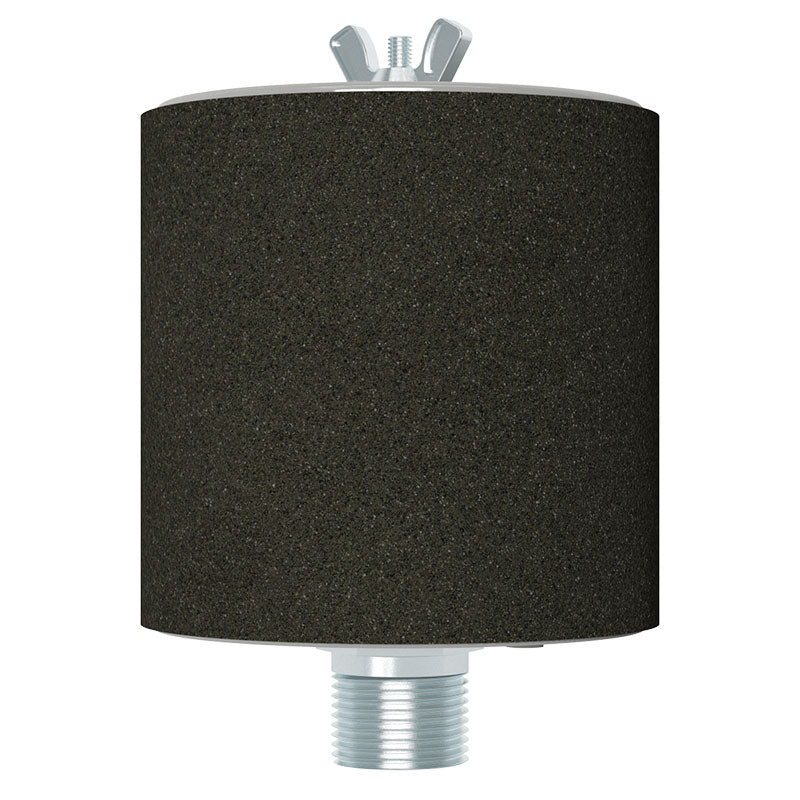

Solberg FT-19P-150 Open Inlet Filter, 1-1/2" MNPT, Polyester Element, 5 Micron

Product Description

Solberg FT-19P-150 Open Inlet Filter

The Solberg FT-19P-150 is a heavy-duty open-style inlet filter engineered for compressors, regenerative blowers, vacuum pumps, and industrial pneumatic systems requiring efficient particulate filtration with low airflow restriction. Featuring a high-efficiency polyester filter element and durable carbon steel construction, this industrial intake filter provides dependable equipment protection and optimized airflow performance in demanding industrial environments.

Key Features

• 1-1/2" MNPT threaded connection for industrial air intake systems
• Open element design for maximum airflow and low restriction
• High-efficiency polyester filter media with 99%+ filtration efficiency at 5 microns
• Heavy-duty carbon steel housing for long service life
• Corrosion-resistant gray powder coat finish for industrial durability
• Compact lightweight construction for easy installation and maintenance
• Designed for airflow capacities up to 120 SCFM
• Continuous operating temperature range from -15°F to 220°F (-26°C to 104°C)
• Replaceable filter element for simplified maintenance

Applications

• Air compressors
• Regenerative blowers
• Vacuum pumps
• Pneumatic conveying systems
• Industrial machinery air intake filtration
• Manufacturing and workshop air systems
• Hydraulic breather filtration
• Industrial and severe-duty operating environments

Specifications

• Model: FT-19P-150
• Series: FT Series
• Connection Size: 1-1/2 Inch MNPT
• Filter Media: Polyester Element
• Micron Rating: 5 Micron
• Filtration Efficiency: 99%+
• Maximum Flow Rate: 120 SCFM
• Housing Material: Carbon Steel
• Housing Finish: Gray Powder Coat
• Design: Open / Exposed Element
• Overall Height: Approx. 6.9 Inches
• Outside Diameter: Approx. 4.6 Inches
• Suggested Service Height: 5 Inches
• Operating Temperature: -15°F to 220°F
• Approximate Weight: 2.5 lbs
• Replacement Element: 19P® Polyester Element

Benefits

• Provides reliable intake filtration for compressors and blowers
• Open element design maximizes airflow while minimizing pressure drop
• Protects equipment from harmful airborne particulate contamination
• Compact design enables installation in restricted operating spaces
• Durable powder-coated steel housing resists corrosion and industrial wear
• Simple maintenance with quick filter element replacement

The Solberg FT Series inlet filters are engineered for industrial applications requiring efficient particulate filtration, low restriction airflow, and dependable equipment protection in compact operating environments.
