Solberg FT-231P-300 Open Inlet Filter, 3" MNPT, Polyester Element, 5 Micron

Product Description

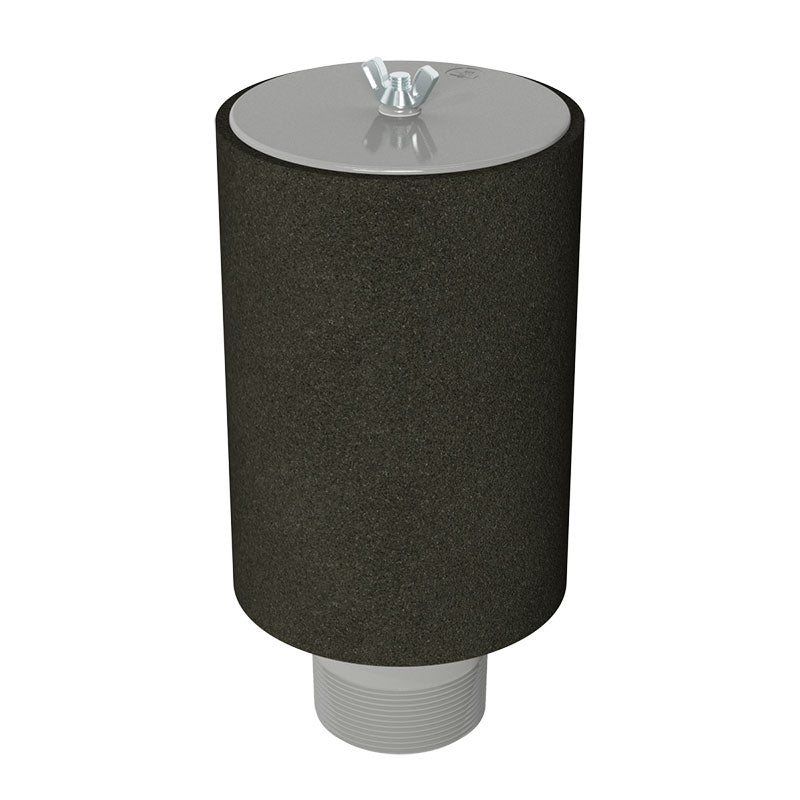

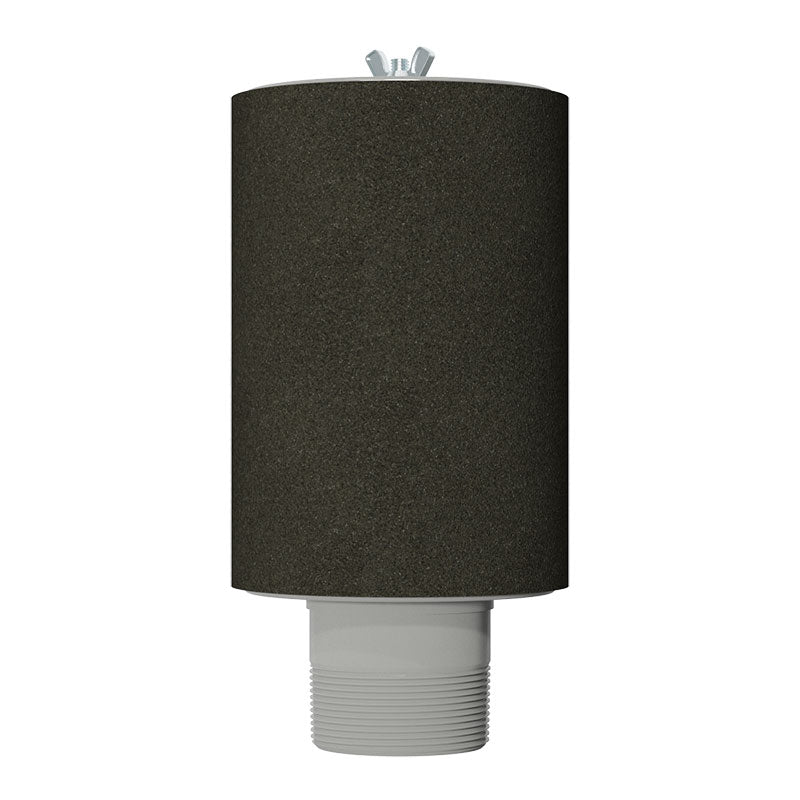

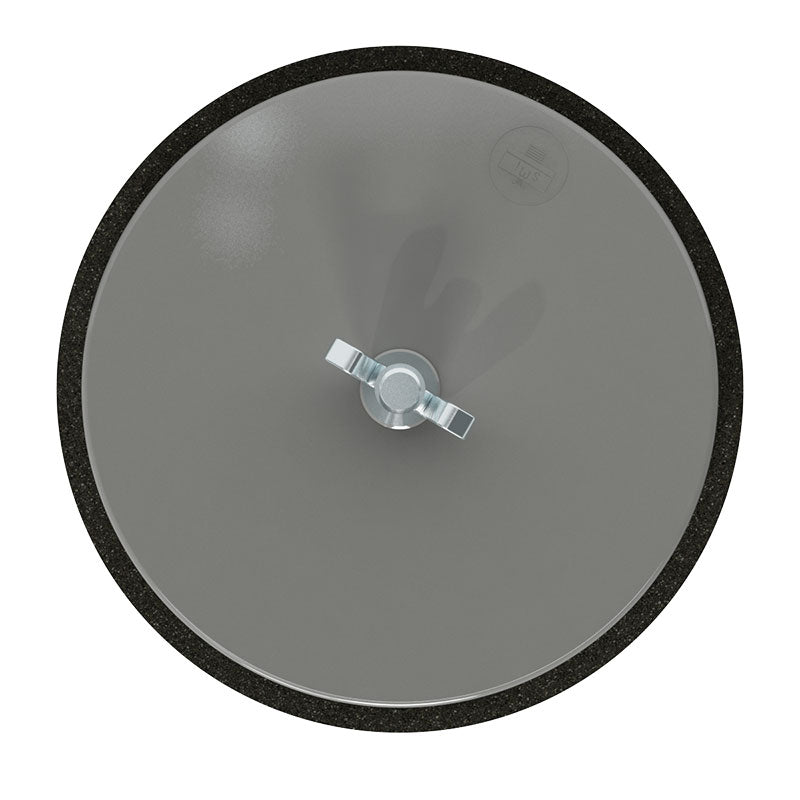

Solberg FT-231P-300 Open Inlet Filter

The Solberg FT-231P-300 is a heavy-duty open-style inlet filter engineered for industrial compressors, regenerative blowers, vacuum pumps, and pneumatic conveying systems requiring efficient particulate filtration and unrestricted airflow. Featuring a high-efficiency polyester filter element and rugged carbon steel construction, this industrial intake filter delivers dependable equipment protection and optimized airflow performance in demanding industrial environments.

Key Features

• 3" MNPT threaded connection for industrial air intake systems
• Open element design for maximum airflow and minimal pressure drop
• High-efficiency polyester filter media with 99%+ filtration efficiency at 5 microns
• Heavy-duty carbon steel housing for extended service life
• Corrosion-resistant gray powder coat finish for industrial durability
• Designed for airflow capacities up to 300 SCFM
• Low restriction airflow design improves equipment efficiency
• Continuous operating temperature range from -15°F to 220°F (-26°C to 104°C)
• Replaceable filter element for simplified maintenance

Applications

• Industrial air compressors
• Regenerative blowers
• Vacuum pumps
• Pneumatic conveying systems
• Industrial machinery air intake filtration
• Manufacturing and processing equipment
• Hydraulic breather systems
• Industrial and severe-duty operating environments

Specifications

• Model: FT-231P-300
• Series: FT Series
• Connection Size: 3 Inch MNPT
• Filter Media: Polyester Element
• Micron Rating: 5 Micron
• Filtration Efficiency: 99%+
• Maximum Flow Rate: 300 SCFM
• Housing Material: Carbon Steel
• Housing Finish: Gray Powder Coat
• Design: Open / Exposed Element
• Overall Height: Approx. 13.4 Inches
• Outside Diameter: Approx. 10 Inches
• Suggested Service Height: 7 Inches
• Operating Temperature: -15°F to 220°F
• Approximate Weight: 8 lbs
• Replacement Element: 231P® Polyester Element

Benefits

• Provides reliable intake filtration for compressors and blowers
• Open element design maximizes airflow while minimizing restriction
• Protects equipment from harmful airborne particulate contamination
• Durable powder-coated steel housing resists corrosion and industrial wear
• Compact construction enables installation in restricted operating spaces
• Simple maintenance with quick filter element replacement

The Solberg FT Series inlet filters are engineered for industrial applications requiring efficient particulate filtration, low restriction airflow, and dependable equipment protection in compact operating environments.
