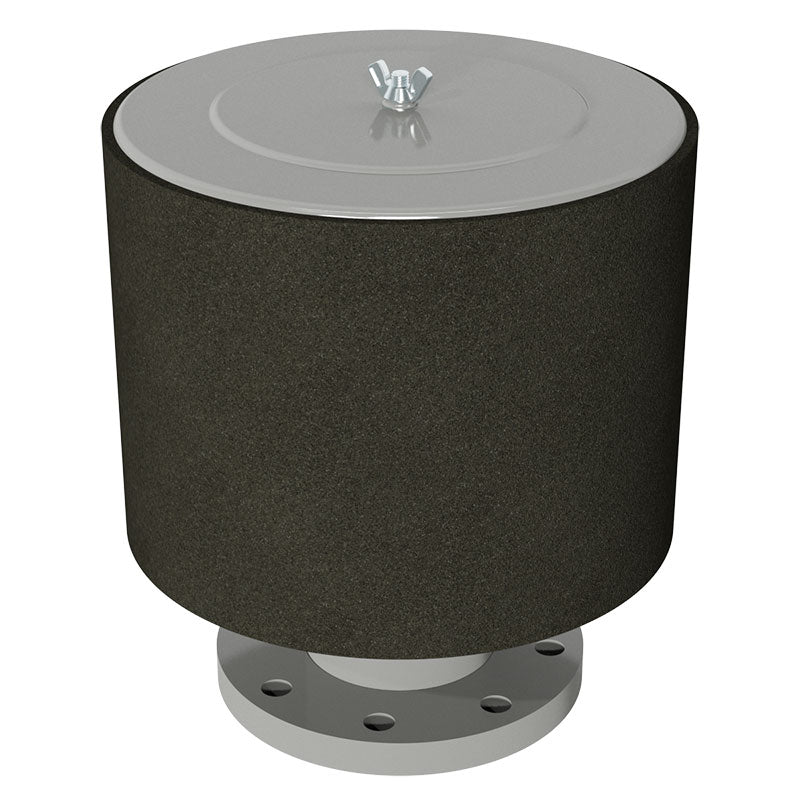

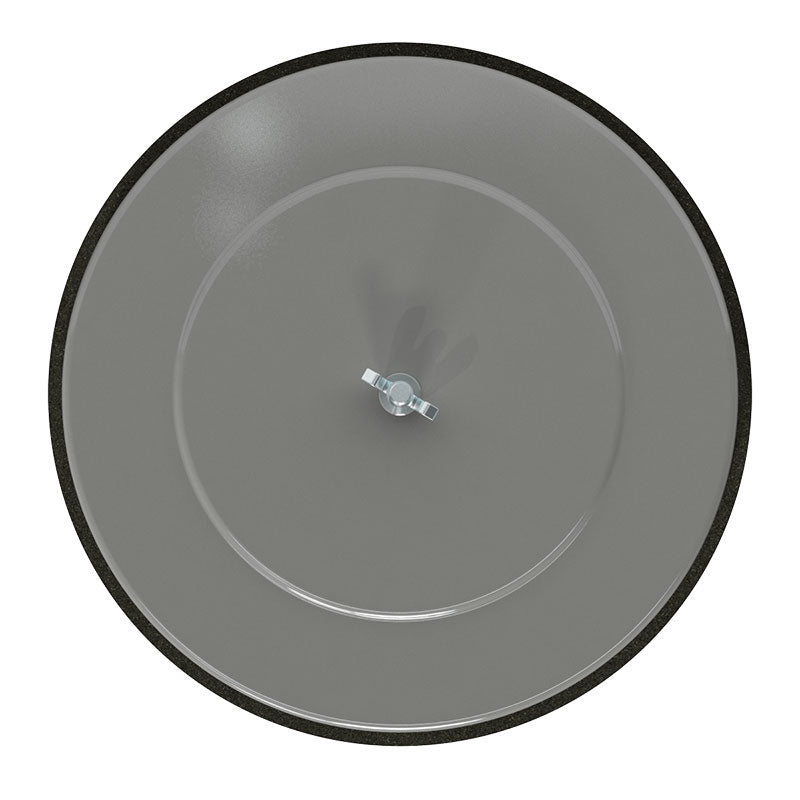

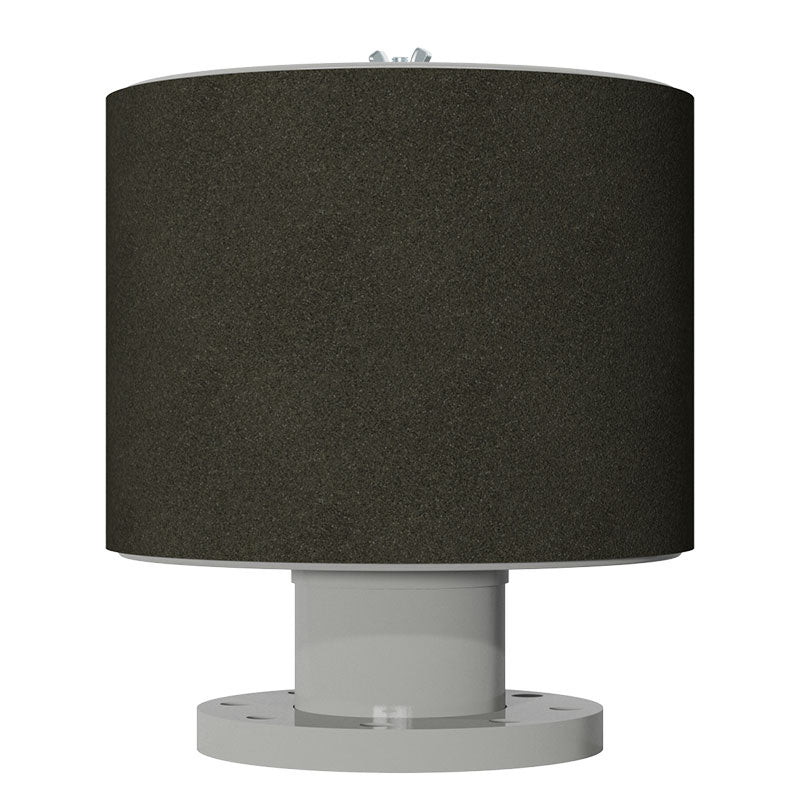

Solberg FT-274P-400F Open Inlet Filter, 4" Flange Connection, Polyester Element, 5 Micron

Product Description

Solberg FT-274P-400F Open Inlet Filter

The Solberg FT-274P-400F is a high-capacity open-style inlet filter designed for industrial compressors, regenerative blowers, vacuum pumps, and pneumatic conveying systems requiring efficient particulate filtration with minimal airflow restriction. Featuring a high-efficiency polyester filter element and durable carbon steel construction, this industrial intake filter delivers reliable equipment protection and optimized airflow performance for demanding industrial environments.

Key Features

• 4" flanged connection for industrial air intake systems
• Open element design for maximum airflow and low pressure drop
• High-efficiency polyester filter media with 99%+ filtration efficiency at 5 microns
• Heavy-duty carbon steel construction for long service life
• Corrosion-resistant gray powder coat finish for industrial durability
• Designed for airflow capacities up to 700 SCFM
• Low restriction airflow design improves compressor and blower efficiency
• Continuous operating temperature range from -15°F to 220°F (-26°C to 104°C)
• Replaceable filter element for simplified maintenance

Applications

• Industrial air compressors
• Regenerative blowers
• Vacuum pumps
• Pneumatic conveying systems
• Industrial machinery air intake filtration
• Manufacturing and processing equipment
• Hydraulic breather systems
• Industrial and severe-duty operating environments

Specifications

• Model: FT-274P-400F
• Series: FT Series
• Connection Size: 4 Inch Flange
• Filter Media: Polyester Element
• Micron Rating: 5 Micron
• Filtration Efficiency: 99%+
• Maximum Flow Rate: 700 SCFM
• Housing Material: Carbon Steel
• Housing Finish: Gray Powder Coat
• Design: Open / Exposed Element
• Overall Height: Approx. 16 Inches
• Outside Diameter: Approx. 12 Inches
• Suggested Service Height: 10 Inches
• Operating Temperature: -15°F to 220°F
• Approximate Weight: 14 lbs
• Replacement Element: 274P® Polyester Element

Benefits

• Provides dependable intake filtration for compressors and blowers
• Open element design maximizes airflow while minimizing intake restriction
• Protects equipment from harmful airborne particulate contamination
• Heavy-duty steel construction withstands industrial operating conditions
• Supports high airflow industrial applications with low pressure loss
• Simple maintenance with quick filter element replacement

The Solberg FT Series inlet filters are engineered for industrial applications requiring efficient particulate filtration, low restriction airflow, and dependable equipment protection in compact and heavy-duty operating environments.
