Product Description

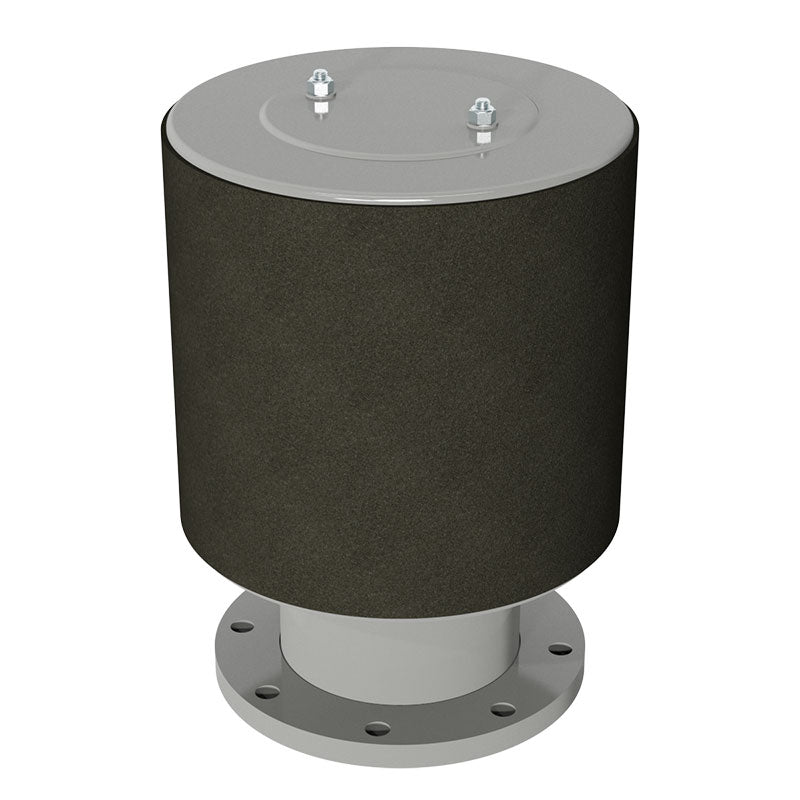

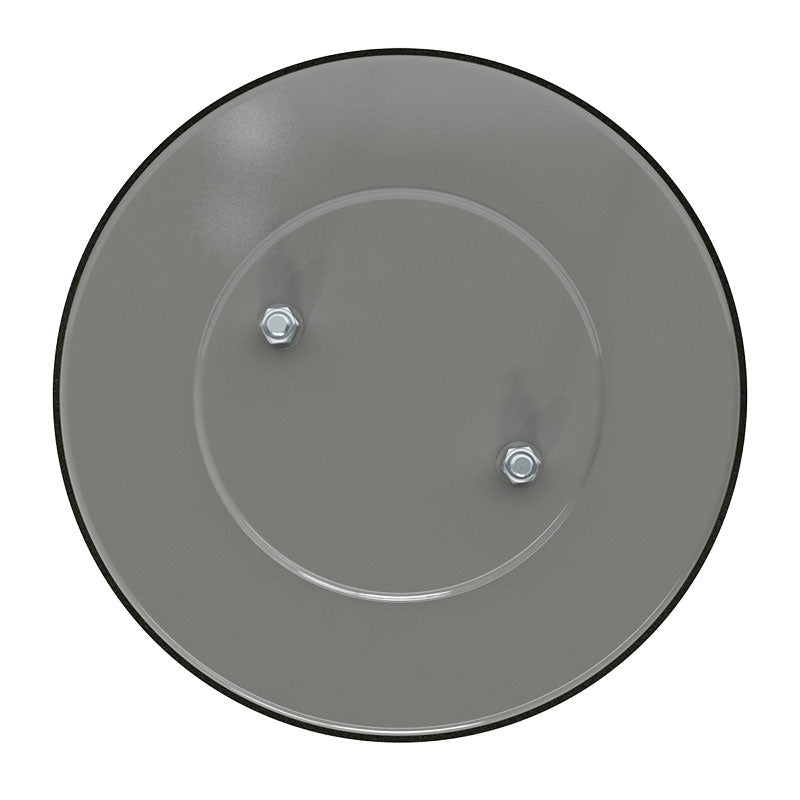

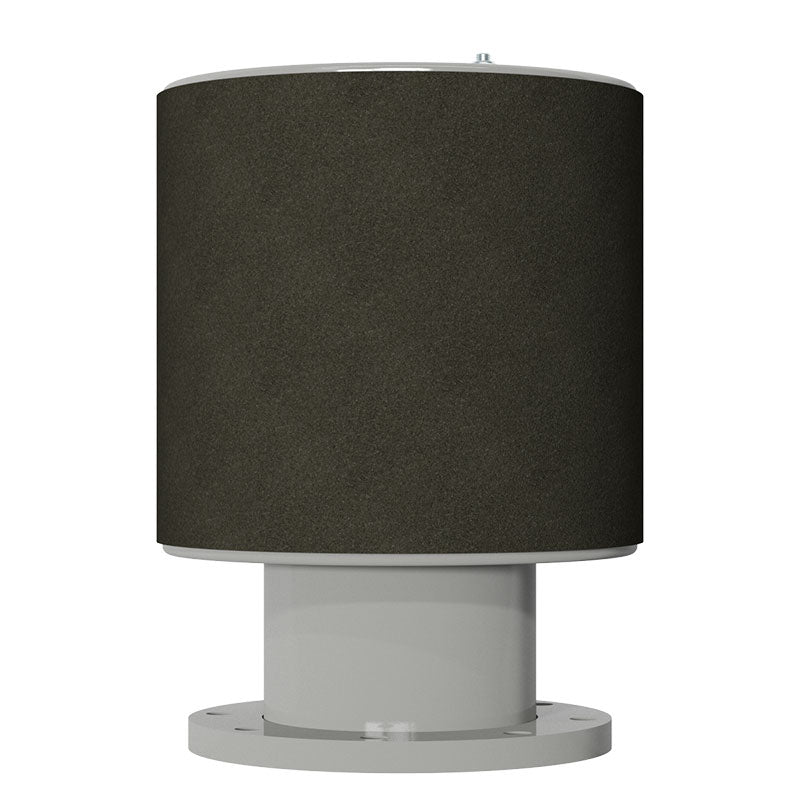

The Solberg FT-377P-800F is a heavy-duty exposed intake filter with weatherhood designed for high-flow industrial blowers, compressors, fans, and pneumatic conveying systems. Engineered for maximum airflow and low restriction, this FT Series filter delivers reliable particulate filtration and superior equipment protection in severe-duty industrial environments.
This model features an 8" ANSI flange connection and a high-efficiency polyester filter element rated at 5 microns with 99%+ filtration efficiency. Its rugged carbon steel construction with corrosion-resistant gray powder coat finish ensures dependable long-term durability and performance.
Key Features
- Model: FT-377P-800F
- 8" ANSI flange connection
- Exposed/open element design with weatherhood protection
- Maximum airflow capacity: 1800 SCFM
- Polyester filter media with 99%+ efficiency at 5 microns
- Heavy gauge carbon steel construction
- Corrosion-resistant gray powder coat finish
- Low restriction outlet pipe and center bracket design
- Continuous operating temperature: -15°F to 220°F (-26°C to 104°C)
- Recommended filter replacement differential: 15-20" H2O above initial pressure drop
- Pressure drop graphs available upon request
- Fully drawn weatherhood for outdoor and industrial protection
- Replacement filter element: 377P
- Approximate outside diameter: 14.75"
- Approximate overall height: 21"
Applications
- Positive displacement blowers
- Side channel blowers
- Piston compressors
- Screw compressors
- Pneumatic conveying systems
- Hydraulic breathers
- Waste water aeration systems
- Ash handling systems
- Dock controls
- Envelope manufacturing
- Industrial workshops
- Construction and contractor equipment
- Industrial and severe-duty environments
The Solberg FT Series exposed intake filters are engineered to provide superior airflow performance, efficient particulate removal, and long service life while reducing maintenance requirements in demanding industrial applications.
