Product Description

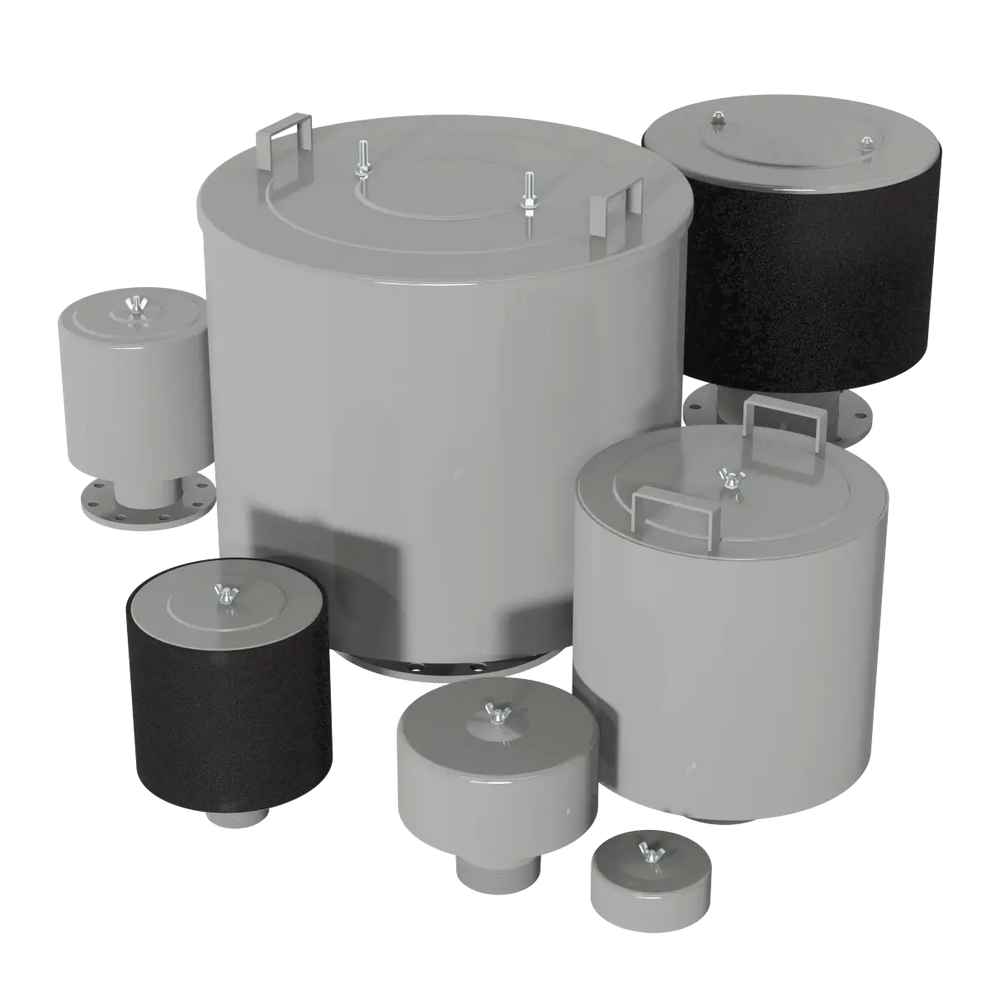

Solberg FT-384P-2-1200F Dual Inlet Filter
The Solberg FT-384P-2-1200F is an ultra high-capacity dual inlet filter engineered for industrial compressors, high-volume blowers, vacuum systems, and pneumatic conveying applications requiring exceptional airflow and highly efficient particulate filtration. Designed with dual 12" flanged connections, a high-efficiency polyester filter element, and rugged carbon steel construction, this industrial intake filter delivers superior equipment protection with minimal airflow restriction in demanding industrial environments.
Key Features
- Dual 12" flanged connections for ultra high-flow industrial air intake systems
- Open element design for maximum airflow and minimal pressure drop
- High-efficiency polyester filter media with 99%+ filtration efficiency at 5 microns
- Heavy-duty carbon steel housing for extended industrial durability
- Corrosion-resistant gray powder coat finish for harsh industrial environments
- Designed for airflow capacities up to 7,000 SCFM
- Dual inlet configuration supports balanced high-volume airflow
- Low restriction airflow design improves compressor and blower efficiency
- Continuous operating temperature range from -15°F to 220°F (-26°C to 104°C)
- Replaceable filter element for simplified and cost-effective maintenance
Applications
- Industrial air compressors
- High-capacity positive displacement blowers
- Vacuum pumps and vacuum systems
- Pneumatic conveying systems
- Bulk material handling systems
- Wastewater aeration systems
- Industrial machinery air intake filtration
- Manufacturing and processing facilities
- Power generation and heavy industrial operations
- Industrial and severe-duty operating environments
Specifications
- Model: FT-384P-2-1200F
- Series: FT Series
- Connection Size: Dual 12 Inch Flange
- Filter Media: Polyester Element
- Micron Rating: 5 Micron
- Filtration Efficiency: 99%+
- Maximum Flow Rate: 7,000 SCFM
- Housing Material: Carbon Steel
- Housing Finish: Gray Powder Coat
- Design: Open / Dual Inlet Exposed Element
- Overall Height: Approx. 26 Inches
- Outside Diameter: Approx. 27 Inches
- Operating Temperature: -15°F to 220°F
- Approximate Weight: 155 lbs
- Replacement Element: 384P® Polyester Element
Benefits
- Provides dependable intake filtration for ultra high-capacity compressors and blowers
- Dual inlet configuration supports maximum airflow with reduced restriction
- Protects equipment from harmful airborne particulate contamination
- Heavy-duty steel construction withstands severe industrial operating conditions
- Supports ultra-high airflow industrial applications with low pressure loss
- Simple maintenance with replaceable filter elements
The Solberg FT Series inlet filters are engineered for industrial applications requiring efficient particulate filtration, low restriction airflow, and dependable equipment protection in compact and heavy-duty operating environments.
